Datavideo Corporation TLM-700HD-S1
7" HD-SDI LED Backlit Monitor with Sony BP Battery Mount


Datavideo has designed the TLM-700HD Monitor Series for video professionals that insist on superior performance.
Learn More
Our Price: $649.00
Write the first review.
Datavideo Corporation TLM-700HD-S1
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Datavideo has designed the TLM-700HD Monitor Series for video professionals that insist on superior performance. Whether you use these monitors in combination with their switchers, in rack systems, in the field, or for in-studio editing, the TLM Monitor Series offers high-quality options for all your applications. This version is the TLM-700HD-S1 which makes it compatible with Sony BP-U60, BP-U30 DV, and EX1/EX3 batteries.

Datavideo’s TLM-700HD 7-inch HD/SD-SDI Monitor is a high definition or standard definition-ready color field monitor. This unit features HDMI, HD/SD-SDI, component and composite inputs, making it extremely versatile. The unit comes fully equipped with a standard V-mount, giving you the option to power the monitor using a universal battery from a range of manufacturers. Datavideo added a sunshade to the package, making it a flexible solution for in-the-field or in-studio applications. The NTSC/PAL auto-detect feature is great for smooth workflow, and Datavideo included more adjustment features for even more precise image control: an internal color bar, color temperature, color select and the “blue-only” mode. They are all perfect for calibrating your picture for the best image possible. With its rugged metal design and range of connections, the TLM-700HD is a huge value packed into a small package.

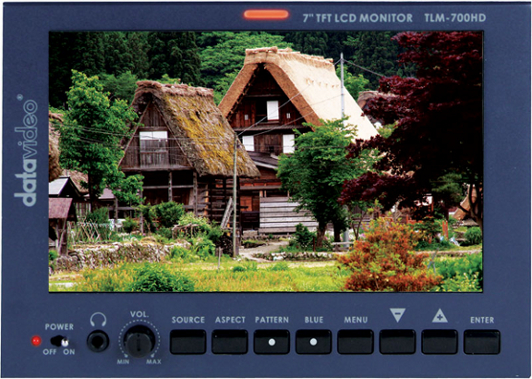

NOTE: Product shown in image is for illustrative purposes only. Actual product uses a Sony BP Series battery.

Datavideo TLM-700HD Features:

  • Supports Many Input Formats: TLM-700HD supports HDMI,HD/SD-SDI, Component, and Composite inputs, making it very flexible.
  • Included Sunshade: A Sunshade is included for easy viewing in bright working environments.
  • NTSC/PAL Auto-Detect: NTSC and PAL formats areautomatically detected with the TLM-700HD.
  • More Adjustment Features: Additional adjustments allow for even more precise image control.
  • Additional Features include:
    • 7" 16:9 Wide Screen Panel
    • Resolution: 800 x 480 dots
    • View Angle (V)+60/-40°, (H)+60/-60°
    • HD/SD-SDI, YUV, HD-YUV, HDMI & CV Input
    • Internal color bar
    • Blue only function
    • Audio indicator for SDI, HDMI
    • Safe Area indicator
    • VITC time code display
    • Dual colour tally light indicator
    • Brightness, Contrast, Color, Tint Adjustable
    • Color Temp* adjustable
    • Audio Level indicators
    • NTSC / PAL Auto Switching
    • 4:3 / 15:9 / 16:9 switchable

NOTE: *Can be set to 9300, 7500, 6500, 5400 or USER RGB values.

Datavideo TLM-700HD Specifications:

  • Interface:
    • 1x HD/SD-SDI input (SMPTE 272M-C 1.5Gbps, 270Mbps with Embedded Audio)
    • 1x Component Y.U.V Sony Betacam Spec
    • 1x CV input
    • 1x HDMI input
    • 1x D-Sub 15 Pin Plug (Tally Light Signal)
  • HD/SD-SDI:
    • Standard SMPTE 259M-C (270Mbps - 525/625
    • Component Video) and SMPTE 292M (1.485/1.001 Gbps)
    • Connector BNC (IEC 169-8)
    • Impedance 75 ohm
  • Return Loss:
    • HD > 15 dB (5 MHz to 750 MHz)
    • > 10 dB (750 MHz to 1.5 GHz)
    • SD > 15 dB (5 MHz to 270 MHz)
    • Equalization 200 m Belden 8281 cable at 270 Mbps; 100 m (typical) of Belden 1694A at 1.485 Gbps
  • CV:
    • Bandwidth: > 5.0MHz
    • Differential of Gain (DG)<3%
    • Differential of Phase (DP)<3°
    • S/N: > 50 dB
  • YUV:
    • Bandwidth: > 5.2MHz
    • Differential of Gain (DG)<3%
    • S/N: > 50 dB
    • HDMI: Supports HDMI 1.1
  • Operating Temperature: 0°C to 40°C (32°F to 102°F)
  • Humidity:  10% to 90% (non condensing)
  • Firmware: SVN 1.6
  • Dimension & Weight:
    • 187mm (W) x 132mm (H) x 72mm (D) / 7.36" (W) x 5.20" (H) x 2.84" (D)
    • 1.2Kgs / 2.65 lbs.
  • Power:  DC 12V / 1.5A
