CAD Audio GXLVHBJ
VHF Wireless Combo System- Handheld And Bodypack Microphone System, J Frequency Band

OUR PART #:  GXLVHBJ

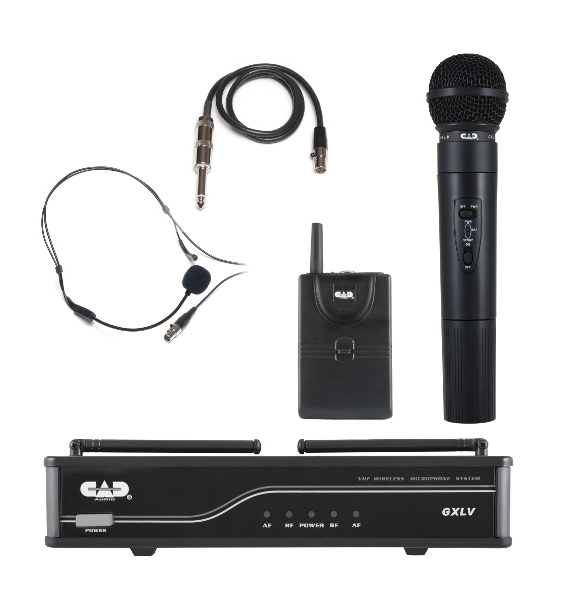

The CAD Audio GXLVHBJ is a VHF wireless combo system with handheld and bodypack microphone system with J frequency band.
Learn More
Our Price: $119.00
List Price: $169.00
You save 30%!
Write the first review.
CAD Audio GXLVHBJ
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The CAD Audio GXLVHBJ is a VHF wireless combo system with handheld and bodypack microphone system with J frequency band. GXLVHBH comes with two discrete channels of wireless packaged in one receiver chassis. Each channel has RF and AF indicator lights that indicate the presence of connectivity and audio source. VHF frequency operation is used for increased operating range. GXLVHBH also features an advanced dipole antenna technology for increased operating range.

CAD Audio GXLVHBJ Features:

  • Three output options on the receiver for maximum performance and flexibility of use.
  • Professional balanced XLR discrete
  • Professional balanced XLR mixed output
  • Professional 1/4 inch output for easy output to aguitar amp or mixer equipped with 1/4 inch input connections.
  • Handheld transmitter outfitted with on/off and mute function for flexibility of use.
  • Battery life of  > 10 hrs
  • Handheld transmitter features battery life indicator.
  • All Bodypack systems ship with WXGTR guitar cable and WXHW condenser headworn mic included in the system.

CAD Audio GXLVHBJ Specifications:

  • RXGXLV Receiver
    • Frequency Band: VHF
    • Frequency Response: 50 Hz – 18 KHz
    • Dynamic Range: >100 dB
    • Sensitivity: -105 dB
    • Output Connectors: (2) XLR Balanced, 1 TRS 1/4”
  • TXGXLBV Body Pack Transmitter
    • Transmit Power: 10 mW
    • Power Requirements: 9 V battery
    • Battery Life: >10 hours (alkaline)
    • Connector: Accepts TA4F-type
  • TXGXLHV Handheld Transmitter
    • Operating Principal: Dynamic Unidirectional Capsule
    • Sensitivity: -26 dBV (50 mv) @ 1 Pa
    • Transmit Power: 10 mW
    • Power Requirements: 9 V battery
    • Battery Life:  > 10 hours (alkaline)

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
