CAD Audio GXLUHBK
UHF Wireless Combo System- Handheld and Bodypack Microphone System K Frequency Band

OUR PART #:  GXLUHBK

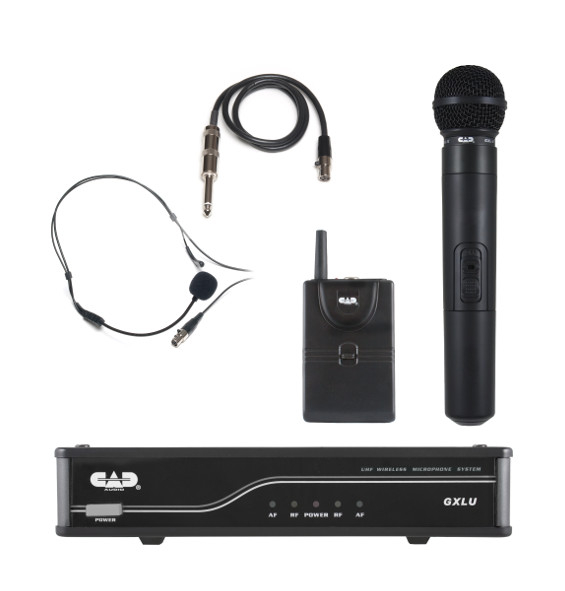

The CAD Audio GXLUHBK is a UHF wireless combo system with a handheld and bodypack microphone system and K frequency band.
Learn More
Our Price: $179.00
List Price: $259.00
You save 31%!
Write the first review.
CAD Audio GXLUHBK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The CAD Audio GXLUHBK is a UHF wireless combo system with a handheld and bodypack microphone system and K frequency band. The GXLUHBK features two discrete channels of wireless packaged in one receiver chassis, and compact discrete antenna that recess when not in us. Each channel has RF and AF indicator lights that indicate the presence of connectivity and audio source.

CAD Audio GXLUHBK Features:

  • UHF Frequency Operation
  • Three output options on the receiver for maximum performance and flexibility of use
    • Professional balanced XLR discrete
    • Professional balanced XLR mixed output
    • Professional 1/4 inch output for easy output to a guitar amp or mixer equipped with 1/4 inch input connections
  • Handheld transmitter outfitted with mute and on positions for flexibility of use
  • Battery life of  > 10 hrs
  • Handheld transmitter features battery life indicator
  • All Bodypack systems ship with WXGTR guitar cable and WXHW condenser headworn mic included in the system

CAD Audio GXLUHBK Specifications:

  • RXGXLU Receiver
    • Frequency Band: UHF
    • Frequency Response: 50Hz – 18KHz
    • Dynamic Range: >105 dB
    • Sensitivity: -105 dB (12dB SINAD)
    • Output Connectors: (2) XLR Balanced, 1 TRS 1/4”
  • TXGXLUB Body Pack Transmitter
    • Transmit Power: 10mW
    • Power Requirements: “AA” size alkaline or rechargeable batteries
    • Battery Life: >10 hours (alkaline)
    • Connector: Accepts TA4F-type
  • TXGXLUH Handheld Transmitter
    • Operating Principal: Dynamic Unidirectional Capsule
    • Sensitivity: -33 dBV (22mv) @ 1Pa
    • Transmit Power: 10mW
    • Power Requirements: “AA” size alkaline or rechargeable batteries
    • Battery Life: >10 hours (alkaline)

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
