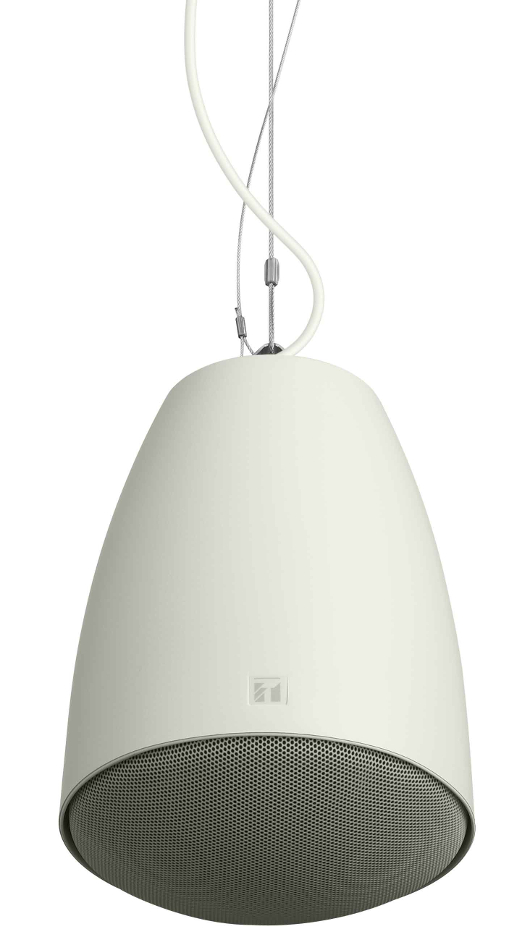

TOA PE-304WU 5" Pendant Speaker System, 30W, White Image 1
TOA PE-304WU 5" Pendant Speaker System, 30W, White
Our Price: $200.30
List Price: $247.80
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Designed for applications that require a suspended speaker from a high ceiling, the TOA PE-304WU pendant speaker delivers clear sound for BGM and mass notification applications. The bass-reflex enclosure with a 5“ cone-type woofer and a balanced-dome tweeter has a stylish design that blends with architecture and decor everywhere they are installed.

Includes:

  • GRIPPLE No. 1 x1
  • GRIPPLE No. 2 x1
  • Release Key (for GRIPPLE) x1
  • Safety Wire (0.06") x1
  • Hanging wire (0.08") x1
  • Speaker Cable (4-core FPL listed cable 15.09 ft) x1

Features:

  • Remarkably lightweight with stylish design inspired by modern lighting fixtures
  • Ideally suited for BGM & mass notification announcements
  • 8Ω and 25V / 70V / 100V operation
  • Input impedance is easily changed with a rotary switch on the top of the speaker
  • Includes GRIPPLE® hanging wire & safety wire pre-attached, for faster, easier and more secure installation

Specifications:

  • Enclosure: Bass reflex type
  • Rated Input: 30W (100V, 70V line, 8Ω), 3.7W (25V line)
  • Rated Impedance:
    • 100V Line: 330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1.3W)
    • 70V Line: 170Ω (30W), 330Ω (15W), 1kΩ (5W), 3.3kΩ (1.5W), 10kΩ (0.6W)
    • 25V Line: 160Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W), 10kΩ (0.1W)
    • Low Impedance: 8Ω
  • Sensitivity (1W @ 1m): 90dB (330Hz - 3.3kHz, pink noise)
  • Frequency Response: 95Hz - 20kHz (-10dB)
  • Speaker Component: 5" (12cm) cone-type + balanced dome tweeter (coaxial)
  • UL Code: UL1480 UUMW, ULC-S541
  • Operating Temperature: 14°F to 122°F
  • Finish:
    • Enclosure: ABS resin, white
    • Grille: Surface-treated steel plate mesh, white, paint
  • Dimensions: 7.32" x 10.83" (186mm x 275mm)(not including wires and cable)
  • Weight: 2kgs (not including wires and cable)
