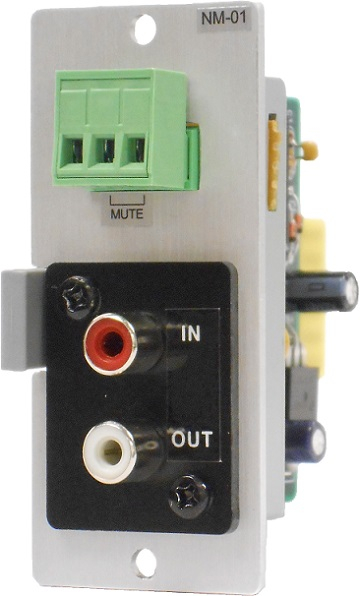

TOA NM-01
900 Series Noise Masking Module

OUR PART #  NM-01-AM

Our Price: $281.75
List Price: $348.66
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TOA NM-01 is a noise masking module to be used in conjunction with TOA’s 9000M2, 900, 700 and BG-2000 series amplifiers. This module generates a noise source to be used for sound masking and audio privacy applications. Such applications include open-plan office environments or smaller spaces where distracting or private conversations need to be made unintelligible. The module allows connection of optional external signal processing equipment (e.g. an equalizer), as required. A simple contact allows for muting of this noise source, if desired.

TOA NM-01 Specifications:

  • Power Source: 24 V DC (Supplied from amplifier)
  • Current Consumption: 10mA
  • Output Level (to amplifier): 300mV
  • Noise Type: Analog random pink noise
  • Mute Function: Dry contact, normally open (close to mute)
  • Input: 10 kOhms, RCA pin jack
  • Output: 150mV, 600>, RCA pin jack
  • Dimensions (WxHxD): 1.38” x 3.07” x 3.46” (35mmx 78mm x 88mm)
  • Weight: 0.14 lb (64g)

TOA NM-01
900 Series Noise Masking Module

OUR PART #  NM-01-AM

Product Information:

The TOA NM-01 is a noise masking module to be used in conjunction with TOA’s 9000M2, 900, 700 and BG-2000 series amplifiers. This module generates a noise source to be used for sound masking and audio privacy applications. Such applications include open-plan office environments or smaller spaces where distracting or private conversations need to be made unintelligible. The module allows connection of optional external signal processing equipment (e.g. an equalizer), as required. A simple contact allows for muting of this noise source, if desired.

TOA NM-01 Specifications:

  • Power Source: 24 V DC (Supplied from amplifier)
  • Current Consumption: 10mA
  • Output Level (to amplifier): 300mV
  • Noise Type: Analog random pink noise
  • Mute Function: Dry contact, normally open (close to mute)
  • Input: 10 kOhms, RCA pin jack
  • Output: 150mV, 600>, RCA pin jack
  • Dimensions (WxHxD): 1.38” x 3.07” x 3.46” (35mmx 78mm x 88mm)
  • Weight: 0.14 lb (64g)
