TOA IR-802PA Infrared Wireless Classroom Assistive Listening System

OUR PART #: IR802PA MFR #: IR-802PA

Copied to clipboard

Assembled specifically for classroom use... ...Read more

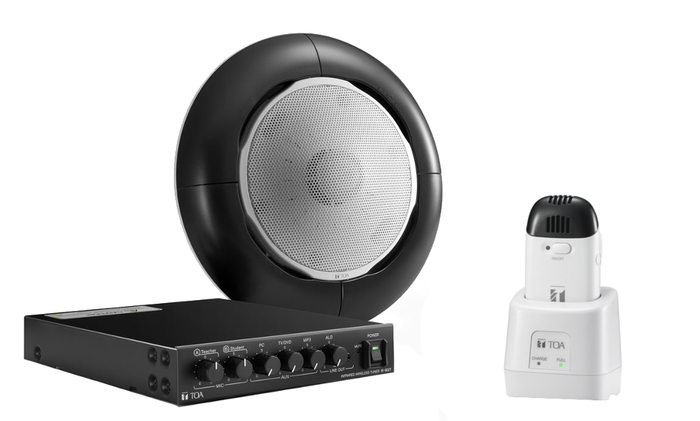

TOA IR-802PA Infrared Wireless Classroom Assistive Listening System Image 1
TOA IR-802PA Infrared Wireless Classroom Assistive Listening System
Our Price: $1,681.20
List Price: $2,080.50
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Assembled specifically for classroom use, TOA’s IR-802PA Infrared Wireless Classroom System includes a ceiling-mounted wide-dispersion speaker (with integrated receiver and amplifier), an easily accessed desktop tuner and a pair of lightweight IR wireless microphones, one each for the teacher and students.

The system is tailored to classroom size, thus avoiding unnecessary equipment installation. The wide-dispersion speaker provides ample 30ft x 30ft coverage, transmitting teachers’ and students’ normal speaking voices to everyone in the room, from front to back, with equal clarity and TOA’s renowned superior sound quality. The resulting easy interactive communication stimulates students and improves their understanding of the course content.

Includes:

  • One (1) IR-802T IR Tuner/Mixer
  • One (1) IR-820SP IR Powered Speaker
  • One (1) IR-310M Teacher IR Pendant Microphone
  • One (1) IR-310-BC Battery Charger
  • One (1) IR-200BT-2 NiMH Rechargeable Battery Pack

Features:

  • IR-802T Ifrared Wireless Transmitter:
    • 3 AUX inputs for PC, TV/DVD player and MP3 audio player
    • Output muting by 25V line signal from telephone paging
    • Equalizer control knobs for low-, mid- and high-frequency outputs
    • Mixing output terminal for ALD (Assistive Listening Device)
    • Frequency response optimized to reduce acoustic feedback in 30ft x 30ft classrooms
  • IR-802SP Infrared Wireless Speaker:
    • Built-in infrared receiver and 20W digital amplifier
    • Unique wide-dispersion acoustic structure employing innovative TOA technology to achieve uniform output over a wide radius
    • Bass-reflex speaker system achieving a wide frequency range and high power-handling capability
    • Easy installation with quick, optimally positioned ceiling mounting
  • IR-310M Infrared Wireless Microphone:
    • Usable as hands-free or hand-held microphone
    • Lightweight body with unobtrusive styling
    • 8-hour operation with single AA battery
    • Function button for use in paging or external device control via IR-801AF
    • Microphone sensitivity adjustable to suit application
    • Sturdy clothing clip to prevent wobbling or rotation during hands-free use

Specifications:

  • IR-802T:
    • Power Source: 120VAC, 50/60Hz (supplied AC adapter must be used)
    • Power Consumption: 8W (based on UL standards) Max. 40.8W (rated output of IR-820SP)
    • Receiving Frequency:
      • Teacher (Channel A): 3.100MHz
      • Student (Channel B ): 3.350MHz
    • Receiver Sensitivity: 50dB or more, Signal-to-noise ratio (40dBV input, 1kHz modulation, 4.8kHz deviation)
    • S/N Ratio:
      • Tuner: 60dB or more (60dBV input, 1kHz modulation, 4.8kHz deviation, A-weighted, Equalization: Centered)
      • AUX: 75dB or more (A-weighted, Equalization: Centered)
    • Tone Squelch Frequency: 32.768kHz
    • Inputs
      • AUX PC: line, -10dB, 10kΩ, unbalanced, stereo mini jack (internal mixing)
      • AUX DVD/TV: line, -10dB, 10kΩ, unbalanced, 2P RCA jack (internal mixing)
      • AUX MP3: line, -10dB, 10 kΩ, unbalanced, stereo mini jack (internal mixing)
      • Mute: 25V line signals of telephone paging from a school intercom system)
    • Output: ALD (Assistive Listening Device): line, -10dB, 10k, unbalanced, monaural mini jack
    • Speaker: RJ-45 (dedicated terminal for IR-820SP connection)
    • Equalization High: 10dB at 10kHz/Mid: 10dB at 1.3kHz/Low: 10dB at 100Hz
    • Mute Function: Muted by 25V line signals
    • LED Indicator: Power (green) x1, Infrared reception (yellow) x2, Mute (red) x1
    • Operating Temperature: 14ºF to 122ºF
    • Operating Humidity: 90% RH or less (no condensation)
    • Finish Panel: Aluminum, black/Case: Steel plate, black
    • Dimensions (WxHxD): 8.27" x 1.81" x 12.28"
    • Weight: 3.97lbs
    • Accessories:
      • AC adapter (DC cord length: 5.91ft) x1
      • AC power cord (6.56ft) x1
      • Volume control cover x6
      • Removable terminal plug (2 pins) x1
    • Option: Half-width blank panel: MB-15B-BK
  • IR-802SP:
    • Power Source: 24VDC (supplied from IR-802T)
    • Power Consumption: 4.4Watts (Based on UL Standard)
    • Rated Output: 20Watts
    • Frequency Response: 100Hz - 20kHz (-10dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling)
    • Amplification System: Class D
    • Distortion: 5% or less (rated output, A-weighted)
    • Speaker Component: 4.72" (12cm) cone-type
    • Infrared Wireless Receiver:
      • Wavelength: 870nm
      • Carrier Frequency: Channel A (for Teacher): 3.100MHz, Channel B (for Students): 3.350MHz
    • Reception Angle: 360° (horizontal)
    • Connection Terminal: RJ-45
    • LED Indicator: Power (green) x1
    • Mounting Hold: 11.81" outside diameter
    • Usage Cable: CAT-5 UTP
    • Operating Temperature: 14°F to 122°F
    • Operating Humidity: 90% RH or less (no condensation)
    • Finish:
      • Enclosure: Steel plate, plating
      • Baffle: Fire-resistant ABS resin (resin material grade: UL-94-V-0), white
      • Punched Net: Steel plate, white
      • Filter Section: Polycarbonate, optical cut filter
    • Dimensions: 12.6" O.D x 8.07 (D)
    • Weight: 7.5lbs
    • Accessories:
      • Safety Wire x1
      • Ceiling Reinforcement Ring x1
      • Paper Pattern x1
    • Option: Tile bar bridge HY-TB1
  • IR-310M:
    • Batteries: One piece of IR-200BT-2 rechargeable battery for the infrared wireless microphone
    • Current Consumption: typ. 250mA (1.2V)
    • Infrared Emitter:
      • Wavelength: 870nm (AM: Brightness modulation)
      • Carrier Frequency: Channel A: 3.100MHz, Channel B: 3.350MHz
    • Transmission Distance: 50ft (in an unobstructed space)
    • Input Sensitivity: Adjustment range: 2 levels (High, Low)
    • Microphone Unit: Unidirectional electret condenser microphone
    • Frequency Response: 100Hz - 12kHz
    • Preemphasis: 300μs
    • Input: External microphone input (3.5mm mono mini jack)
    • Battery Operation Time: Approx. 8 hours
    • Operating Temperature: 32°F to 104°F
    • Operating Humidity: 30% to 85% RH
    • Finish:
      • Control Section: ABS resin, white
      • Filter Section: Polycarbonate, optical cut filter
    • Dimensions (WxHxD): 2.17" x 4.33" x 0.87"
    • Weight: 0.22lbs (with battery and strap)
    • Accessories: Neck strap x1
