Lectrosonics ZS-LRLMb-A1
L-Series Digital Hybrid Wireless Bodypack System with LMb Transmitter and Lavalier Microphone, A1 Block 470.100 - 537.575 MHz

OUR PART #:  ZS-LRLMB-A1

The Lectrosonics L Series units all share a wide tuning range of three standard Lectrosonics blocks, or 67.5 to 76.8 MHz, depending on the specific frequency band...
Learn More
Our Price: $2,329.00
List Price: $3,178.00
You save 27%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics ZS-LRLMb-A1
Qty:
In Stock

Similar Products

The Lectrosonics L Series units all share a wide tuning range of three standard Lectrosonics blocks, or 67.5 to 76.8 MHz, depending on the specific frequency band, and employ Lectrosonics' patented Digital Hybrid Wireless® technology for compandor-free audio along with compatibility modes for interoperability with older analog systems. Like all of Lectrosonics' other products, the L Series units are made in the USA and feature machined aluminum housings, user-friendly setup and reliable operation. The ZS-LRLMb kit (or ZS-LRLT kit) makes it easy to put these products right to work on the job. Everything you need is here: transmitter, receiver, mounting hardware, lav mic, connecting cables, even batteries are included.

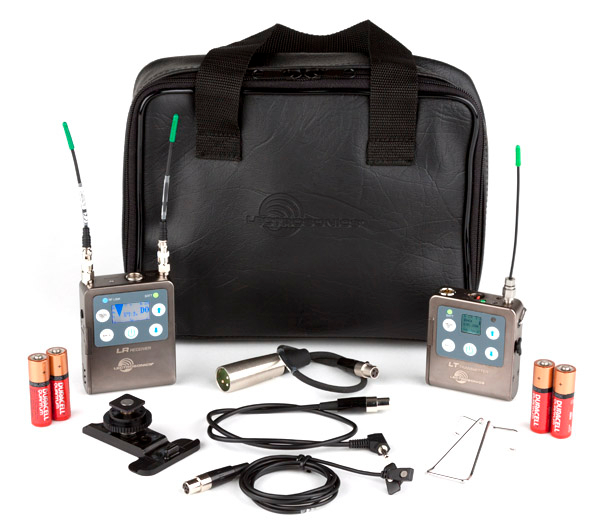

Lectrosonics ZS-LRLMb-A1 Includes:

  • One (1) LR-A1 receiver
  • One (1) LMb-A1 transmitter
  • One (1) M152/5P lavalier Microphone
  • One (1) LRSHOE camera shoe mount for LR Receiver
  • One (1) MCSRXLR cable, TA3F to XLRM
  • One (1) MCLRTRS cable, TA3F to 1/8" TRS
  • One (1) CCMINI zippered pouch

Lectrosonics ZS-LRLMb-A1 Features:

  • LR Receiver:
    • Tunes over a 75 MHz range
    • Tracking front-end filters
    • Digital Hybrid Wireless® with compatibility modes for use with earlier transmitters
    • Compact size powered by two AA batteries or an optional battery eliminator
    • LCD with RF spectrum scanning
    • SmartSquelch™ noiseless muting adapts automatically for near/far operation
    • DSP-based pilot tone for squelch control
    • USB port for firmware updates
    • IR sync port for transmitter setup
  • LMb Transmitter:
    • Covers three standard frequency blocks
    • Digital Hybrid Wireless for compandor-free audio
    • 50 mW RF power
    • Compatibility modes for use with analog receivers
    • 25 or 100 kHz tuning steps for up to 3072 selectable frequencies
    • Integrated multi-function switch for mute or talkback modes
    • Wide range input gain control in 1 dB steps

Lectrosonics ZS-LRLMb-A1 Specifications:

  • LR Receiver:
    • Operating Frequency:  A1 - 470.100 to 537.575 MHz
    • Frequency Selection Steps:  Selectable; 100 kHz or 25 kHz
    • Receiver Type:  Dual conversion, superheterodyne
    • IF Frequencies:  243.950 MHz and 250.000 kHz
    • Frequency Stability:  ±0.001%
    • Front End Bandwidth:  20 MHz @ -3dB
    • Sensitivity:
      • 20dB SINAD:  1.0 uV (-107dBm), A weighted
      • 60dB Quieting:  2.2 uV (-100dBm), A weighted
    • Squelch Quieting:  Greater than 100dB typical
    • Modulation Acceptance:  ±100 kHz max.; varies with selected compatibility mode
    • Image and Spurious Rejection:  85dB
    • Third Order Intercept:  0dBm
    • Diversity Method:  SmartDiversity™ phased antenna combining
    • FM Detector:  Digital Pulse Counting Detector
    • RF Spectrum Analyzer:  Single and multiple block scanning modes; coarse and fine views of results
    • Antenna Inputs:  50 Ohm; SMA female connectors
    • Audio Output:  TA3 male (mini XLR) balanced output
    • Audio Output Level:  Adjustable -50 to +5dBu in 1dB steps; unbalanced output level is 6dB lower
    • Front Panel Controls and Indicators:  Sealed panel with membrane switches, LCD for setup menus and monitoring
    • Audio Test Tone:  1 kHz, -50dBu to +5dBu output (bal); 1% THD
    • Transmitter Battery Type:  AA alkaline or lithium; timer available for use with alkaline, lithium and HiMH
    • Audio Polarity Selection:  Normal or inverted
    • Compatibility Modes:
      • Digital Hybrid (North American and European)
      • Lectrosonics 100, 200 and 300 Series
      • Lectrosonics IFB
    • SmartNR (Noise Reduction):  OFF, NORMAL, FULL modes (available in Digital Hybrid mode only)
    • System Frequency Response:  32 Hz to 20 kHz (±1dB) receiver only
    • Signal-to-Noise Ratio:
      • SmartNR Off:
        • No Limiting:  103.5dB
        • With Limiting:  108.0dB
      • SmartNR NORMAL Mode:
        • No Limiting:  107.0dB
        • With Limiting:  111.5dB
      • SmartNR FULL Mode:
        • No Limiting:  108.5dB
        • With Limiting:  113.0dB
    • Total Harmonic Distortion:  < 0.4% (0.2% typical in Digital Hybrid Mode)
    • Operating Runtimes:  4 hours, AA alkaline
    • Operating Temperature:  -20°C to +50°C
    • Weight:  6.54 oz (185.4 g) with AA lithium batteries
    • Dimensions (housing):  3.21" x 2.45" x 0.84" (82mm x 62mm x 21mm)
  • LMb Transmitter:
    • Operating Frequency:  A1 Block - 470.100 to 537.575 MHz
    • Frequency Selection Steps:  Selectable, 100 kHz or 25 kHz
    • RF Power Output:  50 mW
    • Pilot Tone:  25 to 32 kHz; 5 kHz deviation (Digital Hybrid Mode)
    • Frequency Stability:  ± 0.002%
    • Deviation:  ± 75 kHz max. (Digital Hybrid Mode)
    • Spurious Radiation:  60dB below carrier
    • Equivalent Input Noise:  -120dBV (A-weighted)
    • Input Level:
      • Nominal 2 mV to 300 mV, before limiting
      • Greater than 1V maximum, with limiting
    • Input Impedance:  2 kOhms
    • Input Limiter:  DSP controlled, dual envelope "soft" limiter with greater than 30dB range
    • Gain Control Range:  44dB; digital control
    • Modulation Indicators:  Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10dB referenced to full modulation; LCD Bar Graph
    • Audio Performance (Digital Hybrid Mode):
    • Frequency Response:  90 Hz to 20 kHz (± 1dB)
    • Low Frequency Roll-Off:  -12dB/octave; 70 Hz
    • THD:  0.2% typical
    • SNR at Receiver Output:
      • SmartNR Off:
        • No Limiting:  103.5dB
        • With Limiting:  108.0dB
      • SmartNR NORMAL Mode:
        • No Limiting:  107.0dB
        • With Limiting:  111.5dB
      • SmartNR FULL Mode:
        • No Limiting:  108.5dB
        • With Limiting:  113.0dB
    • Audio Input Jack:  Switchcraft 5-pin locking (TA5F)
    • Antenna:  Galvanized steel, flexible, wire
    • Battery:  Two AA; alkaline, lithium, NiMH rechargeable
    • Battery Life:
      • Alkaline:  4.5 hours
      • Duracell Quantum:  7 hours
      • Eneloop 2400 mAH NiMH:  8 hours
    • Weight:  5 oz (141 g), including lithium AA batteries and wire belt clip
    • Dimensions:  3.2" x 2.4" x 0.8" (81mm x 61mm x 20mm)
    • Emission Designator:  180KF3E
