Quam UL22/70
UL Listed Fire Signaling Ceiling Loudspeaker with 8" Woofer

OUR PART #  UL22/70

Our Price: $97.48
List Price: $132.62
You save 26%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

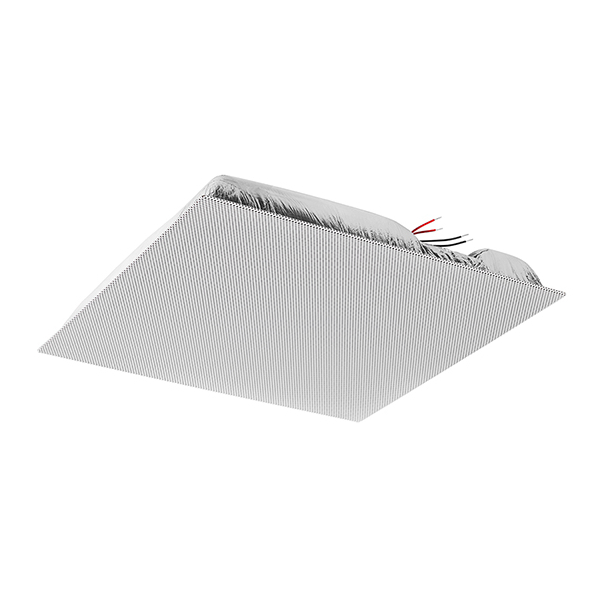

The Quam UL22/70 is a complete UL Listed, shallow depth, lightweight, tile replacement, fire-protective signaling device with an 8” O.D. loudspeaker (8C10PAFR), 10 oz. magnet, fire retardant components and a 4W-70V rotary select transformer. Integral enclosure is 1,412 CID molded fiber. Grille is perforated steel with five (5) seismic tie-off points in a white powder coat finish. Line supervision capacitor is included. No assembly required.

Quam UL22/70 Specifications:

  • Sound Pressure dB-SPL@ 10 ft. per Tap:  1/4 = 78.7, 1/2 = 80.7, 1 = 81.5, 2 = 84.3, 4 = 87.4
  • Loudspeaker Power Rating:  20W RMS, EIA 426AStandard
  • Magnet Type & Weight:  BeFe Ceramic, 10 oz.Nominal
  • Frequency Response:  60 Hz - 17 kHz EIA 426AStandard
  • Nominal Coverage Angle:  100° Included Angle, -6dB / 2 kHz, Half space
  • Audio Connection, Common:  Dual, color-coded leads, pre-cut

Quam UL22/70
UL Listed Fire Signaling Ceiling Loudspeaker with 8" Woofer

OUR PART #  UL22/70

Product Information:

The Quam UL22/70 is a complete UL Listed, shallow depth, lightweight, tile replacement, fire-protective signaling device with an 8” O.D. loudspeaker (8C10PAFR), 10 oz. magnet, fire retardant components and a 4W-70V rotary select transformer. Integral enclosure is 1,412 CID molded fiber. Grille is perforated steel with five (5) seismic tie-off points in a white powder coat finish. Line supervision capacitor is included. No assembly required.

Quam UL22/70 Specifications:

  • Sound Pressure dB-SPL@ 10 ft. per Tap:  1/4 = 78.7, 1/2 = 80.7, 1 = 81.5, 2 = 84.3, 4 = 87.4
  • Loudspeaker Power Rating:  20W RMS, EIA 426AStandard
  • Magnet Type & Weight:  BeFe Ceramic, 10 oz.Nominal
  • Frequency Response:  60 Hz - 17 kHz EIA 426AStandard
  • Nominal Coverage Angle:  100° Included Angle, -6dB / 2 kHz, Half space
  • Audio Connection, Common:  Dual, color-coded leads, pre-cut
