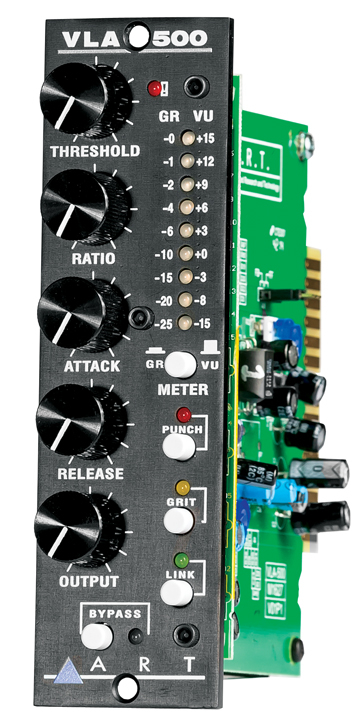

ART VLA-500
500 Series Compressor Module

OUR PART #:  VLA500

The ART VLA-500 brings the same VCA-less Vactrol based compression circuit used in ART's legendary Pro-VLA, putting to a convenient 500 Series format for the first time.
Learn More
Our Price: $199.00
List Price: $249.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART VLA-500
Qty:
In Stock

Similar Products

The ART VLA-500 brings the same VCA-less Vactrol based compression circuit used in ART's legendary Pro-VLA, putting to a convenient 500 Series format for the first time. Capable not only of delivering incredibly smooth compression and overall dynamic control, the VLA-500 also offers two user selectable tone shaping circuits making it one of the most versatile signal processors in your 500 Series rack.

The 'Punch' circuit is a J-FET Harmonic Enhancer that adds even-order harmonic distortion for a fuller, "punchier" tone while taming nasty peaks that may escape the Vactrol. The Grit circuit adds frequency-dependent signal distortion to make any track truly stand out. This is a highly creative effect that can work especially well on drums and percussion, solo brasses and woodwinds and even vocals when added presence and position in a mix is required. Bypassing both 'Punch' and 'Grit' circuits delivers the purest Opto-compressor tone, perfect for critical solo instruments and clean vocals. 'Punch' and 'Grit' circuits can even be combined for additional tone shaping options.

ART VLA-500 Features:

  • 500 Series Form Factor Compressor Module
  • Based on Popular PRO-VLA Technology
  • VCA-less Vactrol Opto-Compressor Design
  • Two Additional Selectable Solid State Tone Shaping Circuits ('Punch' & 'Grit')
  • Variable Threshold, Ratio and Output Controls
  • Stereo / Multi-Channel Linkable
  • LED Metering

ART VLA-500 Specifications:

  • Equivalent Input Noise:  -102dBu ('A' weighted)
  • Input Impedance:  10 kOhms
  • Output Impedance:  100 Ohms
  • Inputs Level:  +20dBu
  • Output Level:  +20dBu
  • Output Gain:  +20dB max
  • Frequency Response:  20 Hz - 100 kHz (┬▒ 0.5dB)
  • Dynamic Range:  > 120dB (20 Hz - 20 kHz)
  • Attack Time:  0.25msec. to 50msec. variable
  • Release Time:  150msec. to 3 sec, variable
  • Total Harmonic Distortion:  < 0.003% (@ 1 kHz, typical)
  • Power Requirements:  80mA (75mA @+ 15V, 4mA @ 48V)
  • Slope:  Variable, 2:1 to 20:1
  • Max Gain Reduction:  30dB
  • Dimensions:  5.23" H x 1.49" W x 6.6" D
  • Weight:  0.7 lbs (0.32kg)
