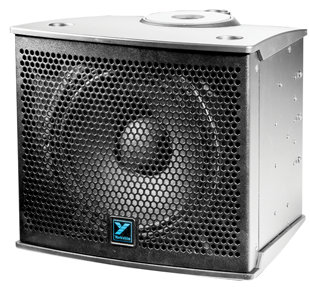

Yorkville NX10C
NX Series 10" 300W Powered Arrayable Loudspeaker


Our Price: $499.00
List Price: $689.00
You save 28%! (Low Price Guarantee)
In Stock

With it's 12 inch profile and innovative "through hole" pole mount design, the Yorkville NX10C is the one of most versatile and compact professional PA cabinets offered by Yorkville. The innovative speaker stands "through-hole" design allows multiple NX10C cabinets to be mounted on a single standard speaker stand in a vertical array for very high volume applications. When wider horizontal coverage is required the NX10C cabinets can be rotated about the axis of the pole while still maintaining full phase coherency. Coverage for up to 360 degrees can be achieved.

No need to bring separate stands for stage lighting and speakers when NX10C's can be mounted under the light bars, saving valuable stage space.

For side-wash monitor applications on tight stages, the NX10C can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.

The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C to be used as a compact wide coverage floor monitor or center fill cabinet.

Versatile inputs for mic or line level sources as well as an 1/8" TRS jack allow the NX10C to direct connect to any audio source.

Yorkville NX10C Specifications:

  • Active or Passive:  Active
  • Program Power:  300 Watts (600 Watts Peak)
  • Biampable:  Self Powered
  • Max SPL:  125dB Peak (122dB Continuous)
  • Frequency Response (±3dB):  80 Hz - 20 kHz
  • Crossover Frequency:  2500 Hz
  • Driver Configuration:  Coaxial 10" / 1"
  • HF Driver:  1" Throat, Ceramic Magnet, 1.4" PETP Film
  • HF Dispersion:  60°H x 60°V
  • LF Driver:  10" Ceramic Magnet with a 2.5" voice coil
  • HF Amplifier Type:  Class A/B
  • LF Amplifier Type:  Two Tier Class- H
  • Power Cable:  Yes
  • Power Switch:  Yes
  • Power Consumption (typ/max):  100-240V, 12-5A, 1200W
  • Inputs:  3 (Combi-jack Mic Input / Combi-jack Line Input / 1/8" TRS Line Input) 1/4" inputs are parallel
  • Input Sensitivity (Sine):  1.23 Vrms, +4dBu
  • Mixer Controls:  Contour (Playback/Vocal Mode)
  • Level Controls:  Line/Mic
  • Limiter:  Yes
  • LED Indicators:  Power, Clip
  • Feet:  Yes
  • Pole Mount Adapter (1 3/8"-3.5cm):  Pole Through
  • Enclosure Materials:  Injection Molded Fiber Reinforced ABS / Aluminum/13ply birch
  • Grille:  Perforated Metal
  • Dimensions (DxWxH)  13" x 13.5" x 12" (33cm x 34.3cm x 30.5cm)
  • Weight:  25 lbs (11.3 kg)
