Radio Design Labs EZ-PD3
24V DC 1x3 Power Supply Distributor

OUR PART #  EZ-PD3

Our Price: $95.78
List Price: $128.11
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

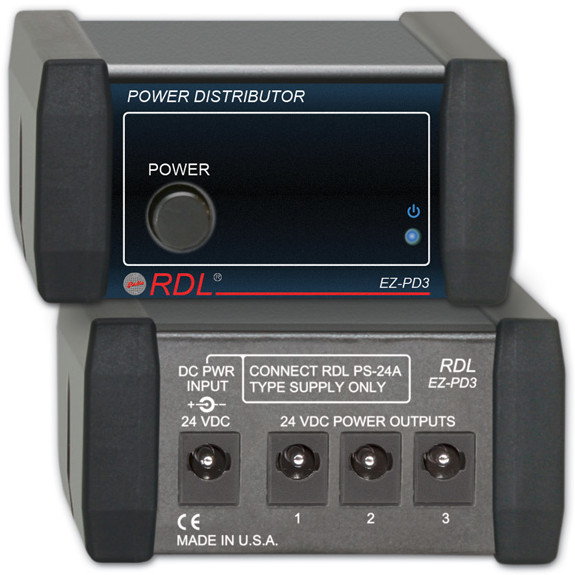

The Radio Design Labs EZ-PD3 is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to three EZ modules from a single power supply. Upon application of power, the EZ-PD3 ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. A front-panel power switch is provided. The front-panel blue LED remains illuminated when the outputs are active.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Radio Design Labs EZ-PD3 Features:

  • Distribution of 24 Vdc Power
  • Soft-Start from Switching Supply
  • Outputs may be Activated by a Front-Panel Switch
  • Up to 3 Power Distribution Points
  • Voltage Presence Indication
  • Reverse Voltage Protection
  • Energy Efficiency by Powering Multiple Products from a Single Power Supply

Radio Design Labs EZ-PD3 Specifications:

  • Input/Output Voltage: 24 Vdc @ 600 mA (Intended for use with current limited switching supply)
  • Outputs (3): Total load current must not exceed 600mA
  • Indicator: POWER LED
  • Ambient Operating Environment: 0° C to 55° C
  • Power Requirement: 24 Vdc @ 20 mA plus connected loads
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625" x 4.625" x 2.125"
  • Shipping Weight: 0.675 lb
  • WEEE weight: 0.41 lb
  • Tariff code: 8518.29.0000

Radio Design Labs EZ-PD3
24V DC 1x3 Power Supply Distributor

OUR PART #  EZ-PD3

Product Information:

The Radio Design Labs EZ-PD3 is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to three EZ modules from a single power supply. Upon application of power, the EZ-PD3 ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. A front-panel power switch is provided. The front-panel blue LED remains illuminated when the outputs are active.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Radio Design Labs EZ-PD3 Features:

  • Distribution of 24 Vdc Power
  • Soft-Start from Switching Supply
  • Outputs may be Activated by a Front-Panel Switch
  • Up to 3 Power Distribution Points
  • Voltage Presence Indication
  • Reverse Voltage Protection
  • Energy Efficiency by Powering Multiple Products from a Single Power Supply

Radio Design Labs EZ-PD3 Specifications:

  • Input/Output Voltage: 24 Vdc @ 600 mA (Intended for use with current limited switching supply)
  • Outputs (3): Total load current must not exceed 600mA
  • Indicator: POWER LED
  • Ambient Operating Environment: 0° C to 55° C
  • Power Requirement: 24 Vdc @ 20 mA plus connected loads
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625" x 4.625" x 2.125"
  • Shipping Weight: 0.675 lb
  • WEEE weight: 0.41 lb
  • Tariff code: 8518.29.0000
