Draper Shade and Screen 116368QL
109" 16:10 Targa Electric Projection Screen with Built-In Quiet Motor and Low Voltage Controller

OUR PART #:  116368QL

Draper offers the 116368QL - a Targa Electric Projection Screen designed for 16:10 image formats with a 109" diagonal.
Learn More
Our Price: $1,140.00
List Price: $1,425.29
You save 20%!
Write the first review.
Draper Shade and Screen 116368QL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Draper offers the 116368QL - a Targa Electric Projection Screen designed for 16:10 image formats with a 109" diagonal. This model comes with a Matt White XT1000E screen suface and a Built-In Quiet Motor and Low Voltage Controller option.

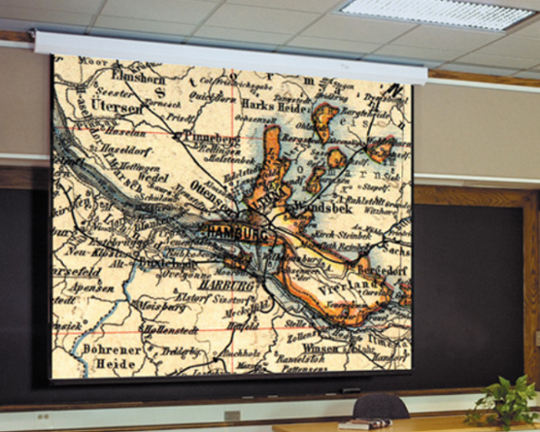

Targa electric projection screen. Ideal for auditoriums and lecture halls, hospitals, hotels, churches, boardrooms and conference rooms. The motor is mounted inside the roller, for a trim balanced appearance. Pentagonal steel case is scratch-resistant white polyester finish with matching endcaps.

Matt White XT1000E surface is the standard to which all other screen surfaces are compared. Preferred viewing surface in educational and commercial markets. A matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Offers accurate color rendition, and superior clarity due to its smooth, non-embossed surface. Requires adequate provision for the control of ambient light in the audience area. Unity gain with a panoramic 180° cone. This surface is GREENGUARD Children and SchoolsSM certified.

The Quiet Motor with Built-in Low Voltage Controller combines the benefits of quiet operation and low voltage control, eliminating the need for an external low voltage control module. Includes 3-button wall switch to operate screen and set limit switches, and 25´ data cable.

Draper 116022L Features:

  • Screen operates instantly at the touch of a button and stops automatically in the "up" and "down" positions.
  • Viewing surface can be lowered to any position at the touch of a switch.
  • NTSC, HDTV and 16:10 format screens have black borders on all four sides
  • Available with a ceiling trim kit for ceiling recessed installation.
  • With control options, it can be operated from any remote location.
  • Depending on surface, available in sizes through 16’ x 16’ (488cm x 488cm) and 240" (610cm) NTSC.
  • Custom sizes available.
  • Plug & Play with built-in Quiet and Low Voltage Controller are nowavailable (QLP)

Draper 116022L Specifications:

  • Part number: 116368QL
  • Surface material: Matt White XT1000E
  • Image Format: 16:10
  • Diagonal size: 109"
  • Image/Viewable area: 57 1/2" x 92"
  • Overall size: 69 1/2" x 96"
  • Case length: 103"
  • Product weight: 44 pounds
  • Shipping weight: 62 pounds
  • Voltage: 110V
  • Motor Options: Quiet and Low Voltage
