Revolabs FLX UC 1000
VoIP & USB Conference Phone with Full Duplex Audio

OUR PART #  10-FLXUC1000

Our Price: $799.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

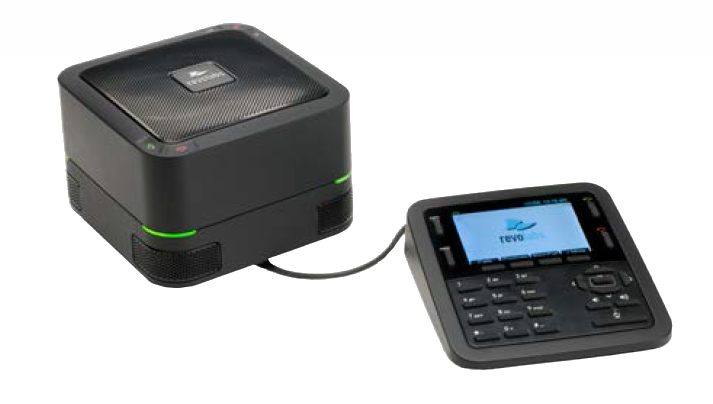

The Revolabs FLX™ UC 1000 sets the new standard for enterprise conferencing and collaboration by combining a VoIP phone with USB conference calling. With integrated SIP technology, the UC 1000 works in all major telephony environments, whether on premise or in the cloud, and it connects to all market-leading IP PBX’s. In addition, the UC 1000 easily integrates with your choice of 3rd party conferencing applications. A key benefit of this integration is that the UC 1000 is capable of bridging VoIP and 3rd party softphone calls, allowing your team to communicate using the best medium for collaboration.

The full-color dialer boasts an easy to use, icon based menu system. The keypad provides quick access to the key calling features: On-Hook, Off-Hook, Volume Up/Down, Mute, Redial, and access to the main menu. The context dependent soft keys, navigational buttons, and telephone keypad make the experience of using the UC 1000 right out of the box, simple and intuitive.

Fills the Conference Room with High Quality Speaker Sound
In conference rooms for up to 10 people, speaker audio can be heard by every meeting participant; the UC 1000's powerful speaker can fill the entire conference room with audio.

Complete Room Microphone Coverage
Every word by the meeting participants is picked up and transmitted to the far end due to the complete 360° coverage of the four embedded directional microphones.

Full Duplex Audio
Participants can communicate naturally as if they are in the same room; the technology in the UC 1000 supports simultaneous audio playback and audio capture, ensuring every word is heard.

Integrated Echo Cancellation
The meeting participant speaking has their audio picked up and transmitted clearly; built-in digital signal processing separates out the speech of the meeting participant, room noise, and audio from the speaker of the device to ensure only the correct audio is transmitted to the far end.

Revolabs FLX UC 1000 Includes:

  • One (1) FLX UC 1000 Base Unit
  • One (1) FLX UC 1000 Dialer Unit
  • One (1) USB Cable, 6.56 ft (2.0 m)
  • One (1) Ethernet Cable, 25 ft (7.62 m)
  • Quick Start Guide

Revolabs FLX UC 1000 Specifications:

  • SIP:
    • Call Handling:  Make, Answer, Hold, Resume, Transfer (Blind and Supervised), Forwarding, Do not disturb, Redial, Call Timer, Call ID, Speed Dial, Missed Call Notifications, Voice Mail Notifications (switch configured)
    • Call Bridging:  Supports Bridging SIP and USB Calls. Join, Split, Hold, Resume, 3+1 Lines: Up to 2 SIP calls, 1 USB call, plus the user
    • Codecs:  G.711 (A-law and u-law), G.722, G.726, G.729
    • DTMF Support:  RTP event, SIP in-band, SIP info package support
    • Security:  SRTP/SRTCP Support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs), SSIP, Password protected configuration files, Password protected login, HTTPS Secure Provisioning
    • Network & Provisioning:  DHCP or Static IP, Server Based Central Provisioning, Web Portal for Individual Unit Configuration
  • Device Features:
    • Base Unit:  Capacitive Touch Buttons for On-Hook, Off-Hook, Volume Up/Down, Mute
    • Dialer Keypad:  12-key telephone keypad, 4 context-dependent soft keys, 5 Navigational buttons with select key, On-Hook, Off-Hook, Volume Up/Down, Mute, Redial, Menu
    • Dialer Display:  3.5in diagonal color graphics display, 480x320 pixels
    • User Interface:  Date & Time Display, User configurable Local Contact List, Call History (Missed Calls, Placed Calls, Received Calls), User-Selectable Ring Tones, Unicode UTF-16 Character Support,
    • Multilingual User Interface
  • Audio:
    • Speaker Elements:  Tweeter, Mid-woofer
    • Speaker Frequency Response:  160 Hz - 20 kHz
    • Max SPL:  91dB at 1m
    • Microphones:  4 embedded directional
    • Microphone Coverage:  360° Audio pick-up
    • Microphone Frequency Response:  160 Hz - 12 kHz
    • Echo Cancellation:  Individual AEC per microphone
    • Full Duplex:  Yes
  • Interfaces:
    • Power:  Power over Ethernet (PoE)
    • USB:  Mini USB 2.0 Connector
  • Environmental:
    • Operating Temperature:  32°F to 104°F (0°C to 40°C)
    • Storage Temperature:  -22°F to +131°F (-30°C to +55°C)
    • Relative Humidity:  20% to 85% (non-condensing)
  • Compliance:
    • Safety:
      • CE Mark: EN 60950
      • IEC 60950
      • UL 60950
      • CSE C22.2, No. 60950
      • AS/NZS 60950
    • EMC:
      • ICES-003 Class B
      • FCC (47 CRF Part 15) Class B
      • EN55022 Class B
      • CISPR22 Class B
      • AS/NZS CISPR22 Class B
      • VCCI Class B
      • EN55024
    • Environmental:  RoHS
  • Physical:
    • Base Unit Height:  4.84" (123mm)
    • Base Unit Width:  5.9" (150mm)
    • Base Unit Length:  5.9" (150mm)
    • Dialer Unit Height:  1.6" (41mm)
    • Dialer Unit Width:  5.2" (133mm)
    • Dialer Unit Length:  5.3" (136mm)
    • Weight:  3 lbs (1.3 kg)
    • Power:  IEEE 802.3af Power over Ethernet (PoE)
  • Warranty:  1 year warranty
