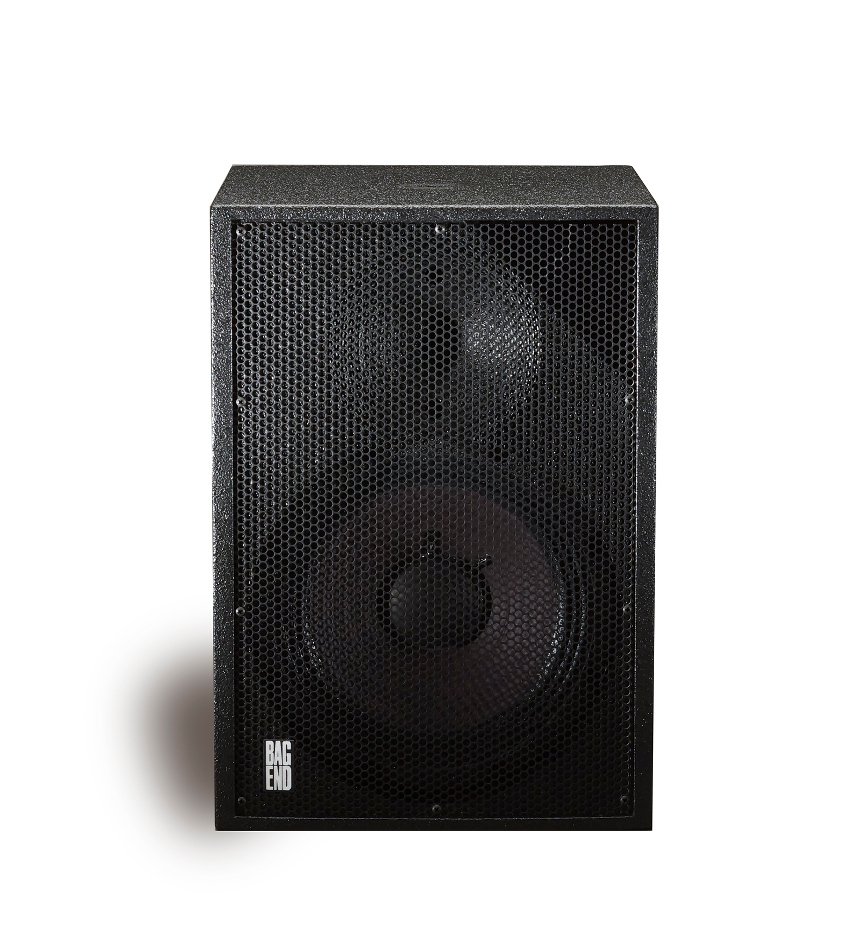

Bag End TA80-IY
2-Way 8" 250W Passive Installation Loudspeaker

OUR PART #:  TA80-IY

The Bag End TA80-IY produces high-definition, high-impact sound over its wide angle making audience coverage easy and effective in a variety of venues.
Learn More
Our Price: $638.00
List Price: $750.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bag End TA80-IY
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bag End TA80-IY produces high-definition, high-impact sound over its wide angle making audience coverage easy and effective in a variety of venues. A compact loudspeaker, engineered for exceptional mid-field and near-field performance, it is well known for exceptional fidelity and its surprisingly high output capability.

Useful for foreground and background music applications, it also excels for speech projection and small PA systems. With its fidelity, size and output it is perfect for multi channel 5.1 presentations systems. In larger audio systems the TA80-IY is highly effective as a fill, delay or under balcony speaker. The addition of a Bag End subwoofer will expand its capabilities for more demanding applications.

The conical high frequency waveguide produces a uniform horizontal and vertical coverage pattern and the included steel mounting yoke U-Bracket enables vertical or horizontal mounting for easily installation and aiming.

Bag End TA80-IY Specifications:

  • System Type:  2-way vented
  • Enclosure:  3/4” MDF
  • Finish:  Black Ro Tex™ True water born environmental finish
  • Grille:  18 Gauge black powder coated perforated steel
  • Low Frequency Components:  E-8A 8” Driver, 2.5” Voice coil, 34 oz. Magnet
  • High Frequency Components:  E-100 1” Exit compression driver, 1” Mylar diaphragm, Ceramic. Magnet, Hybrid Conical Waveguide
  • Input Connector:  Cinch 142 screw terminal barrier strip
  • Hardware:  Yoke-TA80 Steel Yoke U-bracket included
  • Crossover Type:  Passive Time-Align® equalizer type at 2.8 kHz
  • Time Offset Between Driver:  < ± 25 Microseconds
  • Sensitivity:  95 dB SPL (2.83 V @ 1m)
  • Frequency Response:  100 Hz - 20 kHz ±3 dB
  • Low Frequency Limit:  80 Hz
  • Maximum Calculated Continuous Acoustic Output:  120 dBSPL @ 1m
  • Power Handling:
    • 250 W continuous (IEC)
    • 500 W program
  • Recommended Amplifier Power:  250 to 500 W at rated impedance
  • Rated Impedance:  8 Ohms
  • Coverage Pattern (-6dB):  90° H x 90° V
  • Recommended High Pass Filter:  80 Hz
  • Polarity:  A positive asymmetrical signal applied to the + terminal will result in a positive asymmetrical acoustical pressure
  • Dimensions (HxWxD):  14” x 10” x 11.5” (35cm x 25cm x 29cm)
  • Weight:  34 lbs
