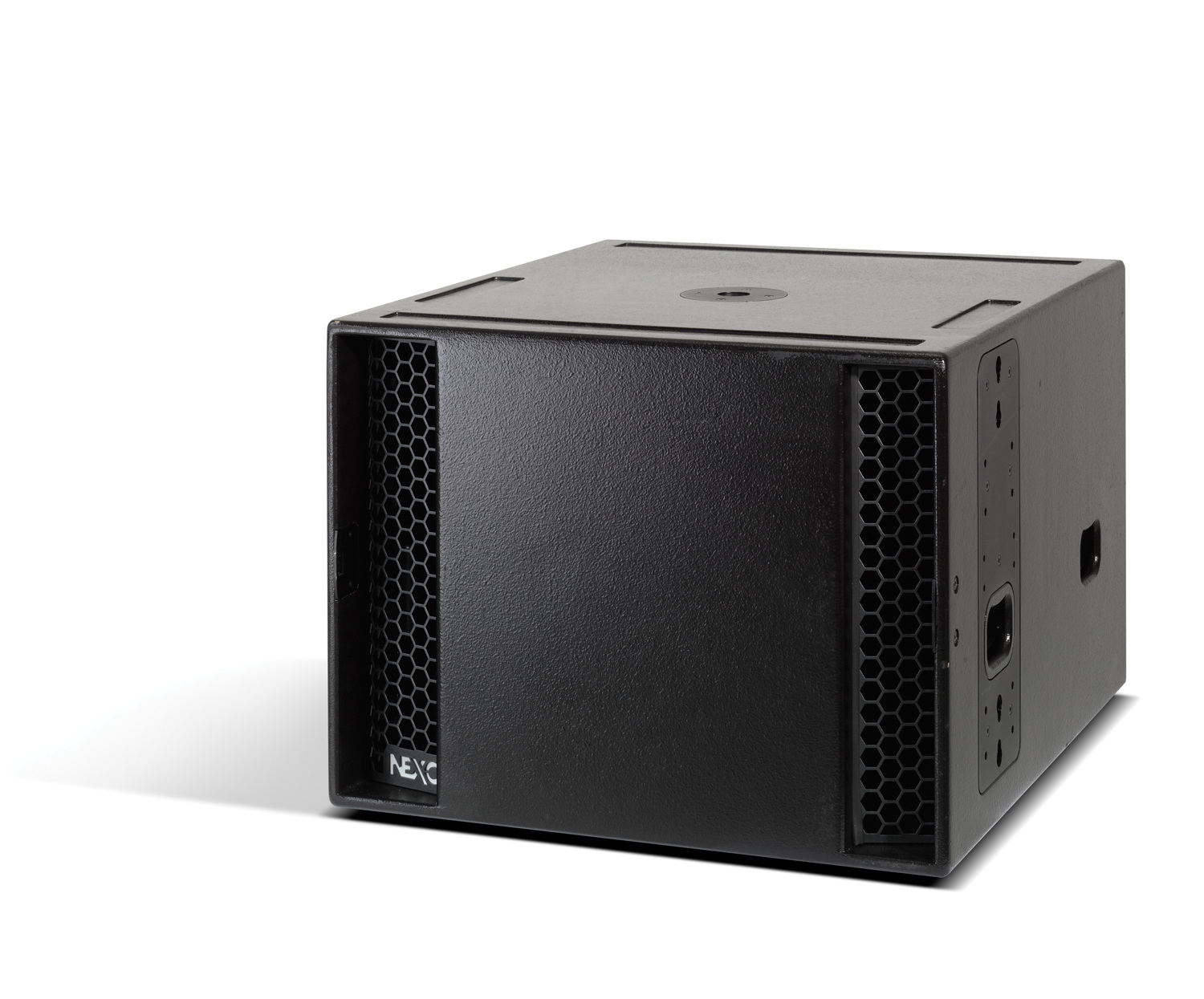

Nexo LS18
18" High Powered Subwoofer

OUR PART #:  LS18

The LS18 subbass cabinet brings added versatility to Nexo’s GEO S12 line array systems and PS Series cabinets, delivering high SPL at a relatively low cost.
Learn More

Call for price! Not available online.

Similar Products

The LS18 subbass cabinet brings added versatility to Nexo’s GEO S12 line array systems and PS Series cabinets, delivering high SPL at a relatively low cost.

Light and easy-to-handle, the LS18 uses a single 18" long excursion driver and is compatible with all GEO S12 accessories, so it can fly with the S1230 and S1210 line array modules, or anchor a ground stack of S12 cabinets. With a steel stand fitting on top of the cabinet, the LS18 also allows for pole mounting of GEO S12 cabinets or NEXO PS15-R2 full-range speakers. LS18 can be flown in tandem with PS15s, which will be of particular interest to the installation sector.

Ideal applications include small to mid-sized tour systems, installations (arena/stadium/auditorium, nightclub), house of worship and corporate AV and presentation systems.

Nexo LS18 Features:

  • High power system (137-140dB peak SPL @ 1m)
  • Frequency response: 30Hz-130Hz
  • 1 x 18" 4" voice coil long excursion 8-Ohm driver
  • Light and easy to handle
  • Integrates with GEO S12 and PS Systems

Nexo LS18 Specifications:

  • LS18 with NXAMP TD Controller:
    • Frequency Response: 35 Hz - 120 Hz ±3dB
    • Usable Range @-6dB: 32Hz - 130 Hz
    • Sensitivity 1W @ 1m: 107 dB SPL Nominal
    • Nominal Peak SPL @ 1m: 137 to 140 dB Peak
    • Nominal Impedance: 8-Ohm
    • Crossover Frequencies: 60 Hz – 85 Hz - 120 Hz Active
  • Amplified Controller:
    • XAMP4x1: 2 x LS18 in parallel on 2 bridged channels:
    • NXAMP4x4: 2 x LS18 on 1 channel
    • Components: 1 x 18’’ (46cm) 4’’ voice coil long excursion 8-Ohm driver
    • Height x Width x Depth: 510 x 675 x 775 mm (20.1” x 26.1” x 30.5”)
    • Weight (Net): 55.5 kg / 122.3 lbs.
    • Connectors: 2 x NL4MP Speakon 4 pole
    • Construction: Baltic Birch Ply & structured black coating
  • Fittings:
    • Handles: 4 metal recessed pockets (2 per side)=
    • Front finish: Molded Dark Grey Metal Grill
    • Flying points: Two side plates connecting with external accessories
    • Stand fittings: Internal Steel Stand Fitting on Top (35mm, 1-3/8") allows pole mounting for PS15 or Geo S12
  • System Operation:
    • Electronic Controller: The NEXO NXAMP presets are precisely matched to the LS series cabinets and include sophisticated protection algorithms. Using LS Series cabinets without a properly connected NXAMP will result in poor quality and can damage components
  • Speaker Cables:
    • LS18 is wired 1- & 1+ on 2 In/Out Speakon connectors
    • Single cables can thus be used to loop through to PS15-R2 or to Geo S12.
