Ross Video Ltd FDT-6604-R2
3G/HD/SD SDI Dual Fiber 1310nm Converter/Transmitter with Full 2 Slot Rear I/O Module

OUR PART #:  FDT-6604-R2

The Ross Video FDT-6604-R2 is a serial digital SDI to fiber optic transmitter converter that supports serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p).
Learn More
Our Price: $2,039.00
Write the first review.
Ross Video Ltd FDT-6604-R2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

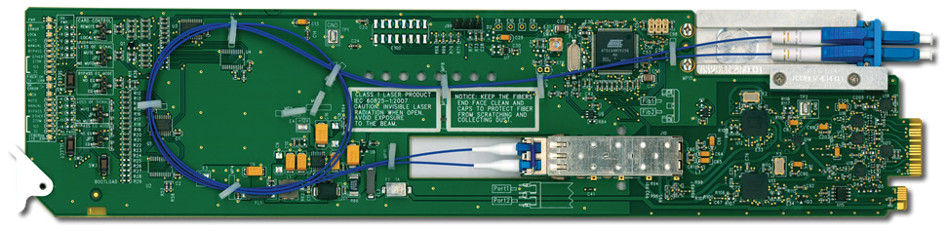

The Ross Video FDT-6604-R2 is a serial digital SDI to fiber optic transmitter converter that supports serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked copies of the input providing excellent jitter and return loss specifications.

The FDT-6604-R2 includes the -R2 full rear I/O module, and is fully hot-swappable with all active components on the front removable card. No active components are installed on the rear I/O connection module. This design greatly reduces down-time eliminating any need to access the back of the rack frame. The -R2 rear module occupies 2 slots in the OG3-FR platform and supports 1 openGear® card. It features access to the full I/O connections of the main Converter/Transmitter card.

Ross Video FDT-6604-R2 Features:

  • 2 Channels electrical to optical conversion on single card
  • Electrical to Optical for all SMPTE 424M, SMPTE 259M-C, SMPTE 292M standards
  • 2 Optical LC outputs, 3 reclocked copies of input 1, 1 reclocked copy of input 2, per card
  • Occupies 2 Slots in an openGear frame
  • Dual Optical Transmitter, 1310nm
  • Supports single-mode fiber
  • Hot-swappable from front of frame with no external connect / reconnect required
  • Optical output power: -7dBm / 0dBm (CWDM)
  • Optical wavelength: 1310nm or CWDM
  • Optical output connection: LC / UPC
  • Reclocked SDI outputs
  • Reclocking on all outputs at 270Mb/s, 1.483Gb/s, 1.485Gb/s, 2.967Gb/s, 2.970Gb/s
  • Alarms for signal presence and optical faults
  • 5-year transferable warranty
  • Power: 4.5 watts

Ross Video FDT-6604-R2 Specifications:

Optical Outputs

  • Number of Outputs:  2
  • SMPTE Standards Accommodated:  SMPTE 259M-C, SMPTE 292M, SMPTE 424M
  • Nominal Wavelength:
    • FDT-6604: 1310nm
    • FDT-6604-27: 1270nm, 1290nm
    • FDT-6604-31: 1310nm, 1330nm
    • FDT-6604-35: 1350nm, 1370nm
    • FDT-6604-43: 1430nm, 1450nm
    • FDT-6604-47: 1470nm, 1490nm
    • FDT-6604-51: 1510nm, 1530nm
    • FDT-6604-55: 1550nm, 1570nm
    • FDT-6604-59: 1590nm, 1610nm
  • Center Wavelength:
    • FDT-6604: +/- 20nm
    • FDT-6604 CWDM series: -6nm to +7.5nm
  • Output Power:
    • FDT-6604: -7dBm to -2dBm
    • FDT-6604 CWDM series: 0 to +3dB
  • Connector Type:  Single Mode, LC/UPC
  • Laser Type:
    • FDT-6604: Fabry-Perot (FP)
    • FDT-6604 CWDM Series: Distributed Feedback (DFB)

SDI Inputs

  • Number of Inputs:  2
  • SMPTE Standards Accommodated:  SMPTE 259M-C, SMPTE 292M, SMPTE 424M
  • Impedance:  75ohm terminating11
  • Return Loss:
    • >15dB to 1.485GHz
    • >10dB from 1.485GHz to 2.97GHz
  • Cable Length with Equalizer:
    • > 300m of Belden 1694A cable @ 270Mbps
    • > 120m of Belden 1694A cable @ 1.485Gbps
    • > 80m of Belden 1694A cable @ 2.97Gbps
  • DC Offset:  ±0.5V maximum
  • Signal Level:  Max. 1V p-p (0m cable length)
  • Connector Type:  BNC

SDI Outputs

  • Number of Outputs:
    • Full Rear Module (-R2): 6 (including 2x Fiber Out)
  • SMPTE Standards Accommodated:  SMPTE 259M-C, SMPTE 292M, SMPTE 424M
  • Impedance:  75ohm
  • Return Loss:
    • >15dB to 1.485GHz
    • >10dB 1.485GHz to 2.97GHz
  • Signal Level:  800mV ±10%
  • DC Offset:  0V ±50mV
  • Rise and Fall Time (20-80%):
    • 700ps. Typical (270Mbps)
    • 120ps. Typical (1.485Gbps, 2.97Gbps)
  • Overshoot:  <10%
  • Connector Type:  BNC

Environment

  • Operating Range:  0°C to 40°C

Power

  • Power Consumption:  <5W
