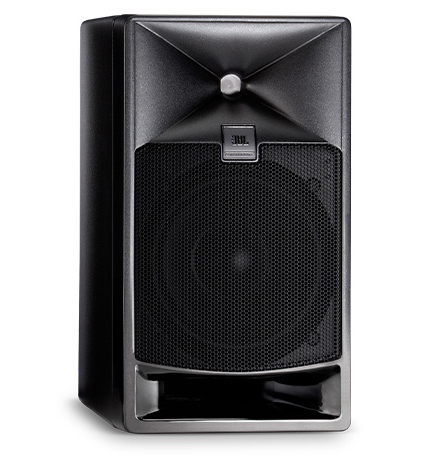

JBL 705i 7 Series 5" Studio Reference Monitor

Part of JBL's 7 Series, the LSR705i 5" studio reference monitor is designed for use in applications such as multi-channel monitoring in post rooms, broadcast facilities and trucks. Leveraging patented technologies developed for JBL's flagship M2 Master Reference Monitor, 7 Series Studio Monitors deliver detailed imaging, extended frequency response and remarkable output from compact enclosures. Centrally amplified and tuned, and easily installed, the 705i studio monitor is the heart of an elegant, scalable system for broadcast and post facilities working in immersive audio formats. Meeting the dynamic range and extended frequency response requirements of today’s production formats, 7 Series incorporates JBL next generation “Super Drivers.” The new 2409H High Frequency transducer incorporates an innovative low-mass annular diaphragm that delivers smooth response beyond 40 kHz, with extraordinary output and very low distortion.

Features

• Patent Pending Image Control Waveguide
• Next Generation Driver Technology
• System Integration
  • Modular and scalable for number of channels and room size
  • 7 Series Monitors and the JBL M2 Master Reference Monitor can be combined to produce a wide range of systems
  • Compact enclosures and mounting hardware allow versatile mounting options and unobstructed sight lines
  • Centralized amplification and processing eliminates the requirement for power source at each speaker location
  • BSS BLU link Networked Audio for ease interface and reduced system noise
  • Harman HiQnet equipped components can be centrally controlled via hardware, software or wireless tablet
• JBL developed custom low frequency transducers

Specifications

• Frequency Response (-1.5 dB): 48 Hz – 23 kHz
• Frequency Range: 39 Hz – 36 kHz
• Max SPL (80 Hz - 20 kHz): > 101 dB SPL / 1m
• Maximum Peak SPL (80 Hz - 20 kHz): > 107 dBSPL / 1m
• HF Driver: 2409H
• LF Driver: 725G
• Dividing Network Transition Frequency: 1.9 kHz
• Input Types: Phoenix Terminals accept 12 gauge speaker wire
• Dimensions (HxWxD): 10.5" x 5.875" x 8.125"(267 x 149 x 206 mm)
• Weight: 9.0 lb (4.08 kg)
• Enclosure: Birch plywood reinforced for mounting
• Mounting: Top, bottom and rear mounting points. 2-hole mounting pattern
