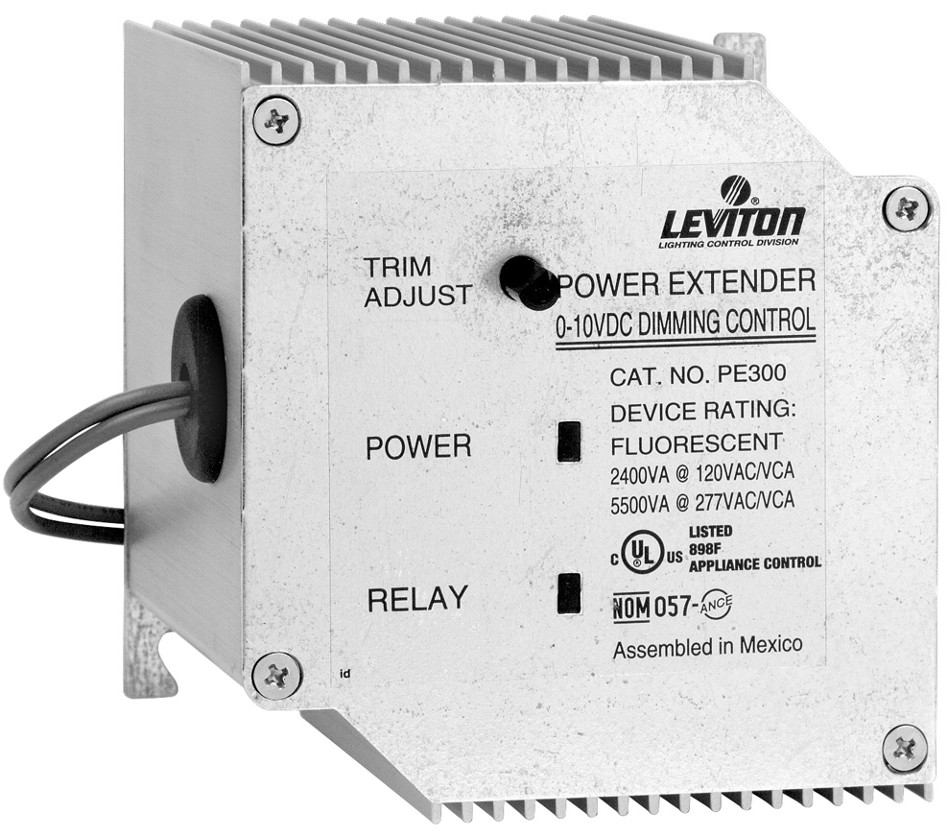

Leviton PE300-D0W
Power Extender, 120 or 277V input, 120V 2400VA Output (or 277V 5500VA) for 0-10VDC Electronic Ballasts

OUR PART #:  PE300-D0W

The Leviton PE300-D0W Power Extender allows a dimming zone’s power handling capacity to be extended to full control of a 20A circuit.
Learn More
Our Price: $234.18
List Price: $256.21
You save 9%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Leviton PE300-D0W
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Leviton PE300-D0W Power Extender allows a dimming zone’s power handling capacity to be extended to full control of a 20A circuit. The PE300 will drive 0-10VDC dimmable fluorescent ballasts such as Advance Mark VII 0-10V, OSRAM Sylvania Quicktronic Helios, or equivalent ballasts.

Leviton PE300-D0W Features:

  • Works with low-voltage non-dimmable and dimmable electronic ballasts, such as Advance Mark VII 0-10V, OSRAM Sylvania Quicktronic Helios, or equivalent ballasts
  • Low-end trim available for setting the minimum brightness level
  • Will emulate the characteristics of the dimmer that it is connected to in terms of dimming range and resolution
  • Works with any Dimensions® Multizone Controller to extend load capacity on any zone
  • 0-10V Max Sink Load: 200mA (~100 ballasts)

Leviton PE300-D0W Specifications:

  • Device Type: Power Extender

Electrical

  • Load Type: 0-10VDC Ballast Only
  • Load Rating: 20A 2400VA 120VAC, 5500VA 277VAC
  • Voltage: 108VAC to 305VAC, 60Hz
  • Power Consumption 6W at 120VAC max., 18W at 277VAC max.
  • Control Input: 120 Volt 50/60Hz
  • Load Output: 0-10VDC Ballast Control

Physical

  • Color: Silver
  • Dimensions (LxWxH): 4.3" x 4.0" x 3.6" (10.92cm x 10.16cm x 9.14cm)

Compliance

  • Standards and Certifications: UL Listed, CSA Certified and FCC Part 15

Environmental

  • Operating Temperature Range 32ºF to 151ºF (0ºC to 55ºC)
  • Storage Temperature Range 14ºF to 185ºF (-10ºC to 85ºC)
  • Relative Humidity 20%-90% non-condensing

Warranty

  • 2-Year Limited Warranty

NOTE: If dimmer has a Neutral wire it must be connected.

For more information and specifications, please refer to items under the "Documentation" tab. All specifications and information subject to change without notice.
