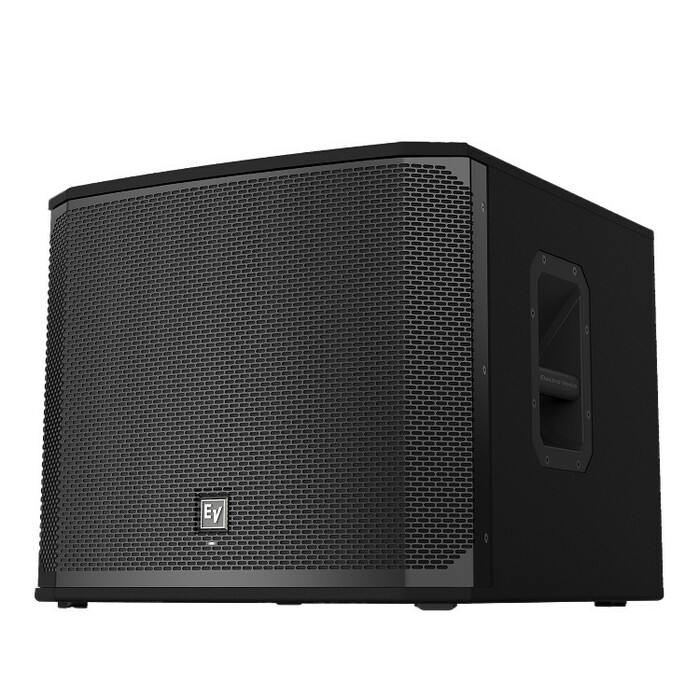

Electro-Voice EKX-15S 15" Passive Subwoofer

The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.

Electro-Voice EKX-15S Features:

• 1,600 Watts (peak), 133 dB peak SPL on the EKX-15S utilizing high sensitivity transducers designed and engineered by EV.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EV Coat finish.
• Large slot ports for low distortion and excellent bass extension.
• Metal grille reinforcement bar (two bars on the EKX-18S).
• M20 threaded pole mount plate.

Electro-Voice EKX-15S Specifications:

• Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
• Connector Type: Dual NL4
• Enclosure Material: 15 mm, plywood with EVCoat
• Frequency Response (-10 dB): 40 Hz - 300 Hz Half Space Measurement
• Frequency Response (-3 dB): 60 Hz - 100 Hz Half Space Measurement
• Grill: 18 AWG steel with powder coat
• LF Transducer: EVS-15C 381 mm (15 in)
• Maximum SPL: 133 dB Maximum SPL is measured at 1m using broadband pink noise at rated peak power rating
• Minimum Impedance: 7.5 Ohm
• Nominal Impedance: 8 Ohm
• Power Handling (Continuous / Peak): 400 W / 1,600 Watts
• Recommended High-Pass Frequency: 35 Hz
• Dimensions (HxWxD): 11RU 455 mm x 530 mm x 551 mm(17.91" x 20.87" x 21.69")
• Weight Net: 24.9 kg (54.9 lbs.)
• Shipping Weight: 31.3 kg (69 lbs.)
