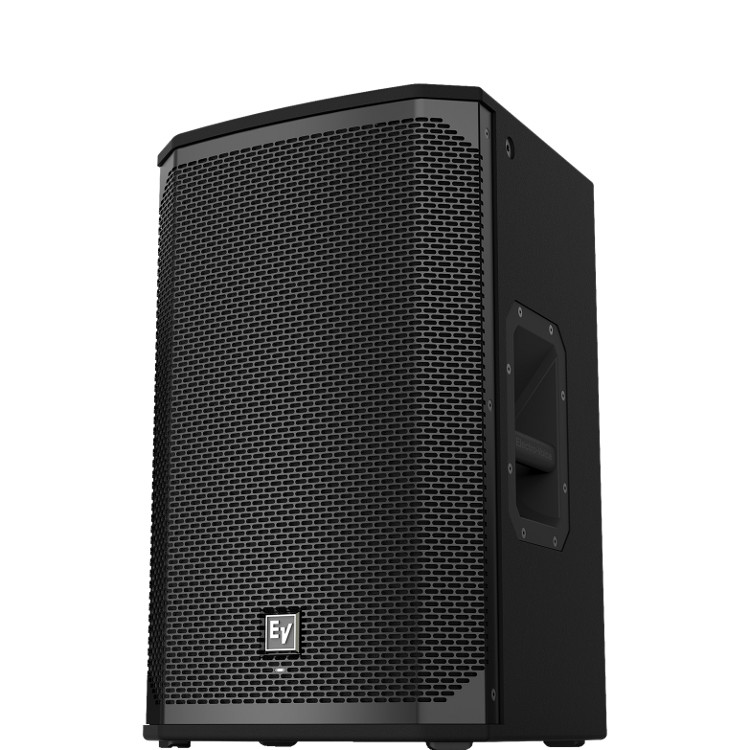

Electro-Voice EKX-12
12" 2-Way Passive Loudspeaker

OUR PART #:  EKX-12

The EKX series is the newest member of the Electro Voice portable loudspeaker family...
Learn More
Our Price: $499.00
List Price: $899.00
You save 44%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EKX-12
Qty:
In Stock

Similar Products

The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The Electro-Voice EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. The Electro-Voice EKX is positioned above the ZLX and ELX series and below the ETX series.

Electro-Voice EKX-12 Features:

  • EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV
  • EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish
  • Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles
  • 90° x 60° pattern for best coverage on mid-size stages. 40° monitor angle with rubber feet

Electro-Voice EKX-12 Specifications:

  • Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
  • Connector Type: Dual NL4
  • Coverage (Nominal -6 dB): H 90°
  • Crossover Frequency: 1.6 k Hz
  • Enclosure Material: 15 mm, plywood with EVCoat
  • Frequency Response (-10 dB): 55 Hz - 20 k Hz Full Space Measurement
  • Frequency Response (-3 dB): 82 Hz - 18 k Hz Full Space Measurement
  • Grill: 18 AWG steel with powder coat
  • HF Transducer: DH-1M 1" titanium compression driver
  • LF Transducer: EVS-12M 12" (300 mm)
  • Maximum SPL: 131 dB
  • Minimum Impedance: 7.5 Ohm
  • Nominal Impedance: 8 Ohm
  • Power Handling (Continuous / Peak): 350 W/1,400 W
  • Recommended High-Pass Frequency: 55 Hz
  • Shipping Weight: 47.18 lbs (21.4 kg)
  • Suspension: (8) M10 threaded mounting points
  • Dimensions (HxWxD): 14RU 23.9" x 14.76" x14.02" (607 x 375 x 356 mm)
  • Weight Net: 38.36 lbs. (17.4 kg)
