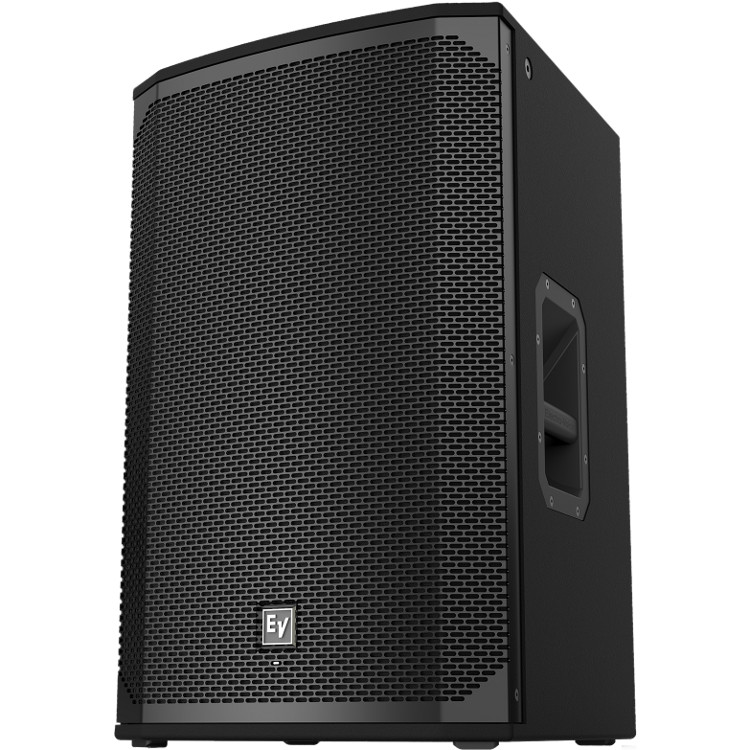

Electro-Voice EKX-15P
15" 2-Way Powered Loudspeaker

OUR PART #:  EKX-15P

The EKX series is the newest member of the Electro Voice portable loudspeaker family...
Learn More
Our Price: $899.00
List Price: $1,619.00
You save 44%!
Write the first review.
Electro-Voice EKX-15P
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.

Electro-Voice EKX-15P Features:

  • QuickSmart DSP: Best-in-class processing, EV’ssignature single-knob user interface, and intuitive menu navigation via LCD
  • High-efficiency 1,500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers
  • Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
  • EV-patented Signal Synchronized Transducers™ (SST) waveguide design: Provides precise and consistent coverage
  • Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

Electro-Voice EKX-15P Specifications:

  • Maximum SPL 134 dB Maximum SPL is measured at 1m using broadband pink noise at maximum output
  • Power Consumption 1.8 A Current rating is 1/8 power
  • Power Rating 1,500 W
  • Frequency Response (-3 dB) 55 Hz - 18 kHz HzFull space measurement using the music DSP preset
  • Frequency Response (-10 dB) 48 Hz - 20 kHz HzFull space measurement using the music DSP preset
  • Coverage (Nominal -6 dB) H 90°
  • Coverage (Nominal -6 dB) V 60°
  • LF Transducer EVS-15M 381 mm (15 in)
  • HF Transducer DH-1M 1" titanium compression driver
  • Crossover Frequency 1.7 kHz
  • Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
  • Enclosure Material 15 mm, plywood with EVCoat
  • Grill 18 AWG steel with powder coat
  • Suspension (8) M10 threaded mounting point
  • Dimensions (HxWxD): 685 mm x 432 mm x 429 mm (26.97"x 17.01" x 16.89")
  • Weight Net: 24.4 kg (53.79 lbs.)
  • Shipping Weight: 29.5 kg (65.04 lbs.)
