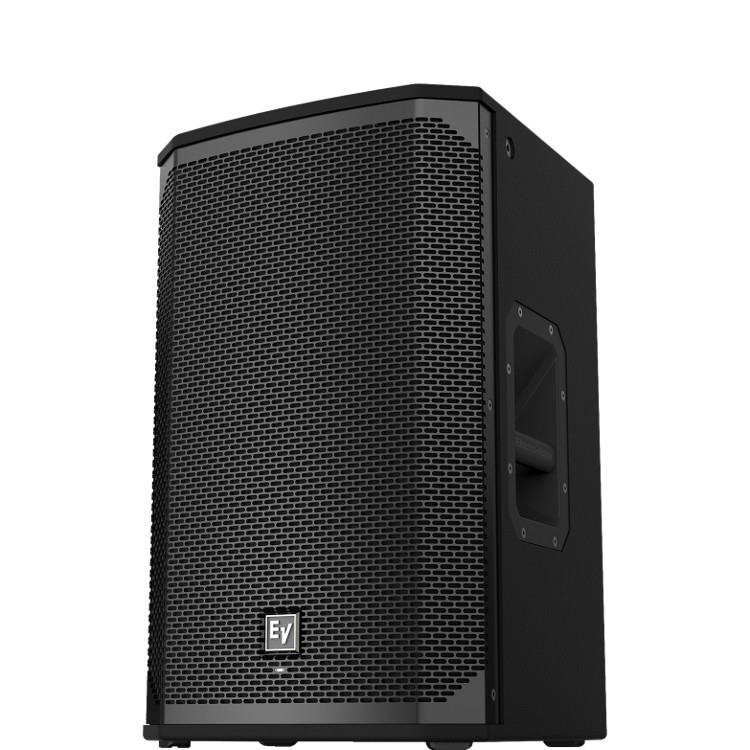

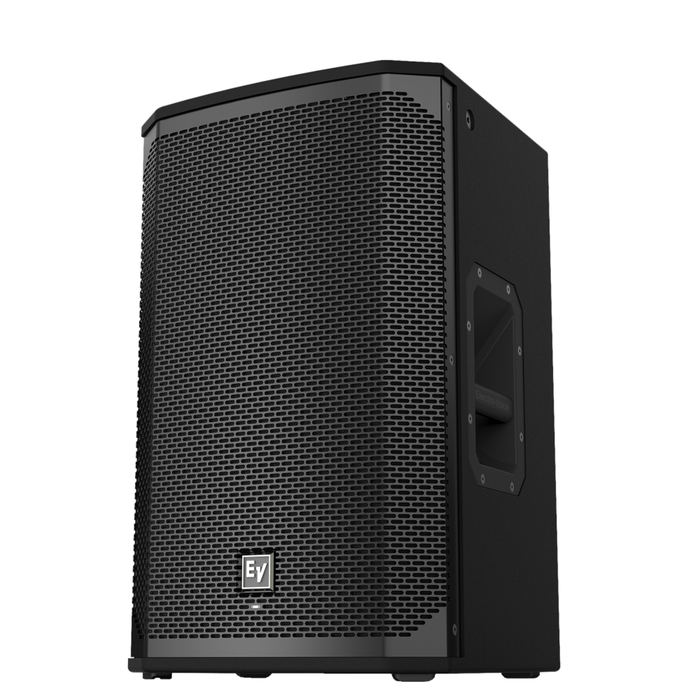

Electro-Voice EKX-12P
12" 2-Way Powered Loudspeaker

OUR PART #:  EKX-12P

Our Price: $799.00
List Price: $1,439.00
You save 44%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EKX-12P
Qty:
In Stock

Similar Products

The Electro-Voice EKX series of portable loudspeakers combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

EKX-12P features high-efficiency Class-D power amplifiers (up to 1500 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1M 1-inch titanium compression driver). The EKX amplifier incorporates intelligent thermal management (with a variable-speed fan controlled by multiple onboard sensors) which ensures superior performance and reliability in demanding environmental conditions.

Powered full-range models allow easy setup via four (4) presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five (5) user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

EKX powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight (8) M10 threaded mounting points, aluminum pole-mounts, and all-metal handles.

Electro-Voice EKX-12P Features:

  • QuickSmartDSP features best-in-class processing, EV's signature single-knob user interface, and intuitive menu navigation via LCD
  • High-efficiency 1,500 Watts Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV
  • Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions
  • EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage
  • Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles

Electro-Voice EKX-12P Specifications:

  • Connector Type: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
  • Coverage (Nominal -6 dB): H 90°
  • Coverage (Nominal -6 dB): V 60°
  • Crossover Frequency: 1.7 kHz
  • Enclosure Material: 15 mm, plywood with EVCoat
  • Frequency Response (-10 dB): 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset
  • Frequency Response (-3 dB): 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset
  • Grill: 18 AWG steel with powdercoat
  • HF Transducer: DH-1M 1" titanium compression driver
  • LF Transducer: EVS-12M 12" (300 mm)
  • Maximum SPL: 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
  • Power Consumption: 1.8 A Current rating is 1/8 power
  • Power Rating: 1,500 Watts
  • Shipping Weight: 50.49 lbs. (22.9 kg)
  • Suspension: (8) M10 threaded mounting points
  • Dimensions (HxWxD): 14RU; 23.9" x 14.76" x 14.02" (607 x 375 x 356mm)
  • Net Weight: 41.45 lbs. (18.8 kg)
