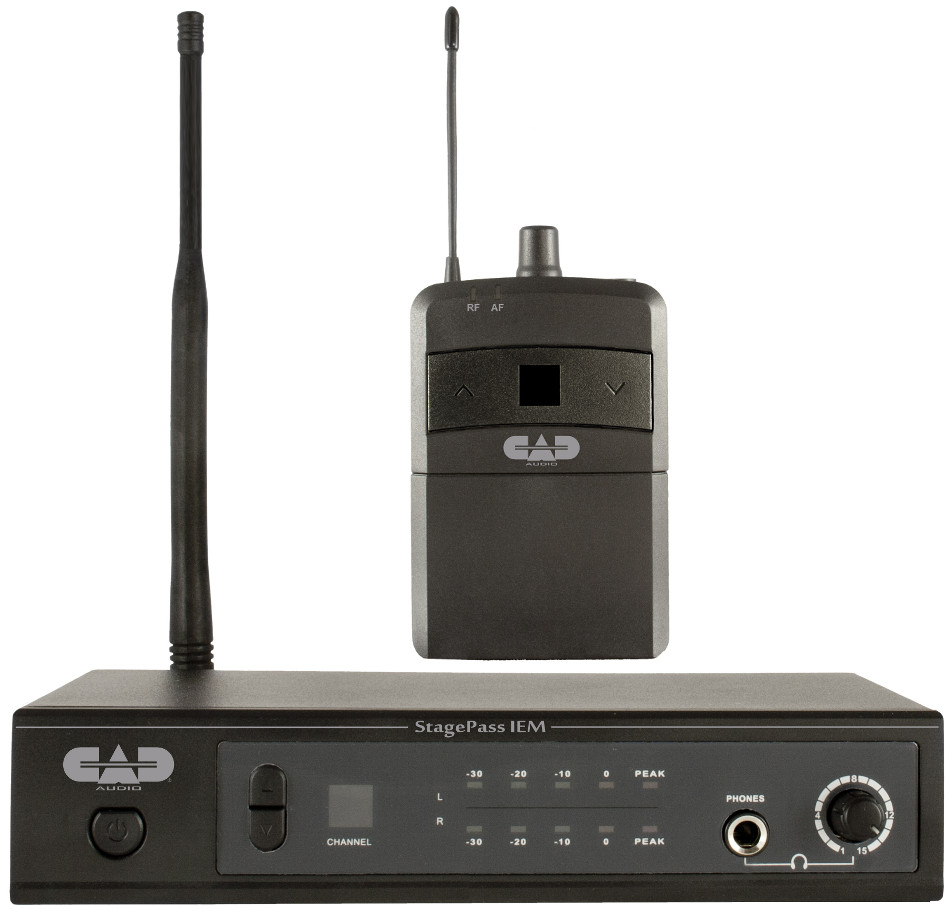

CAD Audio StagePass IEM Stereo Wireless In-Ear Monitor System with Earbuds

The CAD Audio StagePass™ IEM is a high-performance wireless In Ear Monitor System that will deliver superior audio performance while supplying advanced frequency agility, capable enough to cope with today's dynamic RF environment – make it both easy to use and exciting to operate.

The StagePass™ IEM Stereo Wireless In Ear Monitor System features 16-channel frequency agile performance for outstanding connectivity. CADLock™ Automatic Tone Code Squelch eliminates unauthorized interference in RF unfriendly environments. Stereo operation lends flexibility of use – You may send discrete signals to the left or right channel. The MEB2 TruPitch™ Dual Armature Earbuds provide accurate audio reproduction while the EasyFit™ silicon earmolds provide a custom fit.

Includes

• Wireless receiver
• Wireless transmitter
• MEB2 TruPitch™ Dual Armature Earbuds
• Half wave antenna
• Rack ears
• Antenna relocation kit
• Carry case

Features

• 16-Channel UHF Agility for frequency plan flexibility
• Stereo Operation for discrete Right/Left transmission flexibility via combination XLR-¼" connectors
• CADLock™ Automatic Tone Encoded Squelch to eliminate unauthorized interference.
• MEB2 TruPitch Dual Armature Earbuds provide accurate audio reproduction while the EasyFit™ Silicon molds provide a custom fit
• Metal Chassis Transmitter for a durable and formidable shielded enclosure.

Specifications

• Frequency Range: Q Band 470-498 MHz
• Audio Frequency Response: 40 Hz – 16 kHz
• Dynamic Range: > 101 dB
• Dynamic Cardioid Capsule
• Frequency Response: 40 Hz – 16 kHz
• Transmit power: 30 mW
• AA Batteries with > 15 hrs battery life
• Audio Input: Combination XLR - ¼"
