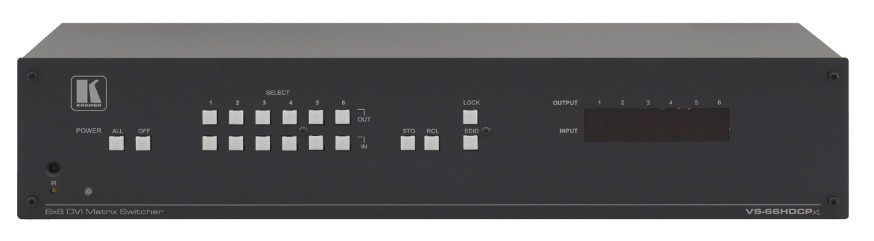

Kramer VS-66HDCPxl
6x6 DVI (HDCP) Matrix Switcher


The VS-66HDCPxl from Kramer is a high-performance matrix switcher for DVI and HDMI signals on a DVI-D connector.
Learn More
Our Price: $2,636.00
List Price: $3,295.00
You save 20%!
Write the first review.
Kramer VS-66HDCPxl
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The VS-66HDCPxl from Kramer is a high-performance matrix switcher for DVI and HDMI signals on a DVI-D connector. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.


  • Conference room presentations.
  • Advertising.
  • Rental and staging.

Kramer VS-66HDCPxl Features:

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - Deep Color, x.v.Color™, 3D Pass-Through, HDMI Compressed Audio Channels.
  • Input/Output - DVI-D signals (on DVI-I connectors).
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
  • EDID Capture - Copies and stores the EDID from a display device.
  • Fast Switching Technology - Reduces switching delay between DVI/HDMI sources.
  • Flexible Control Options - Front panel, IR Remote, RS-232 (K-Router™ Windows®-based software is included), Ethernet (Windows®-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
  • Output Disconnect - Each output.
  • Front Panel Lockout.
  • Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19-inch Rack Mount Size - 2U. Rack “ears” included.

Kramer VS-66HDCPxl Specifications:

  • Inputs:  6 DVI connectors.
  • Outputs:  6 DVI connectors.
  • Bandwidth:  6.75Gbps (2.25Gbps per graphic channel).
  • Compliance With Standards:  Supports DVI and HDCP.
  • Max Resolution: Up to UXGA; 1080p.
  • Power Consumption:  100-240VAC; 50/60Hz, 38VA.
  • Controls:  Front panel buttons, infrared remote control transmitter, RS-232, Ethernet.
  • Operating Temperature:  0° to +40°C (32° to 104°F).
  • Storage Temperature:  -40° to +70°C (-40° to 158°F).
  • Humidity:  10% to 90%, RHL non-condensing.
  • Dimensions:  19" x 9.3" x 2U W, D, H.
  • Weight: 2.5kg (5.5lbs) approx.
  • Included Accessories:  Power cord, IR transmitter, rack “ears”.
  • Options:  External remote IR receiver cable.
