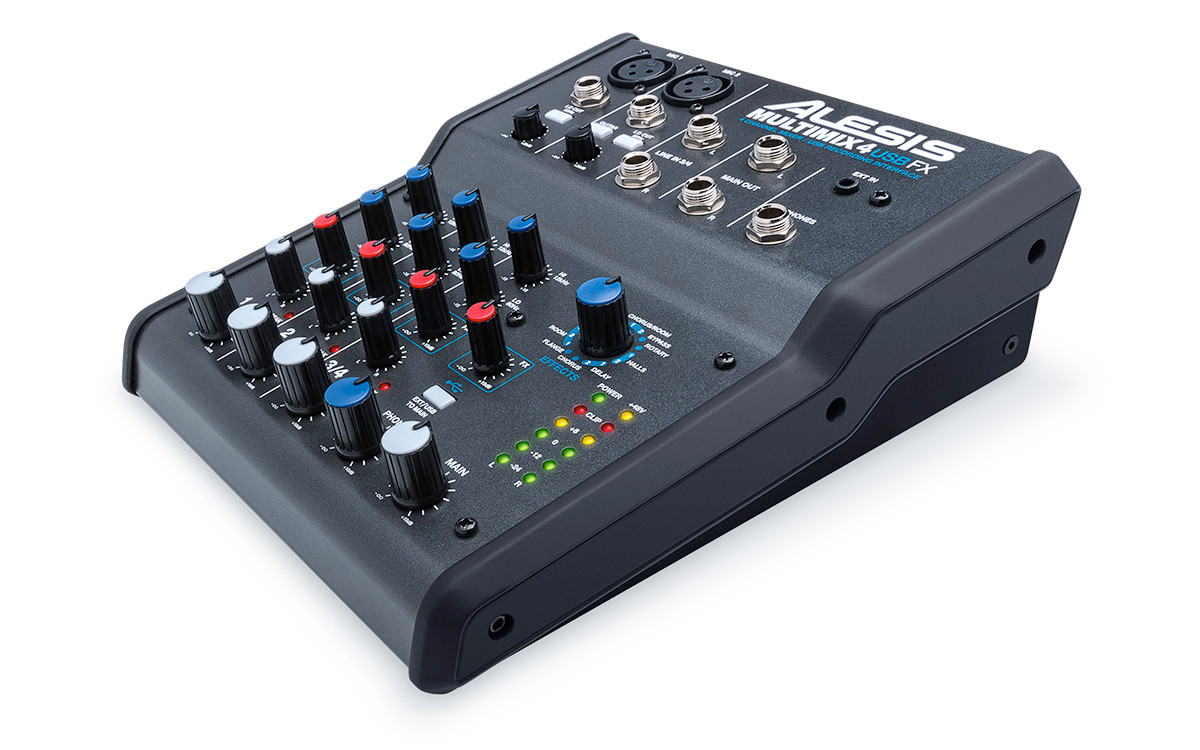

Alesis MultiMix 4 USB FX 4-Channel USB Mixer with Effects

OUR PART #: MULTIMIX-4USB-FX MFR #: MM4USBFXPTOOLSXUS

Copied to clipboard

MultiMix 4 USB FX is a four-channel desktop mixer with a USB digital audio interface that lets you mix live or in the home studio, and record directly to a computer. ...Read more

Alesis MultiMix 4 USB FX 4-Channel USB Mixer With Effects Image 1
Alesis MultiMix 4 USB FX 4-Channel USB Mixer With Effects Image 2
Alesis MultiMix 4 USB FX 4-Channel USB Mixer With Effects Image 3
Alesis MultiMix 4 USB FX 4-Channel USB Mixer With Effects
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

MultiMix 4 USB FX is a four-channel desktop mixer with a USB digital audio interface that lets you mix live or in the home studio, and record directly to a computer. This compact mixer is also perfect for use in video-editing and production studios or portable podcasting setups. Line level outputs deliver analog audio while digital audio is transferred over USB for recording low-noise, CD-quality mixes directly to your Mac or PC.

The four input channels can accept a 1/4" line input while channels one and two also have XLR inputs which support condenser microphones thanks to the selectable 48V-phantom power supply. You can also plug a guitar or bass directly into channel one's switchable high-impedance input. A stereo, 1/4" headphone output with its own level control has been included for private monitoring.

Equally comfortable mixing live sound or in the home studio, MultiMix 4 USB FX features onboard volume, pan, and EQ controls for making quick, accurate adjustments to your mix. Channels one and two offer high and low shelving EQs and independent gain and pan controls along with switchable high-pass filters to reduce low end rumble and handling noise. For convenient stereo mixing and recording, channels three and four are configured as a stereo pair with pan and volume controls.

Plug the MultiMix 4 USB FX’s class-compliant USB connection into your Mac or PC without the need for software drivers and enjoy a digital-direct stereo connection with virtually any audio software application. Bidirectional stereo playback allows you to record the stereo Main output into your computer and listen back using the mixer as an interface. To sweeten your recordings, Pro Tools | First Alesis Edition comes bundled with the Multimix and gives you a powerful software environment to record, edit, and bounce down all your mixes. Plus, you can record stereo audio directly to your iPad with the Apple iPad Camera Connection Kit (sold separately).

MultiMix 4 USB FX comes with high-quality Alesis DSP effects that include spacious reverbs, delays, phasers, and much more. For lush mixes, the internal effects processors enable you to add extra depth to live sound--say, a long delay on the vocalist's channel--or beef up dry recordings with some extra ambiance. Now, you can use professional audio effects with your mixer whether you're out mixing the live gig or at home recording at your desktop.

Includes

  • MultiMix 4 USB FX Mixer
  • USB Cable
  • Power Adapter
  • Pro Tools | First Alesis Edition
  • User Guide
  • Safety and Warranty Manual

Features

  • 4-channel mixer with stereo (2) 1/4" inputs and stereo (2) 1/4" outputs
    • 16-bit, 44.1/48 kHz signal stereo in / stereo out via USB for easy recording and playback
    • (2) XLR inputs with gain trim, switchable high-pass filters, and 48V phantom power
    • (4) 1/4" line-level inputs for instruments and high-impedance guitar input
    • Record directly to your iPad via the Apple iPad Camera Connection Kit (sold separately)
    • Dual-band EQ on XLR inputs for accurate tone control
    • 15 DSP effect variations including reverb, delay,chorus, and more
    • Multicolor LED metering for real-time, visual level feedback
    • Headphone output with independent level control for additional monitoring and mixing
    • Class-compliant USB for plug-and-play support on both Mac and PC
    • Includes Cubase® 7 LE for out-of-the-box music creation

Specifications

  • Inputs:
    • Line (CH 1, 2): 10 K? input impedance 5.5 mV ~ 4.9 V RMS sensitivity for max output
    • Mic (CH 1, 2): 600 ? input impedance balanced 700 mV RMS sensitivity for max output
    • Line (CH 3, 4): 700 mV RMS sensitivity for max output
    • HPF (CH 1, 2): 200 Hz (-1 dB), 80 Hz (-3 dB), 20 Hz (-24 dB)
  • Outputs:
    • Line: 7 V RMS max
    • Headphone: 0.5 W into 47 ?
  • Signal-to-Noise Ratio:
    • Line: > 92 dB
    • (max output; JIS A-weighted) Mic: > 62 dB
  • Distortion: < 0.02%
  • Frequency Response: Line: 20 Hz – 20 kHz (± 0.5 dB),Mic: 20 Hz – 15 kHz (± 0.5 dB)
  • Channel Equalizer: Bass: ± 14 dB @ 80 Hz, Treble: ±14 dB @ 12 kHz
  • Channel Fader Kill: > 90 dB @ 1 kHz
  • Crosstalk: > 85 dB @ 1 kHz
  • Interface: USB 1.1 or higher (stereo in and stereoout)
  • Power Adapter: 10 V AC, 500 mA
  • Weight: 1.5lb
  • Dimensions: 7 3/4 L x 6 W x 2" H
