RapcoHorizon Music NBGDMX5-25
25 Foot Length of 5-Pin DMX, Neutrik Black XLRF to XLRM Cable


Our Price: $35.60
List Price: $74.95
You save 53%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

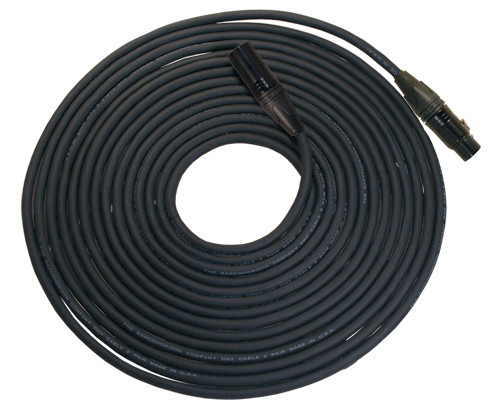

The RapcoHorizon Music NBGDMX5-25 is a 25-foot length of Neutrik Black XLRF to XLRM 5-Pin DMX (DMX5) cable.

DMX is commonly used to control stage lighting and effects.  It can also be used to link not only controllers and dimmers, but also more advanced fixtures and special effects devices such as fog machines and moving lights.  These DMX cables are soldered at the RapcoHorizon Music facilities by trained personnel.

RapcoHorizon Music NBGDMX5-25 Features:

  • 2-pair, 24-gauge conductors
  • Utilizes an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Neutrik connectors
  • Individually tested for performance and quality

RapcoHorizon Music NBGDMX5-25 Specifications:

  • Length:  25'
  • Cable:  DMX-2PR
  • Conductor Gauge:  24 gauge, 2 pair
  • Shield:  Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket:  Matte PVC
  • O.D.:  0.210" or 0.290"
  • Capacitance:  13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance:  25 pF/ft. @ 1 kHz
  • Characteristic Impedance:  110 Ohms NOMINAL
  • D.C. Resistance @ 20┬░C:  25.4 Ohms/1000'
