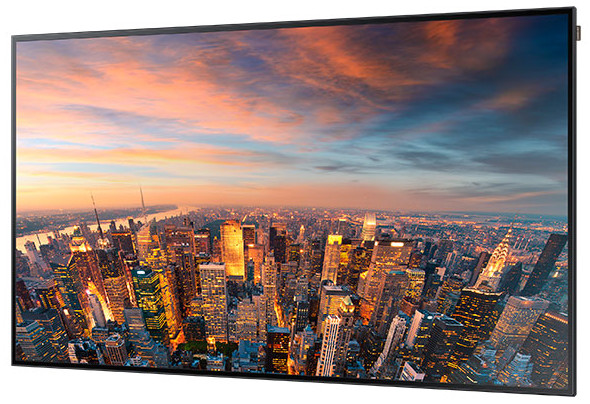

Samsung DM82D
DM-D Series 82" Edge-Lit LED Display with Tuner


The Samsung DM82D provides 24/7 reliability on a large 82" screen for continuous operation.
Learn More
Samsung DM82D Rear/Bottom Connectors Detail
Samsung DM82D Rear/Side Connectors Detail
Samsung DM82D Side Profile View

Click a thumbnail to see more images. (6 total)

Our Price: $4,984.41
List Price: $7,231.00
You save 31%!
Write the first review.
Samsung DM82D
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Samsung DM82D provides 24/7 reliability on a large 82" screen for continuous operation. Display content without an external PC thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. All combined with a sleek industrial design and slim 1.9" chassis depth.

Sony DM82D Features:

  • Reliable 24/7 Continuous Operation
    Innovative Samsung cooling technologies allow your message to be displayed with highly reliable 24/7 continuous operation. So business users can meet 24/7 operating requirements in venues ranging from retail stores to Command & Control facilities.
  • Enhanced SSP with Quad Core Processor
    Experience enhanced System-on-Chip (SoC) performance with a quad core processor. SMART Signage Platform (SSP) is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.
  • Sleek Industrial Design
    Edge-Lit LED technology delivers a sleek industrial design with a 1.9" chassis depth for an elegant look. LED can also slim your TCO thanks to energy efficiency.
  • PC-Less Touch Support
    The optional touch overlay accessory delivers a cost-effective, PC-less touch solution that transforms your display into an interactive whiteboard. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.
  • Full Connectivity
    Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include D-Sub, Component, Composite, HDMI, DVI, USB, SD, RS232C/RJ45, and more.
  • Built-In Wi-Fi
    Expanding your versatility even more, you can enjoy easy media sharing and screen control with built-in Wi-Fi and AllShare® Cast. Use AllShare® Cast over a Wi-Fi connection for simple content mirroring from a tablet or mobile phone to your display.
  • Clean UI Design
    A user-friendly interface provides an intuitive user experience from changing display settings to installing video walls and managing content schedules and templates. Helping to streamline installation and maintenance, users can effectively coordinate their signage.

Sony DM82D Specifications:


  • Screen Size:  82"
  • Panel Technology:  120Hz Edge-lit LED
  • Resolution:  1920x1080
  • Aspect Ratio:  16:9
  • Brightness:  500nit
  • Contrast Ratio (Typical):  5000:1
  • Viewing Angle (H/V):  178°/178°
  • Response Time:  8ms


  • Inputs:
    • VGA (D-sub 15 pin)
    • DVI-D, Display Port 1.2
    • HDMI (3)
    • Component/Composite
    • Stereo mini Jack
  • Outputs:
    • Display Port 1.2 (Loop-out)
    • Stereo mini Jack
  • External Control
    • RS232C(In/Out) thru stereo jack
    • RJ45
  • Sensor:
    • IR
    • Ambient Light


  • Power Supply:  AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
  • Power Consumption (Typical/Max):  138W / 363W
  • Power Consumption (Standby):  < .5W

Environmental Conditions

  • Operating Temperature:  32°F~104°F
  • Operating Humidity:  10~80%

Other Features

  • Special:
    • H/W: Super Clear Coating
    • Temperature Sensor
    • Video Wall(15x15)
    • Pivot Display
    • Clock Battery (80hrs Clock Keeping)
    • Built-in Speaker (10W x 2)
    • WiFi® Module Embedded
    • SD Card Slot
    • S/W: "Magic Clone (to USB)
    • Auto Source Switching & Recovery
    • RS232C/RJ45 MDC
    • Plug and Play
    • PIP/PBP
    • Image Rotation
    • Button Lock
    • DP 1.2 Digital Daisy Chain (HDCP Support)
    • Built-In Magic Info Player S2
    • Firmware Update by Network
    • LFD New Home Screen
    • PC-less VideoWall
    • Predefined Template for Vertical Usage
    • Multi Channel, Mobile Control
    • Event Schedule
    • Backup Player
    • MagicPresenter
  • SMART Signage Platform:  Yes
  • Built-in Tuner:  Yes
  • Media Player Type:  Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0 (x2), Linux OS
  • VESA Standard Wall-Mount Interface:  600 x 400mm
  • 24/7 Operation:  Yes


  • Without Stand (W x H x D):  73.0" x 41.9" x 1.9" (3.5" depth includes handles)
  • Packaging (W x H x D):  78.8" x 48.7" x 18.6"
  • Bezel Width:  20.2mm


  • Set:  106.7 lbs.
  • Package:  136.4 lbs.


  • Standard Warranty:  3 Years On-Site (Parts / Labor / Backlight )


  • Included in Box:
    • Quick Setup Guide
    • Regulatory Guide
    • Warranty Card
    • D-Sub cable
    • Power Cord
    • Remote Controller
    • Batteries
    • RS232C(IN) adapter

Green Management

  • RoHS Compliant:  Yes
  • Emission Standard:  EMC
  • Packaging Recyclability:  Packing Materials Recyclable
