Panasonic PTZ Camera Online Rebate Offer
Through March 31st, When You Purchase Any Of The PTZ Cameras Listed Below From Full Compass You Will Receive Up To $600 Back From Panasonic After Online Rebate!... read more

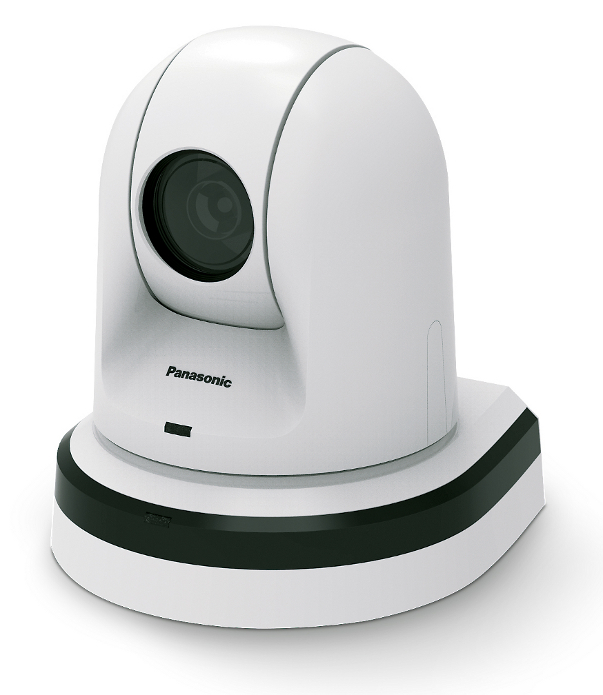

Panasonic AW-HE40SWPJ
30x Zoom HD-SDI PTZ Camera with White Finish

OUR PART #  AWHE40SWPJ

Our Price: $3,450.00
List Price: $4,150.00
You save 17%!
Usually ships in 7-14 business days.

Recommended Accessories

The Panasonic AW-HE40SWPJ full HD camera delivers performance in a wide array of onsite shooting applications, like conferences, lecture capture, and other indoor events/applications where high-quality video is needed, all thanks to its wide angle of view, high-performance zoom, and remarkable color reproduction. It also comes with the flexibility of not requiring any specific installation location, due to its integrated IP transmission and support for PoE+ (Power over Ethernet+), which brings in power via a LAN cable.

Part of Panasonic's AW-HE40 series of pan/tilt/zoom cameras, the advanced features of the the AW-HE40SWPJ include POE+, and IP-live video monitoring. It also comes with newly-developed 1/2.3-type full HD MOS sensors and Digital Signal Processors (DSP) providing high resolution, high sensitivity, and all-around superior video capture in all types of shooting conditions.

Made to produce great results in a host of applications that require high-quality video and precise control, this camera is ideal for use in a range of settings, including houses-of-worship, event capture, distance learning, conference video, and staging. Its precision 30X optical zoom lenses, wide field of view, smooth PTZ functions, and exceptional image quality make this camera great for demanding remote production and IMAG use as well. Addtionally, with IP-Preview transmission and control, plus PoE+ support, the AW-HE40SWPJ also gives you the flexibility needed for easy installation and management.

Along with a 30x optical zoom, it also features a 1.4x digital extender, allowing for capture of crisp close-ups in large lecture halls and even auditoriums. It delivers an exceptional signal-to-noise ratio of 54dB (F4/2000lx, minimum illumination, .35 lx), 1000 TV lines of resolution, and 16-axis color matrix control, for precise camera “painting” and matching.

The AW-HE40SWPJ also has audio input, encoding, and embedding, plus the ability to combine the audio signal from the camera’s switchable mic/line input with the HD-SDI output for signal mixing, recording, or transmission.

Panasonic AW-HE40SWPJ Features:

  • 1/2.3-Type MOS
  • Motorized 30 x optical zoom
  • PoE+ Support
  • Audio input function
  • Night Mode - Supports automatic switching
  • High Dynamic Range (HDR) mode
  • Video Output: HD-SDI
  • HDMI Video Output Format: 1080/50i, 1080/59.94i, 1080/25p, 1080/29.97p, 1080/25psF, 1080/29.97psF, 720/50p, 720/59.94p
  • Freeze During Preset Function
  • IP connection allows control of up to (100) AW-HE40SWPJ units by using AW-RP50E (sold separately
  • IP Image output function allows Image monitoring by IP connection with a PC
  • RS422, RS232C In/Out
  • Preset memory of up to 100 positions
  • Easy installation thanks to use of turn-lock mechanism

Panasonic AW-HE40SWPJ Specifications:

General

  • Power requirements: DC 12 V (Supplied AC adapter) DC 42 to 57 V ( PoE+ power supply)
  • Current consumption: 1.2 A (Supplied AC adapter) 0.4 A (PoE+ power supply)
  • Ambient operating temperature: 0 °C to 40 °C (32 °F to 104 °F )
  • Storage temperature: –20 °C to 50 °C (– 4 °F to 122 °F )
  • Allowable humidity ranges: 20 % to 90 % (no condensation)
  • Mass: Approx. 3.30 lbs (1.5 kg)
  • Dimensions: 6-5/16 " W x 7-41/128" H x 6-17/32" D (160 mm × 186 mm × 166 mm)
    NOTE: (excluding protrusions, direct ceiling mount bracket)
  • Finish: Pearl White
  • Controllers supported*: AW-RP50, AW-RP120G, AK-HRP200G
    *It may be necessary to upgrade the version of the controller in order to support the unit. For more information, contact your Sales Pro.

Input

  • Power: DC 12 V IN, PoE+ (IEEE802.3 at standard)
  • Mic/Line input:
    • Stereo minijack (ø3.5 mm) Input impedance: Approx. 2k (unbalanced)
    • [ Mic input]:
      • Supported microphones: Stereo mic (plug-in power, on/off switching via menu)
      • Supplied voltage: 2.5 V ± 0.5 V
      • Mic input level:–60 dBV ± 3 dBV
    • [Line input]:
      • Input level:–10 dBV ±3 dBV

Output

  • Video Output:
    • HD-SDI: Compliant with the SMPTE292M standards/75  (BNC x 1)

Input/Output

  • Video Output Connectors
    • LAN:
      • LAN connector for IP control (RJ-45)
        Equipped with straight/crossover cable auto detection function
    • RS-232C:
      • Mini DIN 8-pin (IN)
      • Output Mini DIN 8-pin (OUT)
    • RS-422: CONTROL IN RS422 A (RJ-45)
    • USB: Mini-B port (Used for maintenance)
    • SD card: microSD card slot (Used for maintenance)

NOTE: For full specifications and other details, please refer to the items found under the "Documentation" tab, above.
