Cables To Go 54314
Qty:
Similar Products

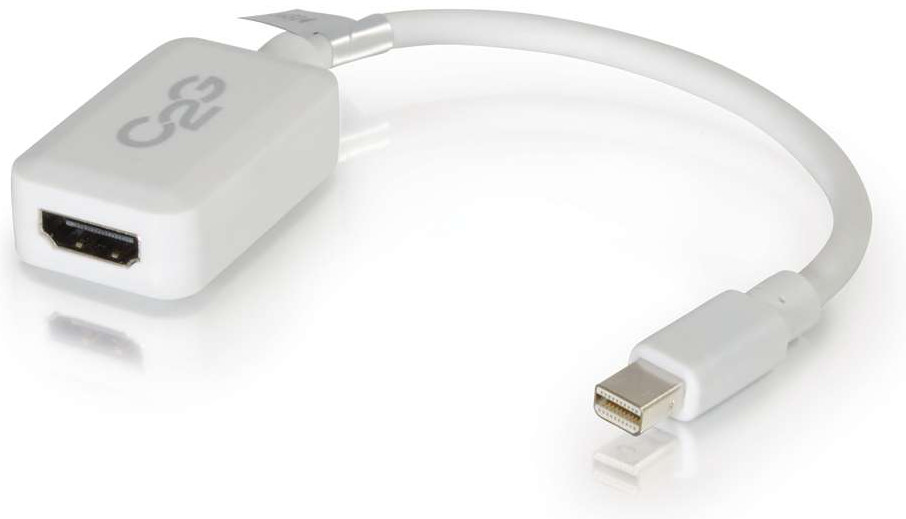

The Cables 2 Go 54314 8" Mini DisplayPort Male to HDMI Female adapter converter cable is an ideal solution for adapting the Mini DisplayPort output of a small laptop or tablet so that it may be connected to a HDTV or projector which accepts a HDMI input. This adapter converter carries a digital audio/video signal, supports up to a 1080p resolution and meets the requirements of high performance applications.

Cables 2 Go 54314 8" Mini DisplayPort Male to HDMI Female Adapter Converter Cable Features:

  • Adapts a Mini DisplayPort output to HDMI
  • Carries a digital audio/video signal
  • Supports up to a 1080p resolution

Cables 2 Go 54314 8" Mini DisplayPort Male to HDMI Female Adapter Converter Cable Specifications:

  • UPC:  757120543145
  • Warranty:  3 years
  • Weight:  0.065 lb
  • Electrical Specifications:
    • Voltage Rating: 30v
    • Conductor Resistance: @ 20°C max
    • Insulation Resistance: 10MOhm/km
    • Time Delay: 5.2ns/m (max)
    • Attenuation:
      • 5.02dB@100-450MHz 7.69dB@1GHz
      • 12.595dB@2GHz 17.495dB@3GHz
      • 22.395dB@4GHz 27.295dB@5GHz
      • 32.195dB@6GHz 37.095dB@7GHz
  • Physical Specifications:
    • Operating Temperature: 0°C to 50°C
    • Storage Temperature: -25°C to 70°C
    • Approvals: CE
    • Warranty: Lifetime
  • Conductor (2 Conductor, 5 Pair):
    • Conductor: 32AWG (7/0.08TC)
    • Insulation: FM-PE, ID:0.63±0.05mm
    • Color: White/Brown, White/Red, White/Orange, White/Green White/Blue
    • Drain: 32AWG (7/0.08TC)
      HD-PE ID:0.63±0.05
    • Shield: AL-Mylar Wrap Coverage—100%
  • Conductor (5 Conductors):
    • Conductor: 32AWG (7/0.08TC)
    • Insulation: HD-PE, ID:0.5±0.05mm
    • Color: Red/Orange/Yellow/Green/ White
  • Overall Cable:
    • Jacket: PVC
    • Shield: AL-Mylar—Coverage 100%
    • Braid—16/9/0.12
    • Drain: 2:30AWG (7/0.08 BC)
    • OD: 5.2±0.2
