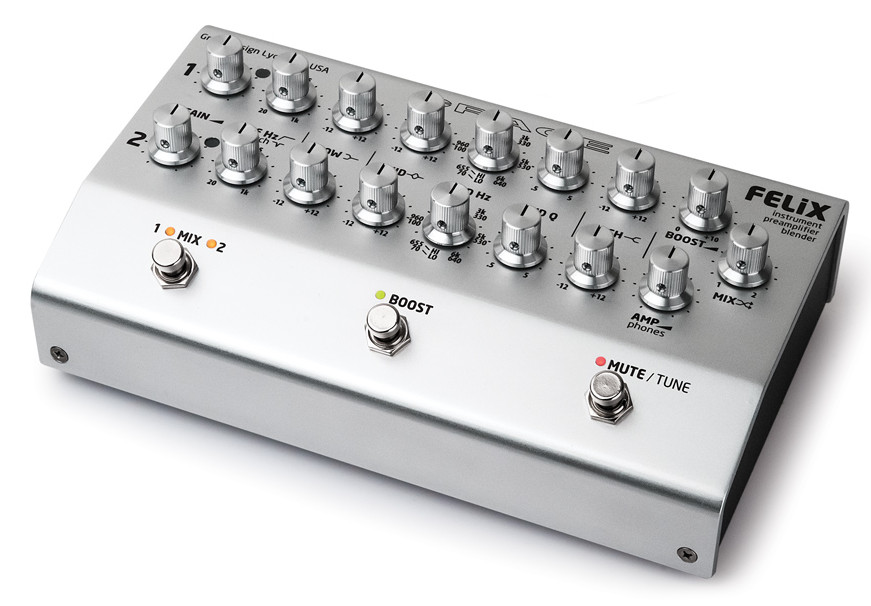

Grace Design FELiX
2-Channel Instrument & Microphone Preamplifier/Blender

OUR PART #:  FELIX

FELiX is a studio grade 2-channel blending acoustic instrument and mic preamp, designed for working musicians, engineers...
Learn More
Our Price: $995.00
List Price: $1,095.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Grace Design FELiX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

FELiX is a studio grade 2-channel blending acoustic instrument and mic preamp, designed for working musicians, engineers, sound companies or venues looking for the highest quality solution for amplifying stringed instruments. FELiX is built into a roadworthy (beer-proof) floor unit chassis of anodized aluminum and steel, portable enough to leave the rack at home but bring studio quality to the stage. With the same stunning audio performance and legendary reliability as Grace Design’s pro audio range, FELiX brings open, musical and nuanced preamplification to any performance situation.

A powerful EQ section allows simple and intuitive tone shaping for even the most unruly of instruments. Each channel’s variable high pass filter cuts 12dB per octave from 20Hz to 1kHz, and can also be set as a notch filter for chasing down problem feedback or rumble areas. Parametric mid range controls cover from 65Hz all the way to 6kHz. While fixed low and high controls are carefully voiced for musical shading of bass and treble.

Controls are simple and clearly marked on a bright panel, making them easy to read and tweak on a dark stage. Footswitch functions include a mute / tune switch for muting all outputs except the dedicated tuner out, a boost switch which activates a variable boost circuit, and finally, an A/B mode switch for when FELiX is in A/B mode (which simply toggles between the two different channels).

FELiX brings the kitchen sink approach to I/O. Inputs include a 48V XLR mic input and two instrument inputs. Two independent transformer isolated DI outputs can be sourced from either the mix or the individual channel. This allows you to send the front of house a mix or each channel independently. A dedicated, level controlled amplifier output can be sourced from the mix or channel 2. A dedicated tuner output stays active when all the other outputs are muted. A side panel mounted 1/8” mini jack headphone amplifier is there for practicing, private noodling during boring soundchecks, or scrutinizing dubious eq decisions. A TRS insert is included for adding effects, and finally, a remote footswitch jack is included if FELiX is going to spend his life in a rack or up off the floor.

Whether it's guitar, bass, fiddle, mandolin, cello or banjo - or that weird 3-string gourd thing - FELiX is your instrument’s new best friend.

Grace Designs FELiX Features:

  • Open, musical and detailed instrument and mic preamplification for discerning artists and engineers
  • 2-channel audio path with blend output control
  • m101 style transimpedance microphone preamplifier, no electrolytic capacitors in the signal path
  • Ultra precision 0.5% thin film resistors are usedin the signal path
  • Careful power supply design and grounding yield anultra-quiet signal path and professional level headroom and line driving ability
  • Fully ground isolated DI outputs with high quality,low distortion, fully shielded transformers
  • Super rugged 1/4” connectors with heavy duty metalbushings
  • Powerful, independent EQ on both channels – hi andlow shelving and full parametric midrange
  • Mid frequency control has two ranges 70-640Hz / 655 -6kHz
  • 20Hz-1kHz sweepable HPF on both channels, can also beset as notch filter
  • A/B footswitch for multiple instrument configurations or soloing different pickups
  • Mute/tune footswitch mutes all outputs except dedicated tuner out
  • Boost footswitch for variable 10dB level boost (global)
  • DI outputs sources are configurable - Ch1 (mix orCh1) Ch2 (mix or Ch2)
  • Dedicated level controlled stage amp output (configurable as blend or Ch2)
  • Dedicated tuner out, remains hot when unit is muted
  • Side panel switches for 48V, phase, mid Hz rangeselect, HPF/notch select, 12V and A/B mode select
  • 12V mic input power available on Ch2
  • Phase reverse switch for each channel
  • 3 input impedance settings on each channel – Ch1 10K,1MEG, 10MEG / Ch2 332K, 1MEG, 20MEG accommodating a wide range of pickup types
  • Aux footswitch jack for accessing switch functions if Felix is mounted in a rack tray or on top of an amp
  • Mic stand flange mount screw holes holes for putting Felix on a mic stand
  • 1/8” headphone jack, active when FELiX is muted
  • Global TRS effects insert jack
  • Universal 100-240 AC power supply with standard IEC cable – no wall wart - take FELiX anywhere in the world
  • Full 5 year transferable warranty
