Elation Pro Lighting CUEPIX Blinder WW4
4x100W COB LED Blinder

OUR PART #:  CUEPIX-BLINDER-WW4

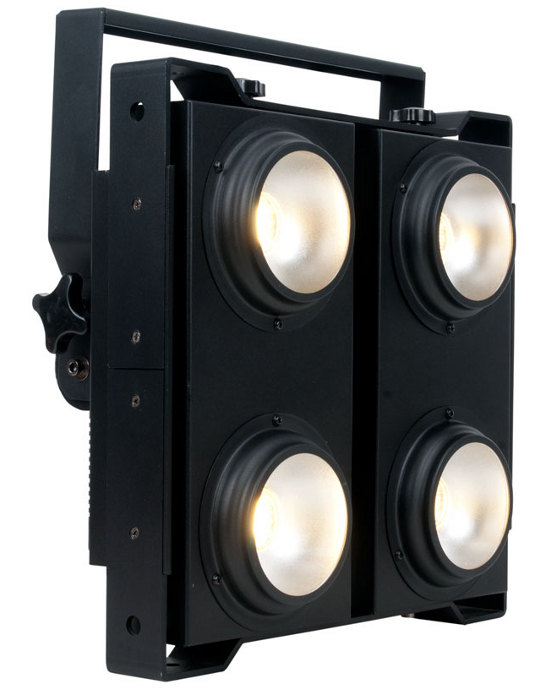

The CUEPIX Blinder WW4™ from Elation Lighting features (4) long life 100W Warm White 3,200K COB LEDs that have a 62° beam angle.
Learn More
Our Price: $960.00
List Price: $1,200.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting CUEPIX Blinder WW4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The CUEPIX Blinder WW4™ from Elation Lighting features (4) long life 100W Warm White 3,200K COB LEDs that have a 62° beam angle. RDM (Remote Device Management), individual control of each COB module, manual pan focus, variable and selectable dimming curves with strobe effects highlight this model. System management of this chip on board fixture is achieved via 3pin and 5pin DMX and powerCon in/out connections, LCD menu display with 4 button control panel. This unit produces flicker free operation for TV and Film and comes with an integrated yoke and side mounting brackets, and a multi-voltage universal auto switching power supply (100-250v).

Elation CUEPIX Blinder WW4 Features:

  • High Power Long Life Warm White COB LEDs
  • 62° Beam Angle / 100° Field Angle
  • Individual Control of Each COB Module
  • 5 Variable Dimming Curve Modes
  • RDM (Remote Device Management)
  • Flicker FREE Operation for TV and FILM

Elation CUEPIX Blinder WW4 Specifications:

  • Source:
    • (4) 100W Warm White 3,200K COB LEDs
    • 100,000 Hour Average Life
  • Photometric Data: 12,300 LUX 1,143 FC @3.3’ (1M) / 3,200K
  • Effects:
    • Strobe
    • Dimming : 0% - 100% of Each COB Module
    • Variable Dimming Curves
  • Control / Connections:
    • 6 DMX Channel Modes (1 / 2 / 4 / 5 / 7 / 9)
    • 4 Button Control Panel and LCD Menu Display
    • 3pin and 5pin DMX In/Out
    • RDM (Remote Device Management)
    • powerCON Power In/Out
  • Size / Weight:
    • Length: 15.7" (400mm)
    • Width: 6.9" (174mm)
    • Horizontal Height: 17.4" (441mm)
    • Weight: 21.0 lbs. (9.5kg)
  • Electrical / Thermal:
    • AC 100-240V - 50/60Hz
    • 427W Max Power Consumption
    • 5°F to 113°F (-15°C to 45°C)
  • Approvals / Ratings: CE | IP20
  • Installation:
    • Rigging: Integrated Yoke and Side Mounting Brackets
    • Working Position: Any (360°)
  • Included Accessories: (1) Power Cable
