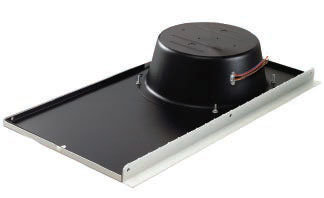

Lowell LT-810-72-BBB 8" Speaker Package, 1x2 Tile System, 15W, 70V/25V, Black

The Lowell LT-810-72-BBB is an 8" 15W drop ceiling speaker housed in a 1x2 tile assembly and features a 70/25V transformer, black grille and backbox. This speaker is supported by the included patented integral T-Bar grid for fast installation when replacing half of non-tegular 2x2 (1/4 of non-tegular 2x4) ceiling tile.

Lowell LT-810-72-BBB Features:

• 15W dual cone speaker with 10 oz. magnet, forbackground music and commercial paging.
• 70/25V transformer with taps at 0.25,0.5, 1, 2, 5 W
• Fine-perforation black grille for maximum free-air spaceand excellent sound transmission.
• 0.147 cu.ft. backbox protects speaker assembly. Speakerleads exit through metal clamp for fast connection—splice connecting wires,push them inside enclosure, tighten clamp.

Lowell LT-810-72-BBB Specifications:

• Assembly Size: 1 x 2
• Driver: 810 (15W)
• Transformer: TLM572
• Transformer Taps: 0.25, 0.5, 1, 2, 5 W (70/25)
• Backbox (cu. ft.): 0.147
• Grille: Black
• Volume Control Knob: No
