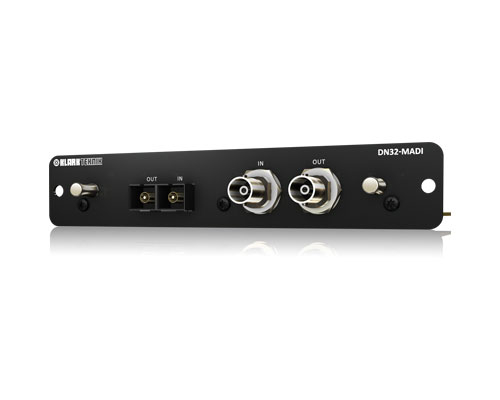

Klark Teknik DN32-MADI
MADI Expansion Card for Behringer and Midas Digital Mixing Consoles

OUR PART #:  DN32-MADI

Our Price: $349.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Klark Teknik DN32-MADI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Klark Teknik DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.

DN32-MADI features optical duplex SC-plugs (IEC874-19) to connect with MADI devices using multimode fiber optical cable. Klark Teknik has tested multimode cable connections of 500 meters in length successfully, and distances of up to 2 km may be possible.

Dual BNC connectors are also provided for transmission on standard 75 Ohm coaxial cables up to 100 meters in length. When both the optical and coaxial interfaces are utilized, the coaxial I/O serves as a redundant connection, and is automatically activated should the optical connection become unavailable.

Both the BNC coaxial and fiber optical inputs can also function as the word clock source for your mixing console. Alternately, the coaxial and optical outputs can transmit the console's internal word clock to external devices.

The DN32-MADI card's input stream can accommodate up to 64 channels, 32 of which can be used inside your console. Likewise, 32 of these internal signals can be transmitted on the MADI output stream, replacing those of the corresponding input channels. This also means the MADI output channels not allocated to the console signals simply pass their corresponding input channels through. This convenient feature allows two consoles to be easily combined via their DN32-MADI cards to provide a total of 64 channels for live sound or recording.

Klark Teknik DN32-MADI Features:

  • MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles
  • Up to 32 bidirectional channels @ 48 kHz sample rate
  • Operates up to 500 m over fiber optical link and 100 m over coaxial copper link
  • Optical transmission on SC-Duplex connector
  • Copper transmission on 75 Ohm coaxial BNC connectors
  • Dual-redundant operation with failover from optical to copper connections
  • Operates as either MADI clock master or MADI clock slave
  • Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels
  • 3-Year Warranty Program
  • Designed and engineered by Klark Teknik in England
