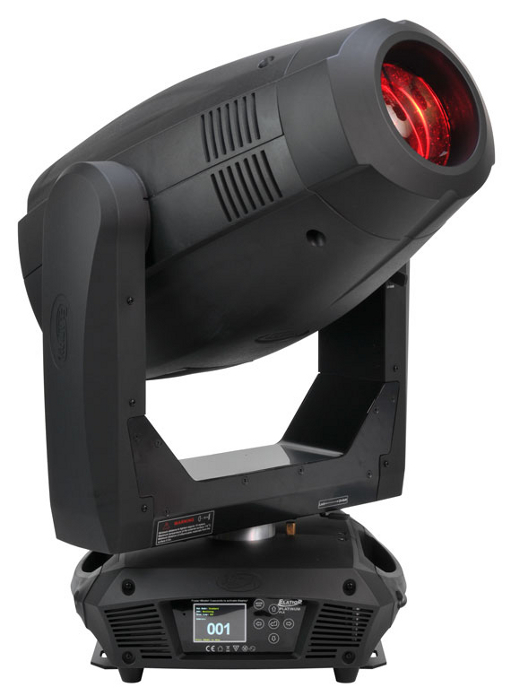

Elation Pro Lighting PLATINUM FLX
470W 3-in-1 Illuminare with Full CMY Color Mixing

OUR PART #:  PLATINUM-FLX

The Platinum FLX™ from Elation Lighting is an innovative full featured patent pending design 3-in-1 illuminare which can be utilized as a beam, spot, or wash fixture...
Learn More
Similar Products

The Platinum FLX™ from Elation Lighting is an innovative full featured patent pending design 3-in-1 illuminare which can be utilized as a beam, spot, or wash fixture, featuring the brand new Phillips™MSD Platinum 20R 470W 80CRI lamp that produces a 7,800K, 23,000 total lumens output. This ouput is comparable to 1,200W fixtures, 2.3° to 23° zoom in beam mode and 3° to 32° zoom in spot mode, along with full CMY color mixing plus linear CTO color correction. This unit also comes with 10 dichroic colors including UV, CTB, plus white (open), 8 rotating-interchangeable and 6 static-stamped gobos, 6-way linear and 8-facet rotating prisms, and animation wash frost effects. Control for this model is available with Art-NET (DMX Over Ethernet) support, 5pin DMX, RJ45 Ethernet, and powerCON connections, as well as a (6) button control full color 180° reversible menu display. The Platinum FLX draws 650W max power consumption and comes with a multi-voltage universal auto switching power supply (100-240v).

Elation Pro Lighting Platinum FLX Includes:

  • Platinum FLX 3-in-1 Illuminare
  • Two Omega Brackets
  • 5pin DMX
  • Safety Cable
  • powerCON Cable

Elation Pro Lighting Platinum FLX Features:

  • Patent Pending 3-in-1 Beam, Spot, and Wash Illuminare
  • Comparable Output To 1,200W Fixtures
  • NO Lux Loss in Spot Mode
  • 2.3° - 23° Beam and 3° - 32° Spot Zoom
  • 6-Way Linear and 8-Facet Rotating Prisms
  • Full CMY Color Mixing and Linear CTO Color Correction
  • Animation and Wash Frost Effects
  • Art-NET (DMX Over Ethernet) Support

Elation Pro Lighting Platinum FLX Specifications:

  • Source:
    • Phillips™ MSD Platinum 20R 470W Lamp
    • 23,000 Total Lumens, 7,800K, 80CRI
    • 1,500 Hour Average Lamp Life
  • Photometric Data:
    • 19,133 Lumens Beam Mode / 11,262 Lumens Spot Mode
    • 165.500 LUX 15,375 FC @49.2’ (15m) (2.3° Beam)
    • 121,500 LUX 11,287 FC @49.2’ (15m) (3° Spot)
  • Effects:
    • 6-Way Llinear and 8-Facet Rotating Prisms
    • Animation Effect
    • Strobe and Electronic Dimming
    • Wash Frost Filter
  • Color:
    • Full CMY Color Mixing
    • Linear CTO Color Correction
    • 10 Dichroic Colors Including UV, CTB, + White
  • Gobos:
    • Two Gobo Wheels
    • Eight Interchangeable / Rotating / Indexing Gobos
    • Six Static-Stamped / Indexing Gobos
  • Control / Connections:
    • Three DMX Channel Modes (pending)
    • RDM (Remote Device Management)
    • 6 Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • 8 / 16 Bit Resolution Adjustable Movement
    • 5pin DMX In/Out
    • RJ45 Ethernet In/Out (Art-NET)
    • powerCON Power In
  • Size / Weight:
    • Length: 14.1” (359mm)
    • Width: 21.0” (533mm)
    • Vertical Height: 29.9” (759mm)
    • Weight: pending
  • Electrical / Thermal:
    • AC 100-240V - 50/60Hz
    • 650W Max Power Consumption
    • 14°F to 113°F (-10°C to 45°C)
  • Approvals / Ratings:
    • CE | IP20
  • Installation:
    • Rigging: Clamps (Not Included)
    • Working Position: Flat Surface / Inverted (180°)
