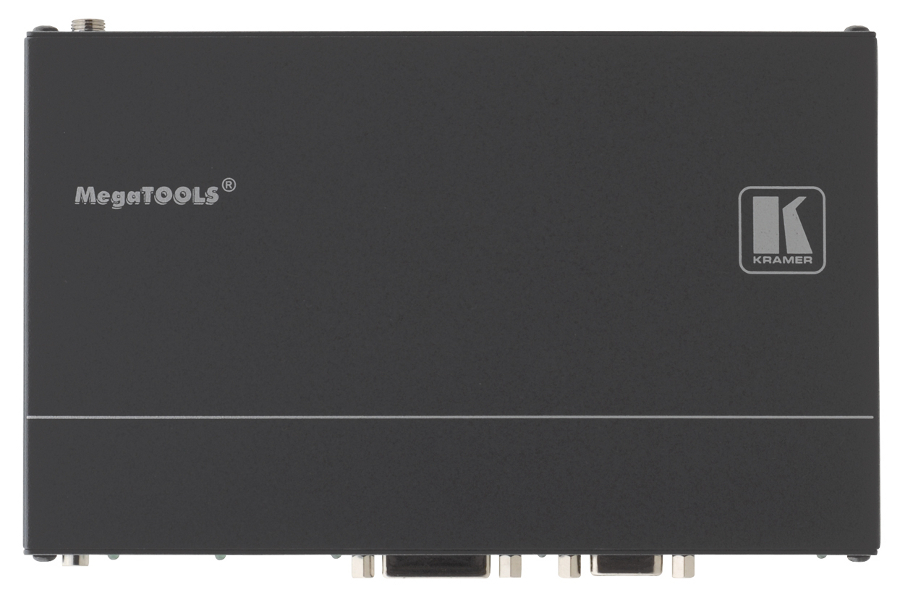

Kramer SID-X1N
4-Input Multi-Format Video over DGKat Transmitter & Step-In Commander

OUR PART #:  SID-X1N

The SID-X1N from Kramer is a DGKat™ twisted pair transmitter and step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals.
Learn More
Our Price: $576.00
List Price: $720.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer SID-X1N
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SID-X1N from Kramer is a DGKat™ twisted pair transmitter and step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step-In” button that allows the local source to be routed as the active source on the main display through the main switcher. The SID-X1N also provides an unbalanced, stereo audio output. When the SID-X1N is connected to a switcher, it also controls the input and output selection of the switcher. This all-in-one transmitter allows switching between inputs when working with DGKat receivers using RS-232 commands making it a consideration for cost-effective installations.

Applications:

  • Boardrooms
  • Presentation rooms

Kramer SID-X1N Features:

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphics channel).
  • Compatible Switcher - VP-81SIDN.
  • HDTV Compatible.
  • HDCP Compliant. - Works with sources that support HDCP repeater mode.
  • HDMI Support - x.v.Color™ and 3D.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ -Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • Data Equalization and Reclocking.
  • Input Signal Detection - Based on video clock presence.
  • Automatic Input Selection - Based on manual selection or last connected input.
  • Automatic Analog Audio Detection and Embedding.
  • Local Balanced Audio De-embedding.
  • Support for Digital Audio Formats.
  • Lockable EDID.
  • DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. Kramer strongly recommends using Kramer DGKat™ cables designed specifically for optimum performance.
  • Cable - Requires STP (shielded twisted pair) cable.For optimum range and performance, use Kramer's BC-DGKat623 or BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 6 and CAT 7cables may not reach these ranges. Use only shielded cable where both ends ofthe shield are soldered to ground.
  • Power Connect™ System - A single connection to the transmitter powers both units when the devices are within 150ft (50m) of eachother.
  • Local Step-In Switching - Button & contactclosure.
  • Power Supply - Requires independent power supply.
  • Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a1U rack space with the optional RK-T2B rack adapter.

Kramer SID-X1N Specifications:

  • Inputs: 1 HDMI, 1 DVI-D on a DVI-I connector, 1DisplayPort, 1 VGA on a 15-pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack.
  • Output: 1 DGKat on an RJ-45 connector, 1unbalanced stereo audio on a 3.5mm mini jack.
  • Standards: HDMI with x.v.Color™ and 3D; HDCP: works with sources that support HDCP repeater mode.
  • Maximum Step-In Distance: 50m (164ft) up to 1080p@60Hz.
  • Power Consumption: 12V DC, 950mA.
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: -40° to 158°F (-40° to +70°C)
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions (WxDxH): 7.4" x 4.5" x 1" (18.8cmx 11.3cm x 2.5cm)
  • Weight: 0.48 kg (1.1lbs) approx.
  • Included Accessories: Power supply.
  • Options: RK-T2B 19" rack adapter, RTBUS-12, RTBUS-22,SID-X1BP Kit (substitute black top plate for the SID-X1N that blends with thecolor of the modular TBUS-10xl), RC-10TB remote contact closure switch.
