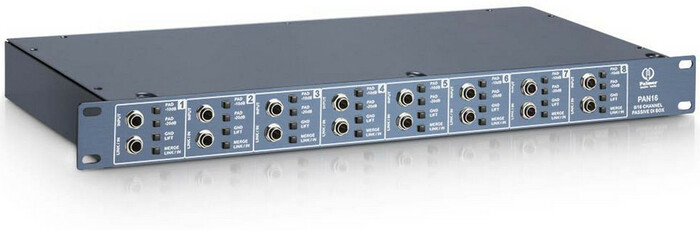

Palmer PAN16
8 Channel Passive DI Box

OUR PART #  PAN-16

Our Price: $499.95
List Price: $824.95
You save 39%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Palmer PAN16 is an 8-channel passive DI box in a 19" 1RU rack format. Through the special MERGE THRU/IN function, the parallel THRU output can be connected as a second input for looping the signal. The signal is fed with the one from the INPUT jack as a mono sum into the output. Thus, the PAN16 offers a maximum of 16 inputs, two PAD buttons enable an attenuation of 10, 20 or 30 dB. The outputs are on XLR connectors and are electrically isolated and balanced by a transformer. They are available with 8 additional THRU-sockets on the rear panel of the device.

Palmer PAN16 8-Channel Passive DI Box Specifications:

  • Product type: DI box
  • Type: passive
  • Channels: 8
  • Inputs: 8 / 16
  • Input connectors: 6.3 mm Jack
  • Max. input level: 54 dBu
  • Input impedance: ((at) 60 Hz) 1 M Ohm(s)
  • Input pad: 0 / -30 dB
  • Outputs: 4 (+ 4 Parallel Thru out)
  • THRU outputs/channel: 2
  • Output connectors: XLR, 6.3 mm Jack
  • Max. output level: 54 dB
  • Output impedance: 600 Ohm(s)
  • Frequency response: 10 Hz - 40 kHz
  • Transformer balanced: yes
  • Ratio: 10 : 1
  • Controls: PAD -20dB, PAD -10dB, merge, ground lift
  • Cabinet material: sheet steel
  • Cabinet surface: powder coated
  • Width: 480 mm
  • Width: 19"
  • Depth: 200 mm
  • Height: 45 mm
  • Height: 1 RU
  • Weight: 2.39 kg

Palmer PAN16
8 Channel Passive DI Box

OUR PART #  PAN-16

Product Information:

The Palmer PAN16 is an 8-channel passive DI box in a 19" 1RU rack format. Through the special MERGE THRU/IN function, the parallel THRU output can be connected as a second input for looping the signal. The signal is fed with the one from the INPUT jack as a mono sum into the output. Thus, the PAN16 offers a maximum of 16 inputs, two PAD buttons enable an attenuation of 10, 20 or 30 dB. The outputs are on XLR connectors and are electrically isolated and balanced by a transformer. They are available with 8 additional THRU-sockets on the rear panel of the device.

Palmer PAN16 8-Channel Passive DI Box Specifications:

  • Product type: DI box
  • Type: passive
  • Channels: 8
  • Inputs: 8 / 16
  • Input connectors: 6.3 mm Jack
  • Max. input level: 54 dBu
  • Input impedance: ((at) 60 Hz) 1 M Ohm(s)
  • Input pad: 0 / -30 dB
  • Outputs: 4 (+ 4 Parallel Thru out)
  • THRU outputs/channel: 2
  • Output connectors: XLR, 6.3 mm Jack
  • Max. output level: 54 dB
  • Output impedance: 600 Ohm(s)
  • Frequency response: 10 Hz - 40 kHz
  • Transformer balanced: yes
  • Ratio: 10 : 1
  • Controls: PAD -20dB, PAD -10dB, merge, ground lift
  • Cabinet material: sheet steel
  • Cabinet surface: powder coated
  • Width: 480 mm
  • Width: 19"
  • Depth: 200 mm
  • Height: 45 mm
  • Height: 1 RU
  • Weight: 2.39 kg
