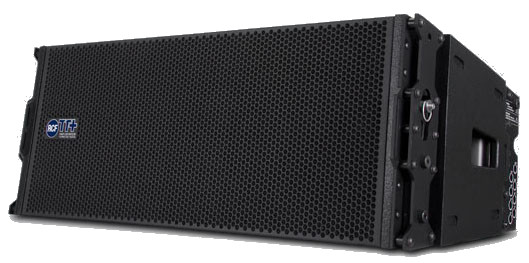

RCF TTL33-A II
750W 3-Way Active Line Array Module

OUR PART #:  TTL33-A-MK2

The RCF TTL33-A II is a compact, wide dispersion, 3-way active line array module that offers the highest performance from a small size line array.
Learn More
Our Price: $5,499.00
List Price: $7,749.00
You save 29%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RCF TTL33-A II
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The RCF TTL33-A II is a compact, wide dispersion, 3-way active line array module that offers the highest performance from a small size line array. The incredible high output and dynamics, the extreme accuracy and high frequency extension plus the compact size makes the TTL33-A II the ideal tool for outdoor sound reinforcement, live performances and events as well as fixed installations in theatres, concert halls or auditoriums.

The TTL33-A II is designed for applications such as touring sound reinforcement for mid-size venues, high-quality reinforcement of music and speech, medium to large theatres and night clubs, stadiums, arenas, concert halls and corporate A/V presentations.

RCF TTL33-A II Features:

  • 750W switching amplifiers
  • Wide, constant directivity, coverage angle
  • 6 high power neodymium woofers
  • High quality analog input board
  • 96 kHz, 32 bit DSP processing
  • Soft limiter and RMS protection
  • Maximum output per size available on the market

RCF TTL33-A II Specifications:

  • Acoustical:
    • Frequency Response (-3dB):  60 Hz - 20 kHz
    • Max SPL:  135dB
    • Horizontal coverage angle:  100┬░
    • Vertical coverage angle:  15┬░
    • Compression Driver:  3x 1.0" neo, 37mm voice coil
    • Woofer:  2x 8" neo, 64 mm voice coil
  • Input/Output Section:
    • Input signal:  Bal/unbal
    • Input connectors:  XLR, RDNet Ethercon
    • Output connectors:  XLR , RDNet Ethercon
    • Input sensitivity:  -2 dBu / + 4 dBu
  • Processor Section:
    • Crossover frequencies:  400 Hz / 1800 Hz
    • Protections:  Thermal , HF
    • Limiter:  RMS, fast limiter
    • Controls:  HF correction, cluster size, HPF
  • Amplifier:
    • Total power:  750 Watts  RMS
    • High frequencies:  D/250 Watts RMS
    • Mid frequencies:  D/500 Watts  RMS
    • Low frequencies:  D/500 Watts  RMS
    • Cooling:  Convection/forced
    • Connections:  Powercon in/out
  • Cabinet:
    • Cabinet Material:  Baltic birch
    • Hardware:  Array side fittings
    • Handles:  2 on side
    • Color:  Black
  • Physical:
    • Height:  11.8" (300mm)
    • Width:  30.0" (760mm)
    • Depth:  18.2" (450mm)
    • Net Weight:  71.5 lbs (32.5 kg)
