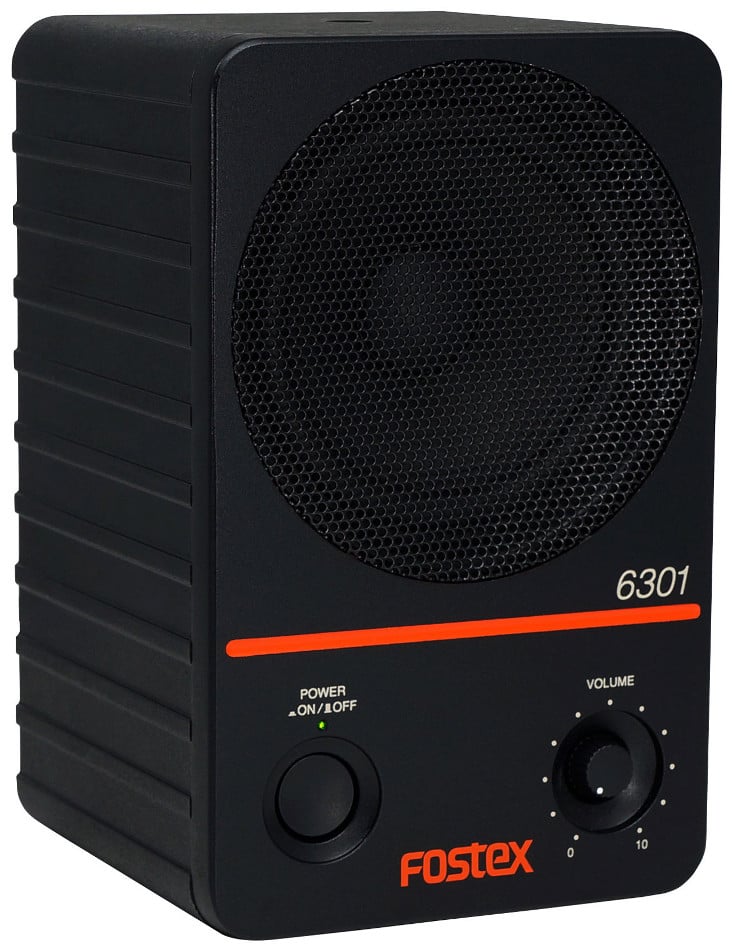

Fostex 6301NB
Unbalanced Powered Class-D Confidence Monitor

OUR PART #:  6301NB

The Fostex 6301NB has been redesigned with the latest D-class power amplifier and a driver unit featuring energy saving auto standby function.
Learn More
Our Price: $249.99
List Price: $279.99
You save 11%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Fostex 6301NB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Fostex 6301NB has been redesigned with the latest D-class power amplifier and a driver unit featuring energy saving auto standby function.

Fostex 6301NB Unbalanced Powered Class-D Confidence Monitor Features:

  • 20W D-class power amplifier for higher output level and less power consumption with no heat sink
  • Dedicated 4" full range driver for clear audio reproduction
  • Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
  • Flat panel design to avoid inadvertent power-off or level change
  • Auto Standby mode (compliant to ErP directive) for energy saving
  • Detachable IEC type power inlet with multi-voltage power handling
  • EB-6301 optional mounting bracket for wall mounting with variable angle adjustments

Fostex 6301NB Unbalanced Powered Class-D Confidence Monitor Specifications:

  • Speaker Section:
    • Enclosure type: Closed
    • Unit: 4" full-range
    • Frequency response: 70 Hz – 15 kHz
    • Sound Pressure Level: 85dB / W (1m)
    • Maximum SPL: 98dB
  • Amplifier Section:
    • Inputs:
      • Connector: 1/4" TS Phone (unbalanced)
      • Input Impedance: 10k ohm or more
    • Rated Output: 20W
    • Distortion (T.H.D.): 0.05% (1kHz / 1W output)
    • Residual Noise: -70dBV or less
    • Input Sensitivity:
      • 1/4" TS phone: -14dBV (0.2Vr.m.s.)
      • XLR: +4dBu (1.2Vr.m.s.)
      • XLR(Digital): -12dBFS
    • Auto Stand-by: Active after approx. 25 min. of continuous input lower than the threshold level
  • Dimensions: 120 mm W x 189 mm H x 120 mm D
  • Weight: 2.2 kg
  • Power Requirement: AC 100 – 240V (50/60Hz)
  • Power Consumption: 10W (less than 0.5W in stand-by mode)
