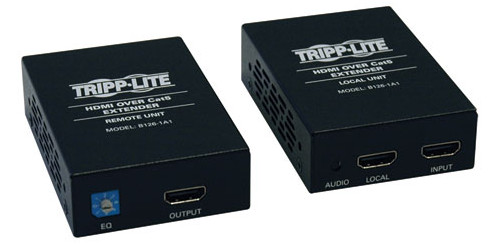

Tripp Lite B126-1A1
HDMI Over Cat5 / Cat6 Extender, Extended Range Transmitter and Receiver for Video and Audio - 1920x1200 1080p at 60Hz

OUR PART #  B126-1A1

Our Price: $202.30
List Price: $272.00
You save 26%!
In Stock

The Tripp Lite B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.

  • A 1080p (60Hz) signal can be transmitted up to 150ft.
  • A 1080i (60Hz) signal can be transmitted up to 200ft.
  • A 3D signal can be transmitted up to 125 ft.

Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit:

  • Add up to three repeaters, with a receiver unitlocated at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
  • A 1080i (60Hz) signal can be extended up to 175 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
  • A 3D signal can be extended up to 100 ft. for each repeater in theinstallation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signalcan be extended up to 400 ft..

The Tripp Lite B126-1A1 is TAA compliant.

Tripp Lite B126-1A1 Key Includes:

  • B126-1A1 local unit
  • B126-1A1 remote unit
  • Screwdriver for adjustment of Equalization
  • (x2) Mounting hardware
  • (x2) External power supply (Input: 100-240V, 50/60Hz,0.5A Output: 5V, 2A)
  • Owner's manual

Tripp Lite B126-1A1 Key Features:

  • Two piece kit includes both local transmitter and remote receiver units
  • Supports computer video resolutions up to 1920 x1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite'sN202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channelor PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • Transmitter unit features an HDMI port for the connection of a local monitor
  • Can further expand the range and number of monitors by adding B126-110 repeaters
  • Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
  • A 1080i (60Hz) signal can be extended up to 175 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
  • A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 3D signal can be extended up to 400 ft..
  • Features a built-in Equalization control for adjustment of the video image
  • Mounting hardware is included that allows theB126-110 to be rackmounted, wall mounted or pole mounted
  • Compatible with all operating systems
  • Plug and play; No drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B126-1A1 Specifications:

Physical

  • Included Mounting Accessories  Yes
  • Color  Black

Environmental

  • Operating Temperature Range  32° to 104° F (0° to 40° C)
  • Storage Temperature Range  -4° to 140° F (-20° to 60° C)
  • Relative Humidity  20 to 90%

Connections

  • Connector A  HDMI (FEMALE) (X3)
  • Connector B  RJ45 (FEMALE) (X2)

Warranty

  • Product Warranty Period (Worldwide)  1-year limited warranty

NOTE: Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Tripp Lite B126-1A1
HDMI Over Cat5 / Cat6 Extender, Extended Range Transmitter and Receiver for Video and Audio - 1920x1200 1080p at 60Hz

OUR PART #  B126-1A1

Product Information:

The Tripp Lite B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.

  • A 1080p (60Hz) signal can be transmitted up to 150ft.
  • A 1080i (60Hz) signal can be transmitted up to 200ft.
  • A 3D signal can be transmitted up to 125 ft.

Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit:

  • Add up to three repeaters, with a receiver unitlocated at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
  • A 1080i (60Hz) signal can be extended up to 175 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
  • A 3D signal can be extended up to 100 ft. for each repeater in theinstallation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signalcan be extended up to 400 ft..

The Tripp Lite B126-1A1 is TAA compliant.

Tripp Lite B126-1A1 Key Includes:

  • B126-1A1 local unit
  • B126-1A1 remote unit
  • Screwdriver for adjustment of Equalization
  • (x2) Mounting hardware
  • (x2) External power supply (Input: 100-240V, 50/60Hz,0.5A Output: 5V, 2A)
  • Owner's manual

Tripp Lite B126-1A1 Key Features:

  • Two piece kit includes both local transmitter and remote receiver units
  • Supports computer video resolutions up to 1920 x1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite'sN202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channelor PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • Transmitter unit features an HDMI port for the connection of a local monitor
  • Can further expand the range and number of monitors by adding B126-110 repeaters
  • Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
  • A 1080i (60Hz) signal can be extended up to 175 ft.for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
  • A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 3D signal can be extended up to 400 ft..
  • Features a built-in Equalization control for adjustment of the video image
  • Mounting hardware is included that allows theB126-110 to be rackmounted, wall mounted or pole mounted
  • Compatible with all operating systems
  • Plug and play; No drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B126-1A1 Specifications:

Physical

  • Included Mounting Accessories  Yes
  • Color  Black

Environmental

  • Operating Temperature Range  32° to 104° F (0° to 40° C)
  • Storage Temperature Range  -4° to 140° F (-20° to 60° C)
  • Relative Humidity  20 to 90%

Connections

  • Connector A  HDMI (FEMALE) (X3)
  • Connector B  RJ45 (FEMALE) (X2)

Warranty

  • Product Warranty Period (Worldwide)  1-year limited warranty

NOTE: Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
