Peerless SP850-V2X2
Pull-out Pivot Wall Mount For 26"-65" Flat Panel Displays

OUR PART #  SP850-V2X2

Our Price: $238.08
List Price: $376.00
You save 37%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

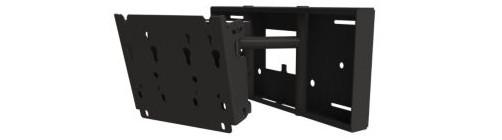

The Peerless-AV® SP850-V2X2 Pull-out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850-V2X2 acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the sturdy arm construction smoothly glides the display out 11.18" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850-V2X2 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.

Peerless-AV SP850-V2X2 Features:

  • Built in pivot up to 90° (45° in each direction) allows for adjustable viewing angles
  • Easy pull-out pivot provides quick maintenance access
  • Dedicated VESA® 200 x 200 mounting pattern
  • 2.73" (69mm) deep when retracted, pivot arms extend up to 11.18" (284mm) when extended
  • Clean profile design hides wiring and mount within the enclosed wall plate
  • IncreLok™ tilt provides tilt at 0°, 5° and 10°
  • ±1° of roll for horizontal display leveling during installation
  • Lock Key™ installation tool secures arms for display installation
  • Lock-out screw prevents unwanted extension
  • Mounts to 16" wood studs, concrete and cinder block

Peerless-AV SP850-V2X2 Specifications:

  • Minimum to Maximum Screen Size:  32" to 80"
  • VESA Pattern:  200 X 200
  • Mounting Pattern:  0mm (0")
  • Weight Capacity:  150lbs. (68kg)
  • Color:  Black
  • Finish:  Powder Coat
  • Security Features:  Security Hardware
  • Tilt:  0, 5 and 10
  • Roll:  +1 / -1
  • Distance from Wall:  2.65" - 11.18" (86mm - 302mm)
  • Product Dimensions:  21.0" x 9.19" x 2.65" - 11.18" (533mm x 233mm x 67mm - 284mm)
  • Ship Dimensions:  12" x 4.69" x 33" (304.8mm x 119.1mm x 838.2mm)
  • Shipping Weight:  25lbs. (18kg)
  • UPC Code:  735029283379

Peerless SP850-V2X2
Pull-out Pivot Wall Mount For 26"-65" Flat Panel Displays

OUR PART #  SP850-V2X2

Product Information:

The Peerless-AV® SP850-V2X2 Pull-out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850-V2X2 acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the sturdy arm construction smoothly glides the display out 11.18" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850-V2X2 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.

Peerless-AV SP850-V2X2 Features:

  • Built in pivot up to 90° (45° in each direction) allows for adjustable viewing angles
  • Easy pull-out pivot provides quick maintenance access
  • Dedicated VESA® 200 x 200 mounting pattern
  • 2.73" (69mm) deep when retracted, pivot arms extend up to 11.18" (284mm) when extended
  • Clean profile design hides wiring and mount within the enclosed wall plate
  • IncreLok™ tilt provides tilt at 0°, 5° and 10°
  • ±1° of roll for horizontal display leveling during installation
  • Lock Key™ installation tool secures arms for display installation
  • Lock-out screw prevents unwanted extension
  • Mounts to 16" wood studs, concrete and cinder block

Peerless-AV SP850-V2X2 Specifications:

  • Minimum to Maximum Screen Size:  32" to 80"
  • VESA Pattern:  200 X 200
  • Mounting Pattern:  0mm (0")
  • Weight Capacity:  150lbs. (68kg)
  • Color:  Black
  • Finish:  Powder Coat
  • Security Features:  Security Hardware
  • Tilt:  0, 5 and 10
  • Roll:  +1 / -1
  • Distance from Wall:  2.65" - 11.18" (86mm - 302mm)
  • Product Dimensions:  21.0" x 9.19" x 2.65" - 11.18" (533mm x 233mm x 67mm - 284mm)
  • Ship Dimensions:  12" x 4.69" x 33" (304.8mm x 119.1mm x 838.2mm)
  • Shipping Weight:  25lbs. (18kg)
  • UPC Code:  735029283379
