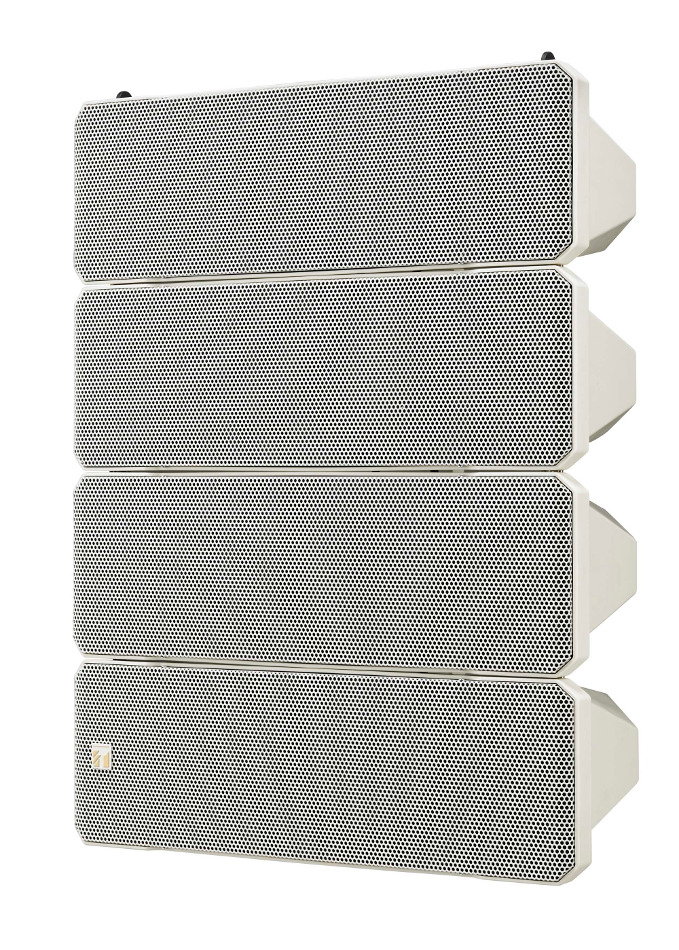

TOA HX-7W WP
750W Weatherproof Line Array Speaker System in White with (10) 5" Woofers and (4) 1" Tweeters

OUR PART #  HX7W-WP-QAM

Our Price: $1,663.57
List Price: $2,058.67
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The TOA HX-7 WP is an IPX4 rated weatherproof variable dispersion line array with SYNC-Drive waveguide technology. Thanks to its award winning enclosure design, employing four modules per unit, the HX-7 WP allows precise adjustments of sound dispersion angles of 0 - 15 - 30 and 45 degrees.

Designed to meet the needs of medium-sized venues, such as churches, auditoriums (and other performance spaces), as well as gymnasiums and sports arenas, it adds true line array performance to its already impressive range of configurations. Its improved hi-frequency driver compliment improves output, power handling, and provides enhanced intelligibility within the vocal range. Multiple HX-7's may be stacked together vertically for increased power handling and distance coverage. Like its smaller sibling, the HX-5, the HX-7 offers flexibility not available with other "single-box" speaker products.

TOA HX-7B WP Features:

  • IPX4 Weatherproof rating
  • 4 cell configuration each incorporating:
    • (2) 5" Low-frequency drivers
    • (1) Center-mounted, waveguide-loaded, 1"-exit compression driver
  • Flexible vertical angle adjustment between 0° and 45° (60° with second HX-7 and optional adapter).
  • Power handling: 750W Continuous Program @ 8 Ohms.
  • 100dB sensitivity (1W @ 1m).
  • Optional hardware for stand, wall, ceiling & flown installations.
  • Black or White & weather-proof (WP) versions available.

TOA HX-7B WP Specifications:

  • Enclosure:  Sealed type
  • Power Handling Capacity:
    • Continuous Pink Noise:  250 W (IEC60268-5: 350 W)
    • Continuous program:  750 W
  • Rated Impedance:  8 Ohms
  • Sensitivity:  100 dB (1 W, 1 m)
  • Frequency Response:  105 Hz - 20 kHz
  • Crossover Frequency:  1.7 kHz
  • Directivity Angle:
    • Horizontal:  100°
    • Vertical:  Depending on directivity angle mode
  • Speaker Component:
    • Low Frequency:  5.5" (13cm) cone type x8
    • High Frequency:  Wave front control horn with compression driver x4
  • Input Terminal:  M4 screw terminal, distancebetween barriers - 9mm (0.35")
  • Water Protection:  IPX4 (install with every speaker module tilted downard from the horizontal)
  • Finish:
    • Enclosure:  Polypropylene, black or white (HX-7B/W WP)
    • Punched net:  Surface-treated steel plate, black or white (HX-7B/W WP), rust-proof coating
  • Dimensions (WxHxD):  19.57" x 26.14" x 10.79" (497mm x 664mm x 274mm)
  • Weight:  66.14 lbs (30 kg)
  • Accessory:  Terminal Cover x1, Terminal Cover Mounting Screw x4, Rubber Packing x1
  • Optional Accessories:
    • Matching Transformer:  MT-200
    • Matching transformer Adapter:  HY-MT7
    • Speaker mounting bracket:  HY-TM7B/W-WP, HY-MS7B/W-WP, HY60DB/W-WP, HYCN7B/W-WP
Matching Transformer 200WTOA MT200 Matching Transformer 200W

70 V transformer for HX-5 speakers.

In Stock

Free Shipping Available

Our Price:$129.79List Price: $160.61You save 19%!

Ceiling Bracket Kit for HX-7 Speakers, WhiteTOA HY-CM7WSET Ceiling Bracket Kit for HX-7 Speakers, White

The TOA HY-CM7BSET is a ceiling bracket kit for HX-7 speakers in white.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$465.21List Price: $575.70You save 19%!

Speaker Stand Bracket for HX-7 SpeakersTOA HY-ST7 Speaker Stand Bracket for HX-7 Speakers

The TOA HY-ST7 is a speaker stand bracket for HX-7 speakers.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$353.95List Price: $438.02You save 19%!

T-Bracket Beam Mounting Bracket for HX-7 Weatherproof Speakers, WhiteTOA HY-TM7W-WP T-Bracket Beam Mounting Bracket for HX-7 Weatherproof Speakers, White

The TOA HY-TM7B-WP is a t-bracket beam mounting bracket in white for use with HX-7 weatherproof speakers.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$352.54List Price: $436.26You save 19%!

Speaker Rigging Frame for HX-7W and FB-150W Speakers, WhiteTOA HY-PF7W Speaker Rigging Frame for HX-7W and FB-150W Speakers, White

The HY-PF7W is used exclusively to suspend the HX-7W speaker system from the ceiling. The FB-150W Subwoofer can be suspended using this frame and the frame's supplied mounting brackets.TOA HY-PF7W Specifications: Finish: Steel plate, ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$162.82List Price: $201.49You save 19%!

3-Pack of Angle Adjustment Brackets for HX-7 Weatherproof Speakers, WhiteTOA HY-60DW-WP-3 3-Pack of Angle Adjustment Brackets for HX-7 Weatherproof Speakers, White

The TOA HY-60DW-WP-3 is a set of 3 angle adjustment brackets for HX-7 weatherproof speakers. By using three of these brackers, the directivity angle mode of the HX-7 speaker can be changed to 60° mode. It is also possible to change ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$141.57List Price: $175.19You save 19%!

Mounting Bracket for MT-200 TransformerTOA HY-MT7 Mounting Bracket for MT-200 Transformer

The TOA HY-MT7 is a bracket for mounting the MT-200 transformer to an HX-7 loudspeaker.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$93.44List Price: $115.64You save 19%!

Speaker Joining Bracket for HX-7 Weatherproof Speakers, WhiteTOA HY-CN7W-WP Speaker Joining Bracket for HX-7 Weatherproof Speakers, White

The TOA HY-CN7B-WP is a weatherproof speaker joining bracket in white for HX-7 weatherproof speakers.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$56.62List Price: $70.07You save 19%!
