Teradek TER-CUBE-105
Single Channel HD-SDI Encoder


Our Price: $1,690.00
In Stock

Recommended Accessories

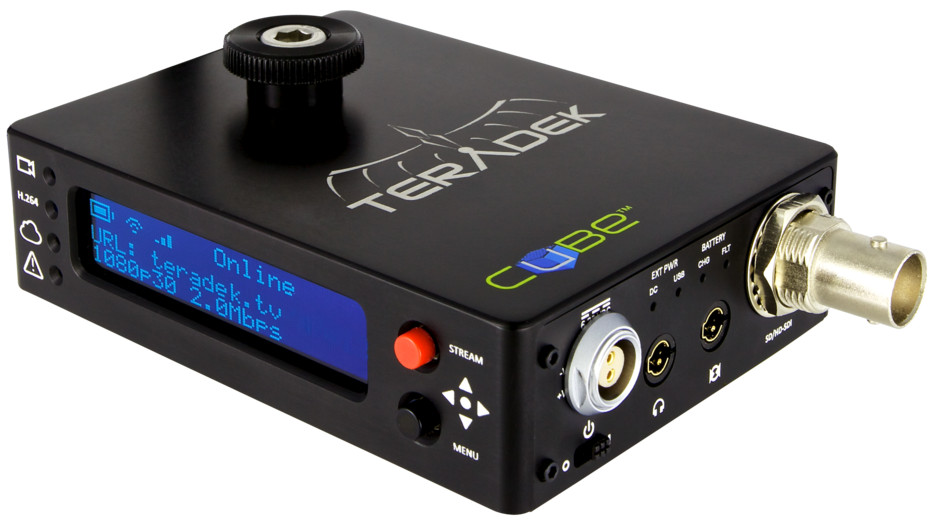

The Teradek Cube 105 is an H.264 video encoder for HD-SDI sources. This particular unit streams via Ethernet or a single 3G/4G LTE USB dongle to Teradek decoders or content delivery networks. This unit does not include an internal battery or WiFi.

The Cube 105 includes all of the same great features of the original Cube such as a low power compact aluminum chassis, comprehensive transport protocol support (RTP / RTSP / RTMP / MPEG-TS*), and compatibility with any streaming video platform.

*MPEG-TS sold separately

What's included

  • 110-240V AC Power Adapter
  • SDI Cable
  • Ethernet Cable
  • Hot Shoe Adapter with Thumbscrew
  • 1-Year Warranty

Teradek Cube 105 I/O:

  • HD-SDI Video Input
  • Hot Shoe Mount
  • OLED Display
  • 2 Pin Lemo Power Input
  • microSD storage
  • 10/100BASE-T Ethernet
  • USB 2.0 host port
  • Audio:  Analog Line or Mic in, Headphone output

Teradek Cube 105 Specifications:

Video Inputs


Supported Resolutions

  • 1080i 50/59.94/60
  • 1080p 23.98/24/25/30
  • 1080PsF 23.98/24/25
  • 720p 50/59.94/60
  • 576i
  • 480i

Video Codec

  • Compression Algorithm: Baseline, Main and High Profile H.264
  • Main and Baseline profiles
  • Bit Rate: 250 Kbps to 10 Mbps
  • Built in Video Scaler and Deinterlacer

Video Streaming Support

  • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
  • Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (Optional paid license), Zixi (Optional paid license)


  • Audio Compression: AAC-LC, MPEG Layer 2
  • Embedded Audio Input
  • Analog Line or Mic in, adjustable gain
  • Headphone output, adjustable volume


  • Dimensions: 2.5"W x 3.5"D x .9"H
  • Weight: 8oz.


  • Feature-rich WebUI for configuration and control
  • OLED LCD Display with joystick Navigation buttons
  • On/Off and Reset Switch
  • Micro SD
  • Powered USB 2.0 host port


  • Ethernet: 10/100BASE-T
  • USB Modem support**


  • 2 Pin Lemo Power input
  • USB Charging
  • Nominal Power Consumption: 3W
  • Nominal Power Consumption while Charging : up to 10W
  • Auxiliary Power Input: 6-28V DC

*Currently supporting RED One, RED Epic, Arri Alexa and select Sony and Canon cameras. Please contact your Sales Pro to confirm support for your camera first.
**Contact your Sales Pro for more information.
