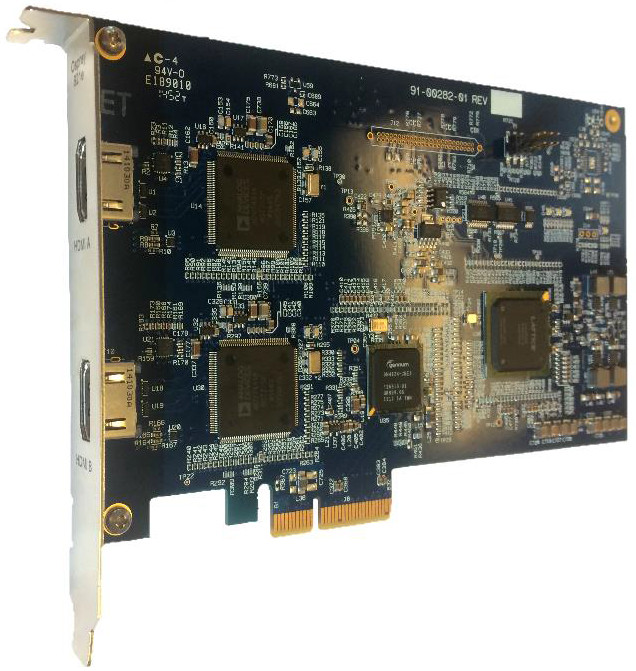

Osprey Video 821e
Dual 3G HD HDMI Input Video Capture Card with Embedded Audio and SimulStream

OUR PART #  95-00488

Our Price: $899.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Osprey 821e is Dual 3G HD HDMI input video capture card with embedded audio and SimulStream, which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

Signal Loss Insertion - In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

An Osprey SDK is also available to allow developers to take full advantage of the Osprey 800e driver capabilities. Contact your Sales Pro or visit Osprey's website for further information.

Osprey 821e Specifications:

  • Description: Dual 3G HD HDMI Input Video Capture Card
  • Format:
    • PCI Express (x4):
    • Slots: x4, x8, or x16
    • PCIe 1.1
  • Video Input: 2x HDMI (non HDCP)
  • Video Connector: 2x HDMI
  • Video Pre-Processing:
    • VBI/VANC closed-caption extraction/on-screen rendering
    • Logo/bitmap overlay
    • Scaling, cropping, de-interlacing and inverse telecine
    • ProcAmp control
    • Vector Scope and Lumi Scope
  • Video Modes:
    • 1080i 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30, 50, 60
    • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    • 720 x 480 29.97, 30/p
    • 720 x 576 25, 50/p
  • Audio Input: HDMI (4 channels LCPM)
  • Adapter: None
  • Driver Support: Microsoft® DirectShow® API, Linux
  • Dimensions: 6.6" L x 4.38" H (16.76 x 11.13 cm)
  • Weight: Approx. 113 g
  • Power Consumption: 11.5 W
  • Temperature Range:
    • Operating:  0° to 40° C
    • Non-Operating: -40° to +75° C
  • Relative Humidity:
    • Operating: Between 5 % and 80 % (non-condensing)
    • Non-Operating: 95 % RH (non-condensing); gradient 30% per hour
  • Altitude Range:
    • Operating: 0 to 3,048 meters (10,000 feet)
    • Non-Operating: 0 to 15,240 meters (50,000 feet)
  • System recommendations: High-quality video capture requires a PCIe bus with direct access to the CPU
  • Warranty: 1 year limited hardware warranty

Osprey Video 821e
Dual 3G HD HDMI Input Video Capture Card with Embedded Audio and SimulStream

OUR PART #  95-00488

Product Videos:

Product Information:

The Osprey 821e is Dual 3G HD HDMI input video capture card with embedded audio and SimulStream, which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

Signal Loss Insertion - In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

An Osprey SDK is also available to allow developers to take full advantage of the Osprey 800e driver capabilities. Contact your Sales Pro or visit Osprey's website for further information.

Osprey 821e Specifications:

  • Description: Dual 3G HD HDMI Input Video Capture Card
  • Format:
    • PCI Express (x4):
    • Slots: x4, x8, or x16
    • PCIe 1.1
  • Video Input: 2x HDMI (non HDCP)
  • Video Connector: 2x HDMI
  • Video Pre-Processing:
    • VBI/VANC closed-caption extraction/on-screen rendering
    • Logo/bitmap overlay
    • Scaling, cropping, de-interlacing and inverse telecine
    • ProcAmp control
    • Vector Scope and Lumi Scope
  • Video Modes:
    • 1080i 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30, 50, 60
    • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    • 720 x 480 29.97, 30/p
    • 720 x 576 25, 50/p
  • Audio Input: HDMI (4 channels LCPM)
  • Adapter: None
  • Driver Support: Microsoft® DirectShow® API, Linux
  • Dimensions: 6.6" L x 4.38" H (16.76 x 11.13 cm)
  • Weight: Approx. 113 g
  • Power Consumption: 11.5 W
  • Temperature Range:
    • Operating:  0° to 40° C
    • Non-Operating: -40° to +75° C
  • Relative Humidity:
    • Operating: Between 5 % and 80 % (non-condensing)
    • Non-Operating: 95 % RH (non-condensing); gradient 30% per hour
  • Altitude Range:
    • Operating: 0 to 3,048 meters (10,000 feet)
    • Non-Operating: 0 to 15,240 meters (50,000 feet)
  • System recommendations: High-quality video capture requires a PCIe bus with direct access to the CPU
  • Warranty: 1 year limited hardware warranty
