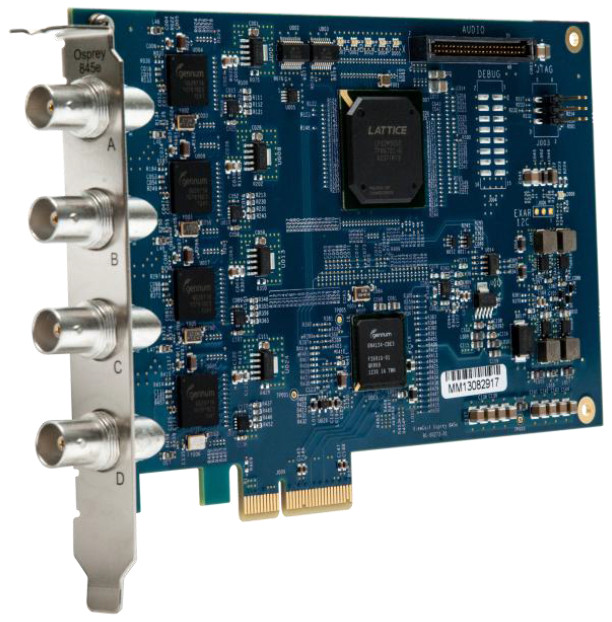

Osprey Video 845e
Four Input SDI or DVB-ASI Video Capture Card with SimulStream

OUR PART #  95-00273

Our Price: $2,055.00
In Stock

The Osprey 845e is a Four Input SDI or DVB-ASI Video Capture Card with SimulStream, which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

All inputs are clock independent, which allows for different input formats on each input.

Embedded SDI audio - Four stereo pairs are available per input.

Signal Loss Insertion - In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

An Osprey SDK is also available to allow developers to take full advantage of the Osprey 800e driver capabilities. Contact your Sales Pro or visit Osprey's website for further information.

The Osprey 800a audio input card is a separate expansion board (sold separately) that adds two pairs of balanced audio via XLR connectors along with an two additional pairs that can be configured as either unbalanced (RCA), AES/EBU or SPDIF (RCA).

Osprey 845e Specifications:

  • Description: Four channel SDI HD/SD DVB-ASI
  • Format:
    • PCI Express (x 4):
    • Slots: x 4, x 8, or x 16
    • PCIe 1.1
  • Video Pre-Processing:
    • VBI/VANC closed-caption extraction/on-screen rendering
    • Logo/bitmap overlay
    • Scaling, cropping, de-interlacing and inverse telecine
    • ProcAmp control
    • Vector Scope and Luma Scope
  • Video Input:
    • 3G SMPTE 424M x2
    • HD SMPTE 292M x4
    • SD SMPTE 259M x4
    • DVB-ASI (MPTS/SPTS) x4 (Windows only)
  • Video Connector: SDI (BNC x4)
  • Optional Audio Features:
    • Optional: 2x stereo balanced XLR*
    • Optional: 2x stereo balanced XLR or AES/EBU or SPDIF*
      *with available Osprey 800a input card (sold separately)
  • Video Modes:
    • 1080i 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30
    • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    • 720 x 480 29.97, 30/i (NTSC)
    • 720 x 576 25/i (PAL)
    • 720 x 576 25, 50/p
    • 3G SDI: 1080p 50, 59.94, 60
  • Audio Input: Embedded SDI (4 stereo pairs per SDI input)
  • Driver Support: Microsoft® DirectShow® API, Linux
  • Dimensions: 6.6" L x 4.38" H (16.76 x 11.13 cm)
    Full height/half length
  • Weight: Approx. 122 g
  • Power Consumption: 9.36W
  • Temperature Range
    • Operating: 0° to 40° C
    • Non-Operating: -40° to +75° C
  • Relative Humidity:
    • Operating: Between 5 % and 80 % (non-condensing)
    • Non-Operating: 95 % RH (non-condensing); gradient 30% per hour
  • Altitude Range:
    • Operating: 0 to 3,048 meters (10,000 feet)
    • Non-Operating: 0 to 15,240 meters (50,000 feet)
  • System recommendations: High-quality video capture requires a PCIe bus with direct access to the CPU
  • Warranty: 1 year limited hardware warranty
