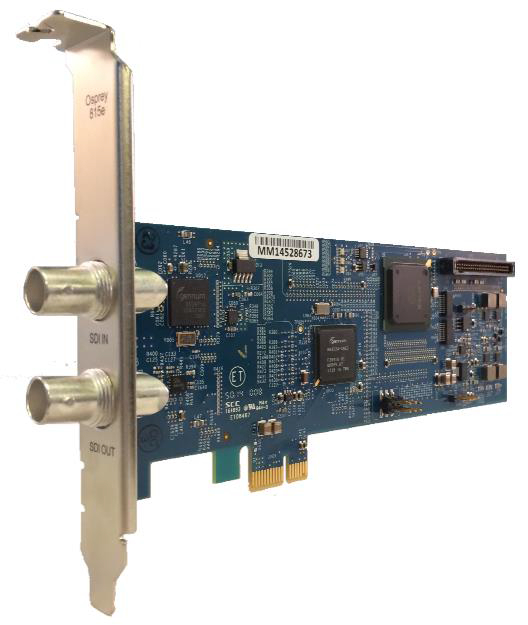

Osprey Video 815e
Single Input SDI or DVB-ASI Video Capture Card

OUR PART #  95-00486

Our Price: $1,196.00
In Stock

The Osprey 815e is ideal for high-density applications and features a single input plus a pass through output. This card accepts three different input formats – HD SDI, SD SDI, and DVB-ASI (Windows only).

Osprey SimulStream®
A standard feature on all Osprey 800 series cards, SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays facilitating simultaneous deliver to multiple applications.

Signal Loss
In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones,. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

Osprey 815e Specifications:

  • Description: One channel SDI HD/SD DVB-ASI with Loop-Out
  • Format:
    • PCI Express (x 1): Slots x1, x4, x8, x16
    • PCIe 1.1
  • Video Input:
    • HD SMPTE 292M
    • SD SMPTE 259M
    • DVB-ASI
  • Video Output: Uncompressed pass-through of input signal
  • Video Connector: SDI (BNC) x2
  • Video Modes:
    • 1080i 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30
    • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    • 720x480 29.97, 30/i (NTSC)
    • 720x576 25/i (PAL)
    • 720x576 25, 50/p
  • Available Drivers: Microsoft Windows, Linux
  • Dimensions: 6.60" L x 2.71" H (16.76 cm L x 6.88 cm H)
  • Weight: ~ 70 g
  • Power Consumption: 6.3 W
  • Environment:
    • Operating Temperature Range: 0° to 40° C
    • Storage Temperature Range: -40° to +75°C
    • Relative Humidity Operating: Between 5% and 80% (noncondensing)
    • Relative Humidity Non-Operating: 95% RH (noncondensing); gradient 30% per hour
