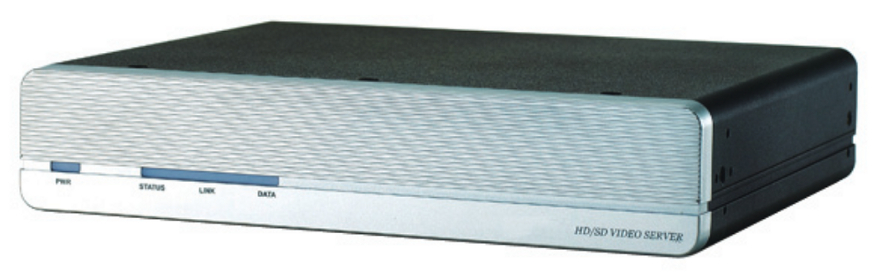

Marshall Electronics VS-104-3GSDI
1080p60 Full HD Video Encoder-Decoder with Stereo Audio

OUR PART #:  VS-104-3GSDI

The VS-104-3GSDI is an IP video solution from Marshall Electronics that is a 1080p/60 Full HD Video Encoder/Decoder with Stereo Embedded or Analog Audio.
Learn More
Our Price: $3,195.15
List Price: $3,759.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics VS-104-3GSDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VS-104-3GSDI is an IP video solution from Marshall Electronics that is a 1080p/60 Full HD Video Encoder/Decoder with Stereo Embedded or Analog Audio. This item will support: 3GSDI, HDSDI, SDI, HDMI and CVBS formats; is powered by PoE+ or 12VDC and will perform real-time transmission of video and embedded audio over standard IP networks and the internet. The VS-104-3GSDI delivers audio and HD video in real time, enabling live events to be streamed to viewers in full HD. This encoder can be used by businesses, broadcast studios, schools, and houses of worship to stream content to a worldwide audience over the internet.

Marshall VS-104-3GSDI Features:

  • Max. 60fps at 1920 x 1080
  • Quad Streaming (H.264/H.264, H.264/MJPEG)
  • MPEG2-TS Supported
  • Two Way Audio Communication (G.711, AAC)
  • 3GSDI, HDSDI, SDI, HDMI, and CVBS I/O Supported
  • Embedded Audio is supported in 3GSDI, HDSDI, SDI and HDMI, Stereo Analog is also provided
  • Over 30 Types of PTZ Protocol Supported
  • The VS-104-3GSDI can be used as either a Encoder or Decoder (User Selectable)
  • PoE+ (Power Over Ethernet 802.3af)
  • USB Recording
  • Watchdog for System Recovery
  • RS-232, RS-422/485 Communication
  • Motion Detection
  • 2CH Sensor Input / 2CH Alarm Output
  • Adjustable Video Bitrate: 32Kbps ~ 16Mbps for Primary Stream, 32Kbps ~ 4Mbps for Secondary Stream (3 available)
  • Adjustable Video Data Bandwidth: 2,400bps ~ 115,200bps
  • Adjustable Serial Data I/O, 2,400bps~115,200bps supplied
  • Various Protocols: TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, SNMP

Marshall VS-104-3GSDI Specifications:

  • System:
    • System Mode: Encoder / Decoder
  • Network:
    • Interface: 2 x Ethernet 10/100/1000Base-T (RJ-45)
    • Protocol: IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS
    • Security: Password protection, IP address filtering, HTTPS encryption
    • Application Programming Interface: MEI Protocol/SDK, ONVIF, PSIA
  • Video:
    • Compression: H.264, MJPEG
    • Framerate: Max 60fps @ 1920x1080
    • Bitrate:
      • Primary: 32Kbps ~ 16Mbps,
      • Secondary: 32Kbps ~ 4Mbps
    • Resolution: 352x240 ~ 1920x1080
    • Streaming:
      • Primary: H.264
      • Secondary x 3: H.264/MJPEG
    • Burn-in OSD: Multi-lingual
    • Input/Output:
      • 1 x HDMI (Type A), Input/Output configurable
      • 1 x Composite (BNC), Input/Output configurable
      • 1 x 3G-SDI (BNC), Input/Output configurable
  • Audio:
    • Compression: G.711 / AAC
    • Sample Rate:  G.711: 8KHz, AAC: 32/44.1/48KHz
    • Bitrate:  G.711: 64Kbps, AAC: 64Kbps/128Kbps
    • Streaming: Full duplex
    • Input: 1 x Line-In (stereo, mini-stereo type)
    • Output: 1 x Line-Out (stereo, mini-stereo type)
  • General:
    • Event sources: Motion, Sensor input, Video loss, Client disconnection Event actions: Notification (E-mail), FTP, PTZ preset, Alarm control, Recording
    • Housing: Aluminum
    • Certifications: CE, FCC, KC, ROHS
    • External devices:
      • 2 x Sensor-In (dry contact, NO/NC)
      • 2 x Alarm-Out (dry contact, NO)
      • 1 x RS-232 port
      • 1 x RS-422/485 port
      • 1 x Buzzer (88dB min)
    • Edge storage: 2 x USB 2.0 port
    • Power supply: Min DC12V 5A, PoE+ (Power over Ethernet): 802.3at
    • Power Consumption: DC12V/PoE+ / Max:13.4V
    • Operating Temp.: -10°C ~ 50°C / 14°F ~ 122°F
    • Dimensions: 215mm(W) x 184.2mm(L) x 44mm(H) / 8.47in(W) x 7.25in(L) x 1.73in(H)
    • Weight: 940g / 2.07 lbs.
