Dukane WMIC2B
iHear 2.4GHz Wireless System with Pole Mount Speaker/Receiver, Bodypack Transmitter and Lapel Microphone

OUR PART #:  WMIC2B

The Dukane WMIC2B system provides an instructor with added voice power to be heard by everyone in a classroom setting, which helps improve retention and learning.
Learn More
Our Price: $299.00
List Price: $499.00
You save 40%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Dukane WMIC2B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Dukane WMIC2B system provides an instructor with added voice power to be heard by everyone in a classroom setting, which helps improve retention and learning.

This system consists of a small, lightweight lanyard-held transmitter with an attachable lapel microphone that sends the voice signal via a digital encoded bit stream at high speed to the receiver. The receiver converts the digital bitstream back to regular audio output sent to a 30W stereo audio amplifier and speakers. This results in a conventional sound enhancement or voice augementation system. There are 20 channels available from 2.4GHz to 2.480GHz for operation.

Dukane WMIC2B Includes:

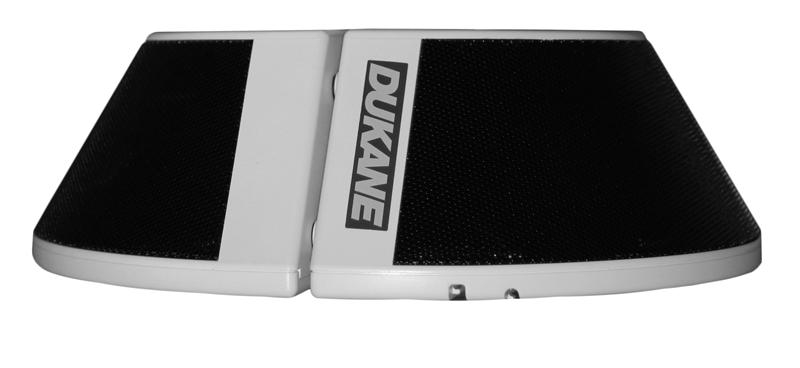

  • Pole mounted speaker/receiver unit with onboard amplifier
  • Clip-on lapel microphone
  • Miniature transmitter
  • Lanyard
  • Charging adapter

Dukane WMIC2B Features:

  • Lightweight transmitter on lanyard with volume adjust
  • Range of 80 feet without being blocked using RF at 2.4GHz (same as WiFi)
  • Will automatically select any of 20 separate channels
  • Comes complete with lapel mic, transmitter, and speaker unit
  • Uses a rechargeable Li-ion battery for 8 plus hours of operation
  • Speaker unit can be easily attached to projector pole mount
  • 30 Watt output and 4 selectable modes for audio output priority
  • Optional wall mounting for speakers available (sold separately)

Dukane WMIC2B Specifications:

  • Speaker:
    • Amplifier:  Class 'D'
    • Wattage Output:  30 Watts
    • Speaker Spec:  2.75" 10W/8 Ohm x2 full-range high efficiency speakers with echo tube design
    • SPL:  92dB/W
    • Frequency Response:  50 Hz - 20 kHz
    • Dimensions:  254mm x 250mm x 80mm
    • Weight:  3.3 lbs (1.5 kg)
    • Color:  White/black steel mesh
    • Power Supply:  DC12V/2A (Power adapter)
    • Audio In:  3.5mm to 3.5 L-type phone jack
    • Safety:  CE, FCC, BSMI, CCC
    • Audio Auto Off:  60 seconds
  • Wireless Module:
    • Receiver:
      • Voltage Range:  3.6 - 5V
      • Current:  < 50 mA
      • Frequency of Operation:  2.4GHz to 2.483GHz (20 channels)
      • Channel:  Auto seek and lock on one of 20 channels
      • Frequency Match:  GFSK
      • Sensitivity:  -85dBm (Min)
      • Output Resistance:  32 Ohms
      • Output Voltage:  2Vp-p
      • Priority Audio (4 Modes):  MIC only, MIC and AUX mixed, MIC priority, or AUX priority
      • Audio Shift:  < 1.5ms
      • Dynamic Range @ 1 kHz:  81dB
      • Separating Range @ 1 kHz:  90dB
      • Distortion THD:  0.10%
      • Setup Distance:  Less than 7 ft (2 m)
      • Operating Distance:  95 ft (30 m) free space
      • Battery Type:  Lithium battery inside
      • Battery Time:  8hr min use
      • Battery Charge Time:  4hr from exhausted to full charge
    • Transmitter:
      • Voltage Range:  3.6 - 5V
      • Current:  < 50 mA
      • Frequency of Operation:  2.4GHz to 2.483GHz (20 channels)
      • Channel:  Auto seek and lock on one of 20 channels
      • Frequency Match:  GFSK
      • Transmitter Power:  10 mW
      • Input Resistance:  10 kOhms
      • Input Voltage:  2.8Vp-p (Max)
      • Power System:  DC 5V (USB charge wire)
      • Audio In:  MIC in / Audio in
      • Priority Audio (4 Modes):  MIC only, MIC and AUX mixed, MIC priority, or AUX priority
      • Audio Shift:  < 1.5ms
      • Dynamic Range @ 1 kHz:  81dB
      • Separating Range @ 1 kHz:  90dB
      • Distortion THD:  0.10%
      • Setup Distance:  Less than 7 ft (2 m)
      • Operating Distance:  95 ft (30 m) free space
      • Battery Type:  Lithium battery inside
      • Battery Time:  8hr min use
      • Battery Charge Time:  4hr from exhausted to full charge
  • Microphone:
    • Microphone Type:  Lapel clip-on type
    • Sensitivity:  -37dB (f=1kHz, SPL=1Pa, 0dB=1V/Pa)
    • Signal to Noise Ratio:  70dB
    • Maximum Input SPL:  120dB (f=1kHz, THD<1%)
