MuxLab 500701-2PK
HD-SDI Balun 2-Pack

OUR PART #:  MUX-500701-2PK

Our Price: $95.36
List Price: $126.00
You save 24%!
Be the first to review.
MuxLab 500701-2PK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

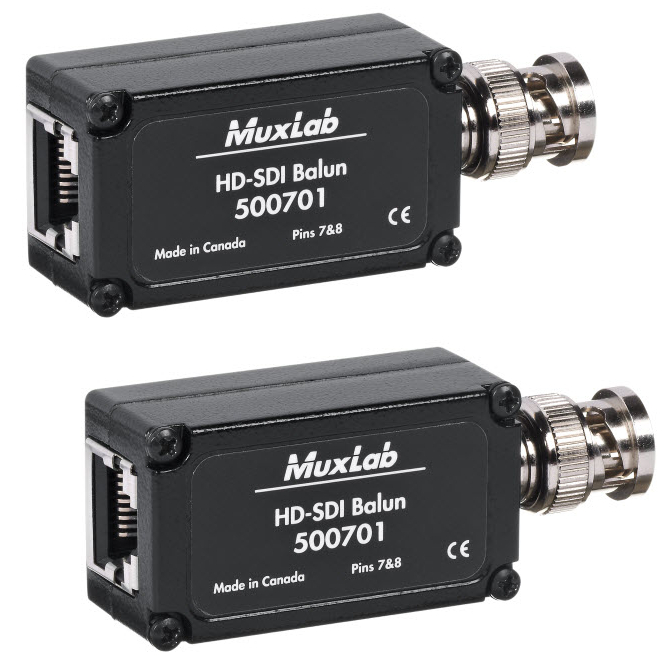

The 500701-2PK from MuxLab is an HD-SDI Balun (in a 2-pack) that allows one HD-SDI signal to be transmitted up to 150 ft (45m) via Cat5e cable at HD resolution in a point-to-point configuration. The HD-SDI Balun supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.

Applications for this unit include: Video production, broadcasting, HD camcorder, studio-to-studio, post-production, live events, medical imaging displays, mobile video, HD/SD routing, HD-CCTV, medical imaging.

MuxLab 500701-2PK Features:

  • Supports SD, HD and 3G resolutions
  • Up to 150 ft (45m) via Cat5e cable @ HD
  • Up to 400 ft (120m) via Cat5e cable @ SD
  • Supports Cat5e/6 cable
  • Cast aluminum enclosure for EMI/RFI shielding

MuxLab 500701-2PK Specifications:

  • Environment: SDI single link: SD, HD & 3G.
  • Devices: Camcorders, video processors, monitors, projectors, scan converters, HD-CCTV cameras/DVR and any equipment supporting HD-SDI single link
  • Standard supported:
    • SD: SMPTE 259M (270Mb/s)
    • HD: SMPTE 292M
    • 3G: SMPTE 424M
  • Speed: 270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection).
  • Insertion Loss per balun: <6 dB: 5 – 1500 MHz.
  • Connectors:
    • One BNC 75 ohm male
    • One RJ45S for Cat 5e/6 unshielded or shielded twisted pair
  • Maximum Distance Cat5e/6:
    • SD: Up to 110m (375ft) using Cat 5 UTP, up to 120m (400ft) for CAT 5E UTP, up to 150m (500ft) for CAT 6 UTP
    • HD: Up to 30m (100ft) using Cat 5 UTP, up to 45m (150ft) for CAT 5E or 6 UTP
    • 3G: Up to 15m (50ft) for CAT 6 UTP only

NOTE: Maximum distance is function of the receiving equipment equalizer.

  • RJ45 Pin Configuration: RJ45 Link
  • NOTE: UseEIA/TIA 568A or 586B straight-through wiring:
  • RJ45 Link
  • Pin 7 (R) Pin 8 (T)
  • Cables: One straight Cat 5e/6 or better twisted pair cables required
  • Temperature: Operating: 20° to 50°C Storage: -30° to 70°C Humidity: Up to95% non-cond.
  • Enclosure: Cast aluminium
  • Dimensions (LxHxW): 0.8” x 1.85” x 1.05” (2 x 2.6 x 4.7cm) + extended BNC connector.
  • Weight: 1.5 oz (44 gms)
  • Compliance:
    • Regulatory: FCC, CE, RoHS
  • Flammability: 94V0
  • Warranty: Lifetime
