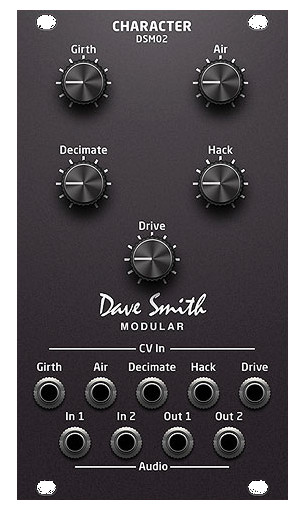

Dave Smith Instruments DSM02
Character Module


Dave Smith strikes again with a new offering for modular synthesizer users — the DSM02 Character Module.
Learn More
Our Price: $259.00
List Price: $279.00
You save 7%!
Write the first review.
Dave Smith Instruments DSM02
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Dave Smith strikes again with a new offering for modular synthesizer users — the DSM02 Character Module. It’s a sound designer’s tool kit of five unique digital effects for shaping, twisting, and mangling sound in subtle and not-so-subtle ways. These effects, Girth, Air, Decimate, Hack, and Drive form the Character section of DSI’s acclaimed Prophet 12 and Pro 2 synthesizers and contribute to their distinctive tone in a big way.

The DSM02 is a 14 HP Eurorack-format module with interconnections made using 3.5 mm phone jacks. Two independent audio inputs and two independent audio outputs with shared control allow mono or stereo operation. A 24-bit, 96 kHz resolution digital signal path provides uncompromising signal fidelity.

If you’re looking to take your modular system into new sonic territory, the DSM02 may be just the ticket. It’s a fast and affordable way to inject your system with some serious mojo from two of the world’s most in-demand synths.

Dave Smith Instruments DSM02 Includes:

  • Mounting screws
  • Ribbon cable for power connection
  • Power jumper for selecting Local or System power

Dave Smith Instruments DSM02 Features:

  • “Girth” provides low-frequency harmonic enhancementfor adding weight and density.
  • “Air” provides high-frequency harmonic enhancementfor adding definition and presence.
  • “Decimate” performs sample rate reduction for addinglo-fi grunge.
  • “Hack” is a bit crusher capable of trashing anotherwise clean signal nearly beyond recognition.
  • “Drive” adds overdrive and saturation, with warmth at one end of the knoband harmonic overload at the other.

Dave Smith Instruments DSM02 Specifications:

  • In/Out:
    • 1 CV In – Girth (3.5 mm jack) Range: 0 to 10V
    • 1 CV In – Air (3.5 mm jack) Range: 0 to 10V
    • 1 CV In – Decimate (3.5 mm jack) Range: 0 to 10V
    • 1 CV In – Hack (3.5 mm jack) Range: 0 to 10V
    • 1 CV In – Drive (3.5 mm jack) Range: 0 to 10V
    • 2 Audio In (3.5 mm jack) +/-5V or 10V p-p
    • 2 Audio Out (3.5 mm jack)
  • Power:
    • Internal power connector (ribbon cable included)
    • Power select: Local 5V or System 5V (jumper included)
    • Current draw at Local 5V: +12V @ 150mA, -12V @ 20mA
    • Current draw at System 5V: +12V @ 20mA, -12V @ 20mA, +5V @ 150mA
  • Physical:
    • Dimensions (WxD): 2.79" x 5.06" (70.8 mm x 128.5 mm)
    • Width: 14 HP
    • Depth (measured from back of panel with power cable installed): 1.18" (30.1 mm)
