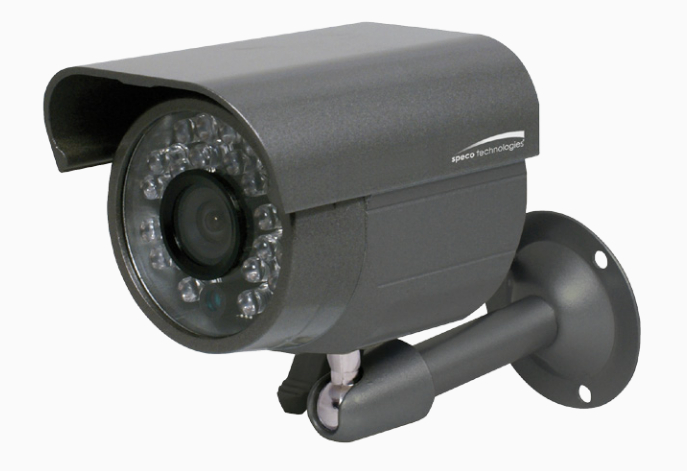

Speco Technologies CVC617H
960H Weather Resistant IR Bullet Camera


Our Price: $332.30
Usually ships in 7-14 business days.
Need it sooner? Call us!

Speco Technologies offers the CVC617H - an analog 960H Weather Resistant IR Bullet Camera. This version comes with a 4.3mm fixed lens that operates with a 1/3" 960H color CCD. The CVC617H has an IR range of 65 feet, operates in Day or Night, is IP66 compliant and all contained in a dark grey housing that comes with mounting bracket included.

Speco Technologies CVC617H Features:

  • 1/3” 960H color CCD
  • 700 TV lines of resolution
  • IR Range: 65’ (depending on scene reflection)
  • Weather resistant operation
  • IP66 compliant
  • 12VDC operation
  • Mounting bracket included

Speco Technologies CVC617H Specifications:

  • Image Sensor: 1/3” 960H color CCD
  • Resolution: 700 TV lines
  • Minimum Illumination: 0.00 lux (IR LED on)
  • Effective Pixels: 976 (H) x 494 (V)
  • Total Pixels: 1020 (H) x 508 (V)
  • Number of IR LEDs: 24
  • IR Range: 65’ (depending on scene reflection)
  • Scanning System: 2:1 interlaced
  • Synchronization: Internal
  • S/N Ratio: 48dB
  • Video Output: CVBS: 1.0Vp-p, 75 ohms
  • Electronic Shutter Speed: 1/60 sec. - 1/100,000 sec.
  • Backlight Compensation: Automatic
  • AGC: Automatic
  • Power Consumption: 120mA (IR LED off), 350mA (IR LED on)
  • Power Supply: 12VDC (power supply not included)
  • Operating Temperature: 14° F - 120° F
  • Dimensions: 2.36” (Dia.) x 3.36” (L)
  • Weight: 12.8 oz.
  • Included in Package: Mounting bracket with screws
  • Optional Accessory:
    • PSW5: 12VDC Power Supply
